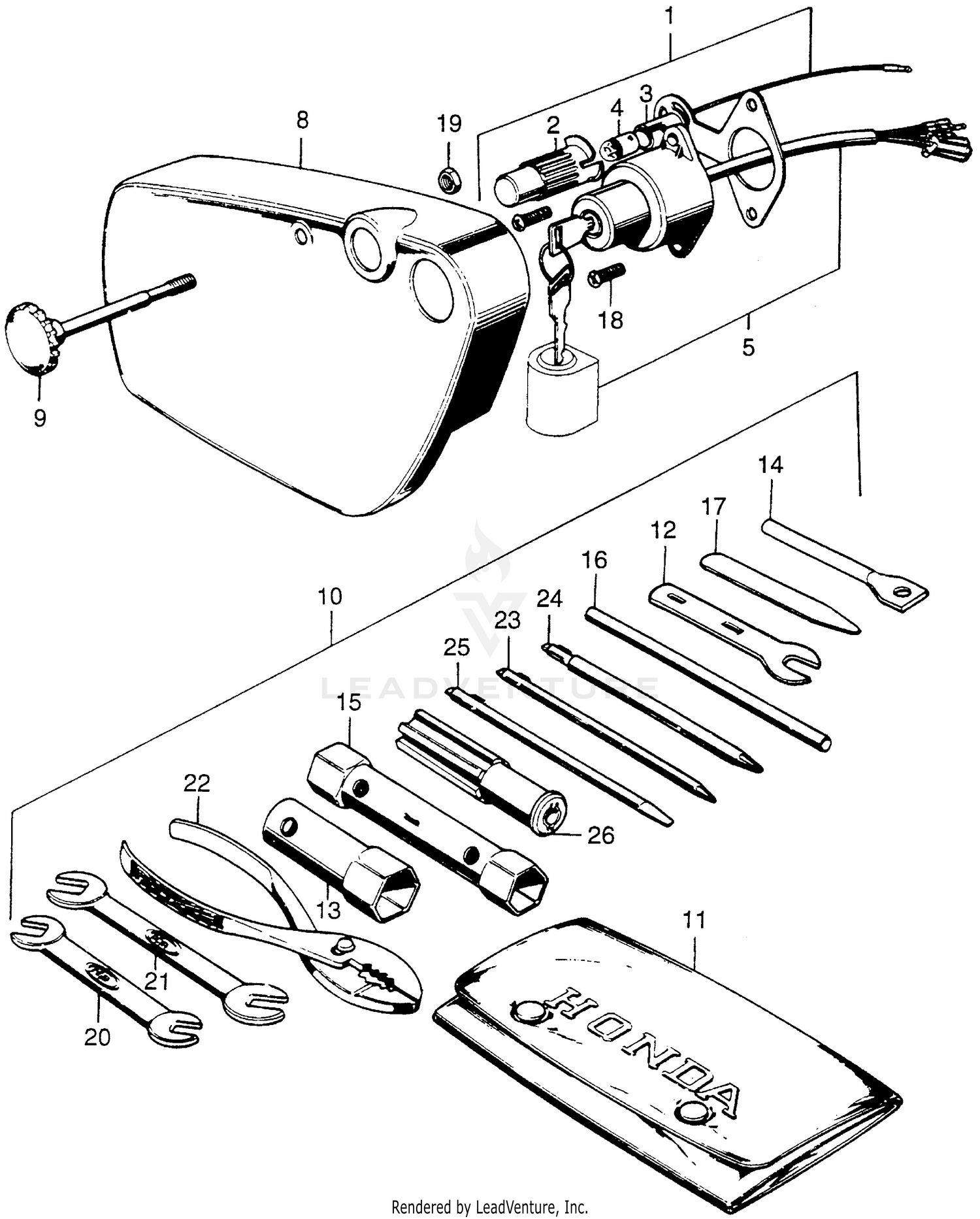

Key Lamp + Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY., KEY (NOT AVAILABLE)
33150-087-000
|
$18.83 | ||
|
Unavailable |
|||
|
#2
LENS, KEY LAMP (NOT AVAILABLE)
33151-046-751
|
$3.83 | ||
|
Unavailable |
|||
|
#3
BASE, KEY LAMP
33152-087-000
|
$10.73 | ||
|
Unavailable |
|||
|
#4
BULB, DASH (6V3W) (STANLEY)
34902-202-000
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SWITCH KIT, MAIN (NOT AVAILABLE)
35010-087-761
|
$151.63 | ||
|
Unavailable |
|||
|
#8
BOX, TOOL *R8* (BRIGHT RED) (NOT AVAILABLE)
83500-087-000AW
|
$31.58 | ||
|
Unavailable |
|||
|
#8
BOX, TOOL *G14* (PINE GREEN)
83500-087-000BA
|
$28.44 | ||
|
Unavailable |
|||
|
#8
BOX, TOOL *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)
83500-087-000DY
|
$25.96 | ||
|
Unavailable |
|||
|
#8
BOX, TOOL *Y3L* (IVORY WHITE) (NOT AVAILABLE)
83500-087-000XL
|
$31.61 | ||
|
Unavailable |
|||
|
#9
LATCH, TOOL BOX *NH1* (BLACK)
83550-001-000B
Superseded by 83550-001-000ZA
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
LATCH, TOOL BOX *NH1* (BLACK)
83550-001-000ZA
|
$4.42 | ||
|
Unavailable |
|||
|
#10
TOOL SET (NOT AVAILABLE)
89010-041-010
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAG, TOOL (NOT AVAILABLE)
89101-011-000
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPANNER (9MM) (N/A: SEE ASSEMBLY)
89203-200-000
|
$0.74 | ||
|
Unavailable |
|||
|
#13
WRENCH, BOX (23MM) (NOT AVAILABLE)
89214-041-000
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
WRENCH, SOCKET (3MM)
89215-001-000
|
|||
|
Unavailable |
|||
|
#14
WRENCH, SOCKET (3MM) (NOT AVAILABLE)
89215-107-000
|
$1.45 | ||
|
Unavailable |
|||
|
#15
WRENCH, SPARK PLUG
89216-041-010
|
|||
|
Unavailable |
|||
|
#15
WRENCH, BOX (P16X17)
99004-16170
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR A, HANDLE
89217-028-000
Superseded by 99005-01000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR A, HANDLE
99005-01000
|
$1.28 | ||
|
Unavailable |
|||
|
#17
GAUGE, TAPPET CLEARANCE
89231-001-000
|
$0.49 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (6X12)
93500-06012
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (6X12)
93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (6X12)
93500-06012-00
Superseded by 93500-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
WRENCH (8X12) (OPEN END)
99001-08120
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
WRENCH (10X14) (OPEN END)
99001-10140
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLIERS (135) (KOWA)
99002-13500
Superseded by 89210-GBJ-J10
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREWDRIVER 1, PHILLIPS (NO.2)
99003-10000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREWDRIVER 2, PHILLIPS (NO.3)
99003-20000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREWDRIVER 3, STRAIGHT SLOT (NO.2)
99003-30000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GRIP
99003-50000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
