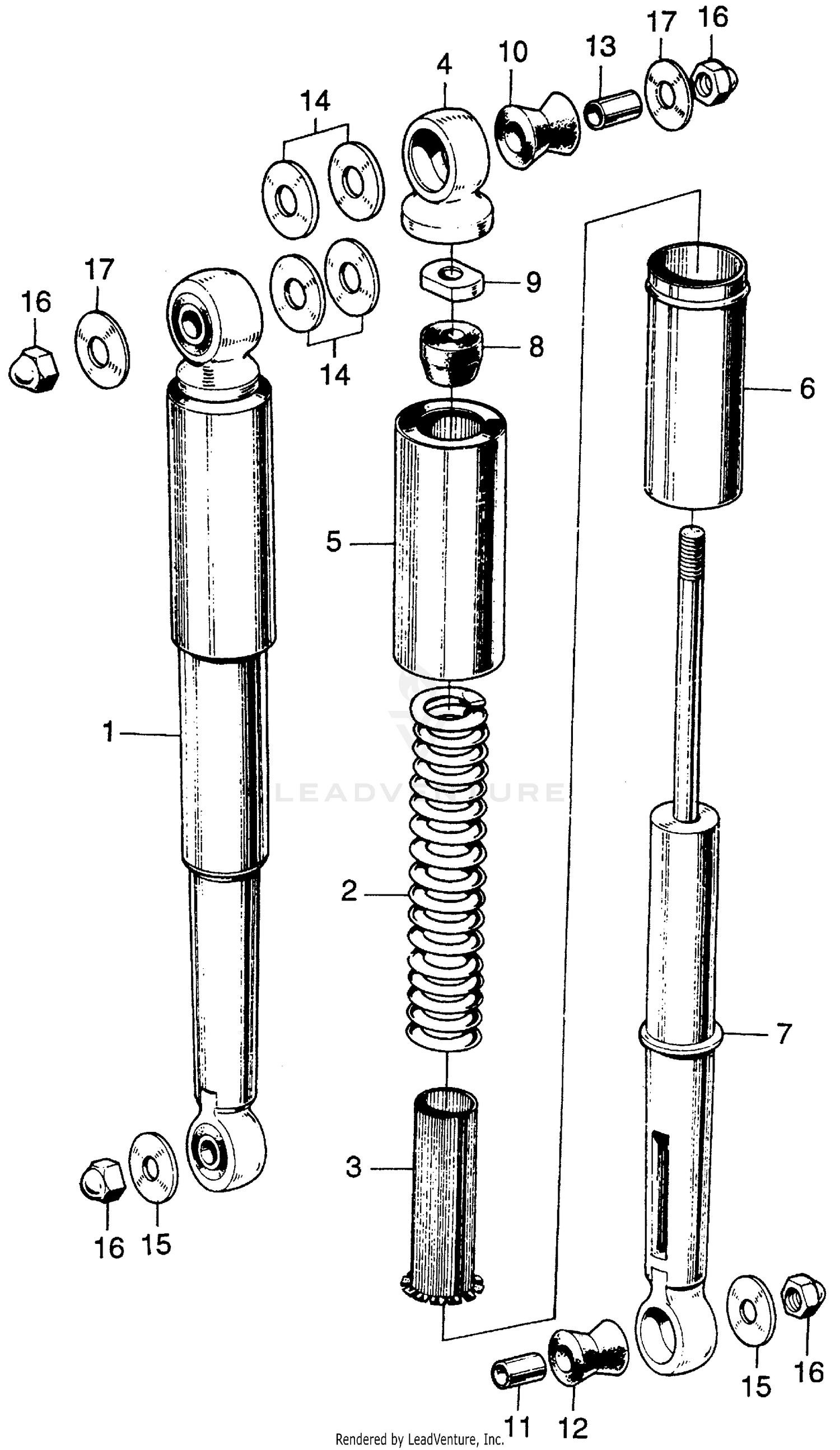

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER, RR. *R8* (BRIGHT RED)
52400-040-010AW
Superseded by 52400-040-030ZH
|
$115.22 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER ASSY., RR. *G14* (PINE GREEN) (NOT AVAILABLE)
52400-040-010BA
|
$97.99 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER, RR. *PB52* (AQUARIUS BLUE)
52400-040-010DY
Superseded by 52400-046-750DY
|
$155.56 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER ASSY., RR. *Y3L* (IVORY WHITE)
52400-040-010XL
|
$133.49 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER, RR. *R8* (BRIGHT RED)
52400-040-020AW
Superseded by 52400-040-030ZH
|
$115.22 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER, RR. *R8* (BRIGHT RED)
52400-040-020ZH
Superseded by 52400-040-030ZH
|
$115.22 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER, RR. *R8* (BRIGHT RED)
52400-040-030ZH
|
$115.22 | ||
|
Unavailable |
|||
|
#1
SHOCK ABSORBER, RR. *PB52* (AQUARIUS BLUE)
52400-046-750DY
|
$155.56 | ||
|
Unavailable |
|||
|
#2
SPRING, SHOCK ABSORBER
52401-040-000
|
$23.51 | ||
|
Unavailable |
|||
|
#3
GUIDE, RR. SHOCK ABSORBER SPRING
52409-011-000
|
$3.30 | ||
|
Unavailable |
|||
|
#4
METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)
52410-033-000
|
$5.92 | ||
|
Unavailable |
|||
|
#5
CASE, RR. SHOCK ABSORBER (UPPER) *R8* (BRIGHT RED) (NOT AVAILABLE)
52410-034-000AW
|
$21.15 | ||
|
Unavailable |
|||
|
#5
CASE, RR. SHOCK ABSORBER (UPPER) *G14* (PINE GREEN) (NOT AVAILABLE)
52410-034-000BA
|
$21.15 | ||
|
Unavailable |
|||
|
#5
CASE, RR. SHOCK ABSORBER (UPPER) *PB52* (AQUARIUS BLUE)
52410-034-000DY
|
$26.10 | ||
|
Unavailable |
|||
|
#5
CASE, RR. SHOCK ABSORBER (UPPER) *Y3L* (IVORY WHITE) (NOT AVAILABLE)
52410-034-000XL
|
$21.15 | ||
|
Unavailable |
|||
|
#6
CASE, SHOCK ABSORBER (NOT AVAILABLE)
52423-035-000
|
$21.03 | ||
|
Unavailable |
|||
|
#7
DAMPER, RR. (NOT AVAILABLE)
52450-035-305
|
$36.75 | ||
|
Unavailable |
|||
|
#8
RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)
52475-051-000
|
$2.26 | ||
|
Unavailable |
|||
|
#9
NUT, RR. SHOCK ABSORBER LOCK (UPPER)
52481-051-000
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SHOCK RUBBER
52485-001-010
Superseded by 52495-098-000
|
$5.29 | ||
|
Unavailable |
|||
|
#10
BUSH, SHOCK RUBBER
52495-098-000
|
$5.29 | ||
|
Unavailable |
|||
|
#11
COLLAR, RR. SHOCK ABSORBER RUBBER BUSH
52486-035-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, RR. SHOCK ABSORBER RUBBER
52489-028-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RR. DAMPER RUBBER BUSH (UPPER) (NOT AVAILABLE)
52496-035-000
|
$2.20 | ||
|
Unavailable |
|||
|
#14
WASHER (12.2X26) (NOT AVAILABLE)
90526-035-000
|
$1.83 | ||
|
Unavailable |
|||
|
#15
WASHER (12MM)
90531-011-000
Superseded by 90531-011-010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (12MM)
90531-011-010
|
$1.73 | ||
|
Unavailable |
|||
|
#16
NUT, CAP (10MM)
94021-10000
Superseded by 94021-10000-0S
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CAP (10MM)
94021-10000-0S
|
$1.88 | ||
|
Unavailable |
|||
|
#16
NUT, CAP (10MM)
94022-10000-0S
Superseded by 94021-10000-0S
|
$1.88 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
