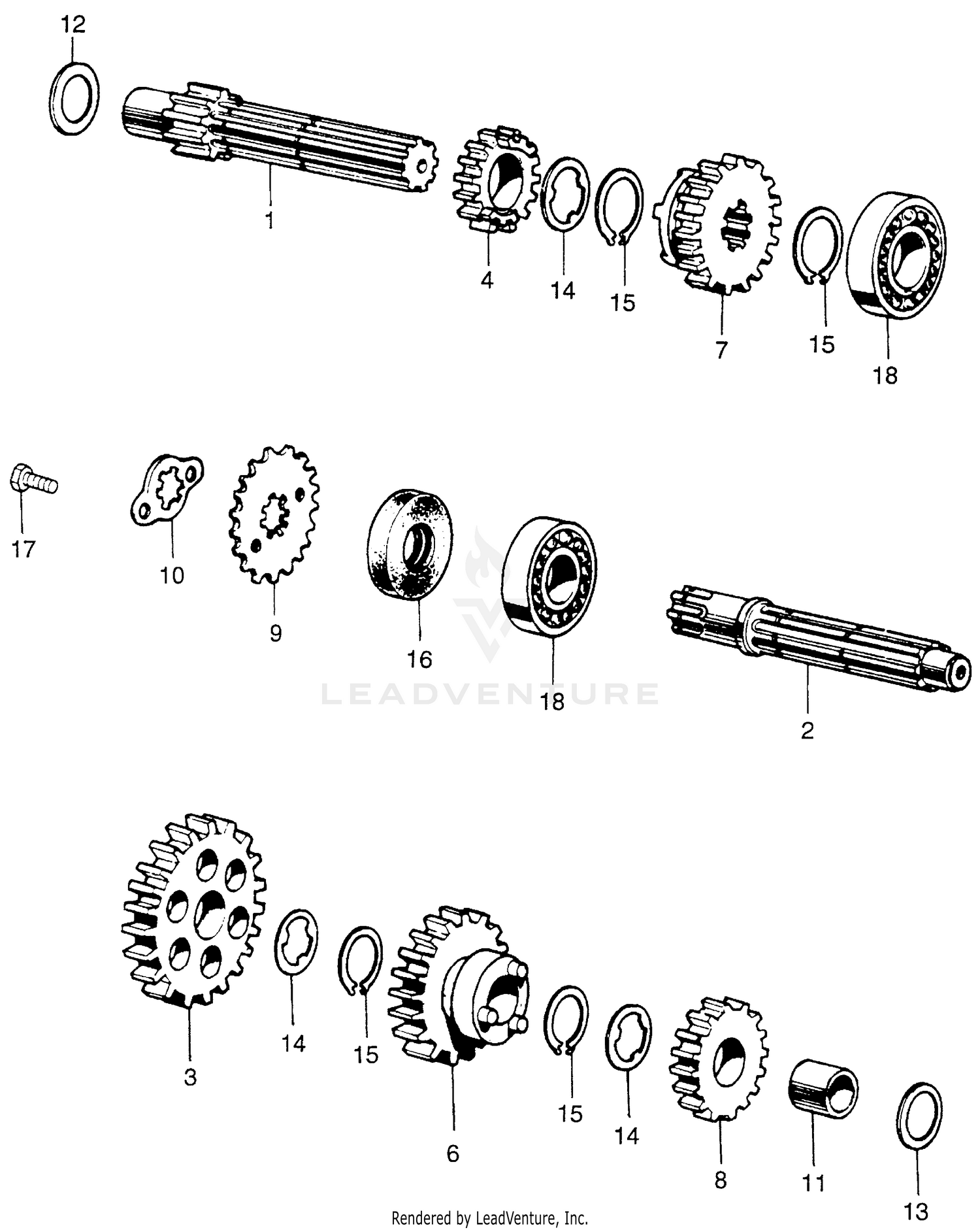

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (11T)
23211-041-020
|
$88.98 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-041-040
Superseded by 23221-041-050
|
$71.28 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-041-050
|
$71.28 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (37T)
23421-041-000
Superseded by 23421-041-010
|
$81.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (37T)
23421-041-010
|
$81.88 | ||
|
Unavailable |
|||
|
#4
GEAR, MAINSHAFT SECOND (18T)
23431-040-060
|
$38.98 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (30T) (NOT AVAILABLE)
23441-087-780
|
$95.66 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)
23471-041-040
|
$27.05 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (25T)
23481-041-020
Superseded by 23481-086-010
|
$39.94 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (25T)
23481-086-000
Superseded by 23481-086-010
|
$39.94 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (25T)
23481-086-010
|
$39.94 | ||
|
Unavailable |
|||
|
#9
SPROCKET, DRIVE (14T)
23800-040-000
Superseded by 23800-040-010
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPROCKET, DRIVE (14T)
23800-040-010
|
$20.64 | ||
|
Unavailable |
|||
|
#10
PLATE, DRIVE SPROCKET FIXING
23802-040-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, GEAR
23911-041-010
Superseded by 23911-041-020
|
$4.76 | ||
|
Unavailable |
|||
|
#11
COLLAR, GEAR
23911-041-020
|
$4.76 | ||
|
Unavailable |
|||
|
#12
WASHER, THRUST (14MM)
90451-001-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (13.5MM)
90451-035-000
|
$2.09 | ||
|
Unavailable |
|||
|
#14
WASHER, SPLINE (17MM)
90461-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (17X29X5) (NOK)
91203-035-000
Superseded by 91203-035-005
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (17X29X5) (NOK)
91203-035-005
|
$10.80 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6203)
96100-62030
Superseded by 96100-62030-00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.55 | ||
|
Unavailable |
|||
