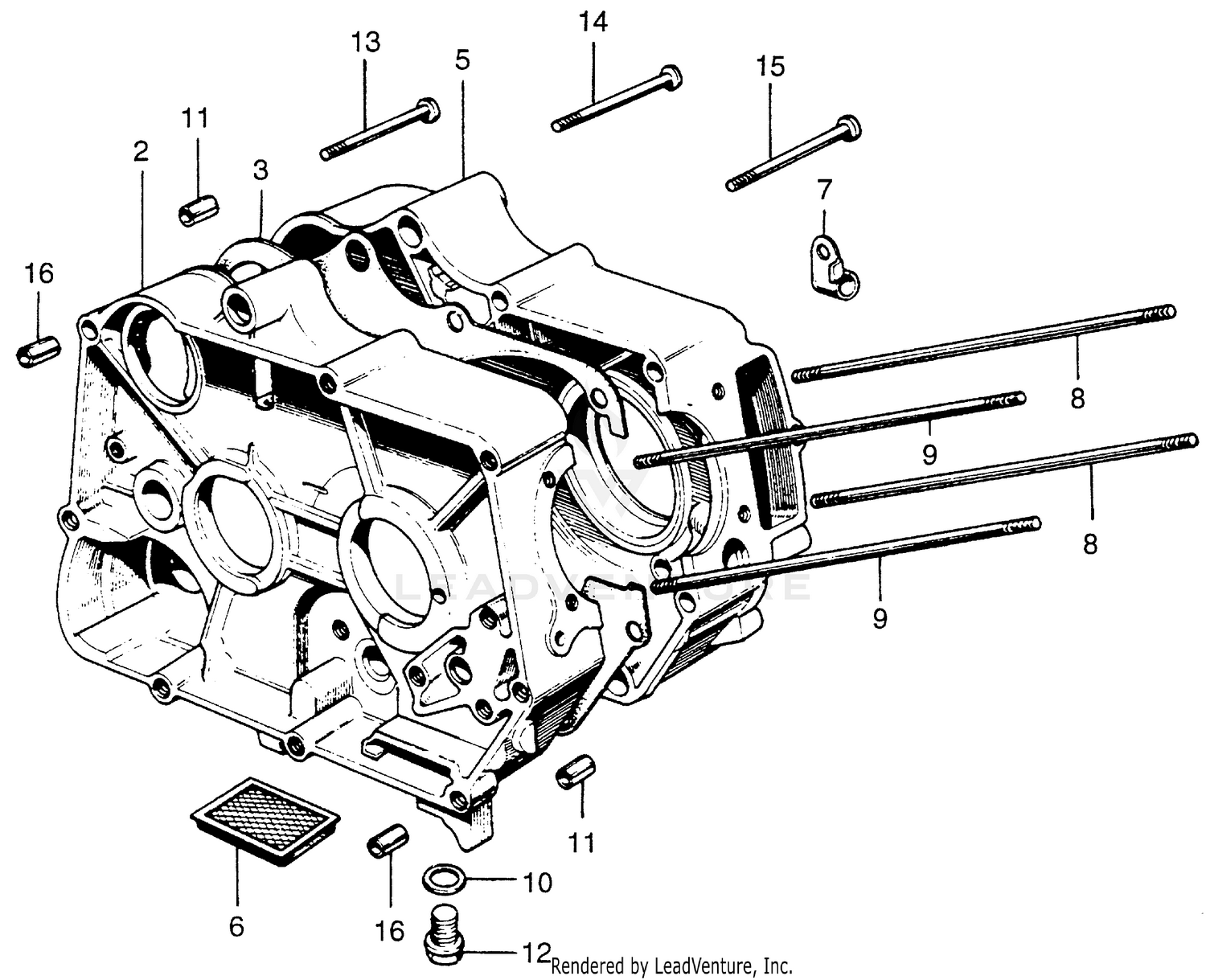

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CRANKCASE, R. (NOT AVAILABLE)
11100-039-080
|
$421.89 | ||
|
Unavailable |
|||
|
#3
GASKET, CRANKCASE
11191-035-050
Superseded by 11191-035-070
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CRANKCASE
11191-035-060
Superseded by 11191-035-070
|
$7.85 | ||
|
Unavailable |
|||
|
#3
GASKET, CRANKCASE
11191-035-070
|
$7.85 | ||
|
Unavailable |
|||
|
#3
GASKET, CRANKCASE
11191-035-307
Superseded by 11191-035-070
|
$7.85 | ||
|
Unavailable |
|||
|
#5
CRANKCASE, L. (NOT AVAILABLE)
11200-039-090
|
$639.43 | ||
|
Unavailable |
|||
|
#5
CRANKCASE, L. (NOT AVAILABLE)
11200-086-791
|
$476.73 | ||
|
Unavailable |
|||
|
#6
SCREEN, OIL FILTER
15421-035-010
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP, OVERFLOW TUBE
16236-045-000
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, OVERFLOW PIPE
16236-045-010
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, OVERFLOW PIPE (NOT AVAILABLE)
16236-086-000
|
$3.76 | ||
|
Unavailable |
|||
|
#7
CLAMP, OVERFLOW TUBE
16245-028-000
Superseded by 16236-045-000
|
$1.97 | ||
|
Unavailable |
|||
|
#8
BOLT A, CYLINDER STUD
90031-035-010
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT B, CYLINDER STUD
90032-035-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, DRAIN PLUG (12MM)
90407-231-000
Superseded by 94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GASKET, DRAIN VALVE (12.5X20)
90407-259-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#11
PIN A, DOWEL (10X14)
90704-035-000
Superseded by 94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#11
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#12
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW, PAN (6X50)
93500-06048
Superseded by 93500-06050-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (6X50)
93500-06050-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (6X60)
93500-06060
Superseded by 93500-06060-0A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X60)
93500-06060-0A
|
$1.50 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (6X65)
93500-06065
Superseded by 93500-06065-0A
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, PAN (6X65)
93500-06065-0A
|
$1.68 | ||
|
Unavailable |
|||
|
#16
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
