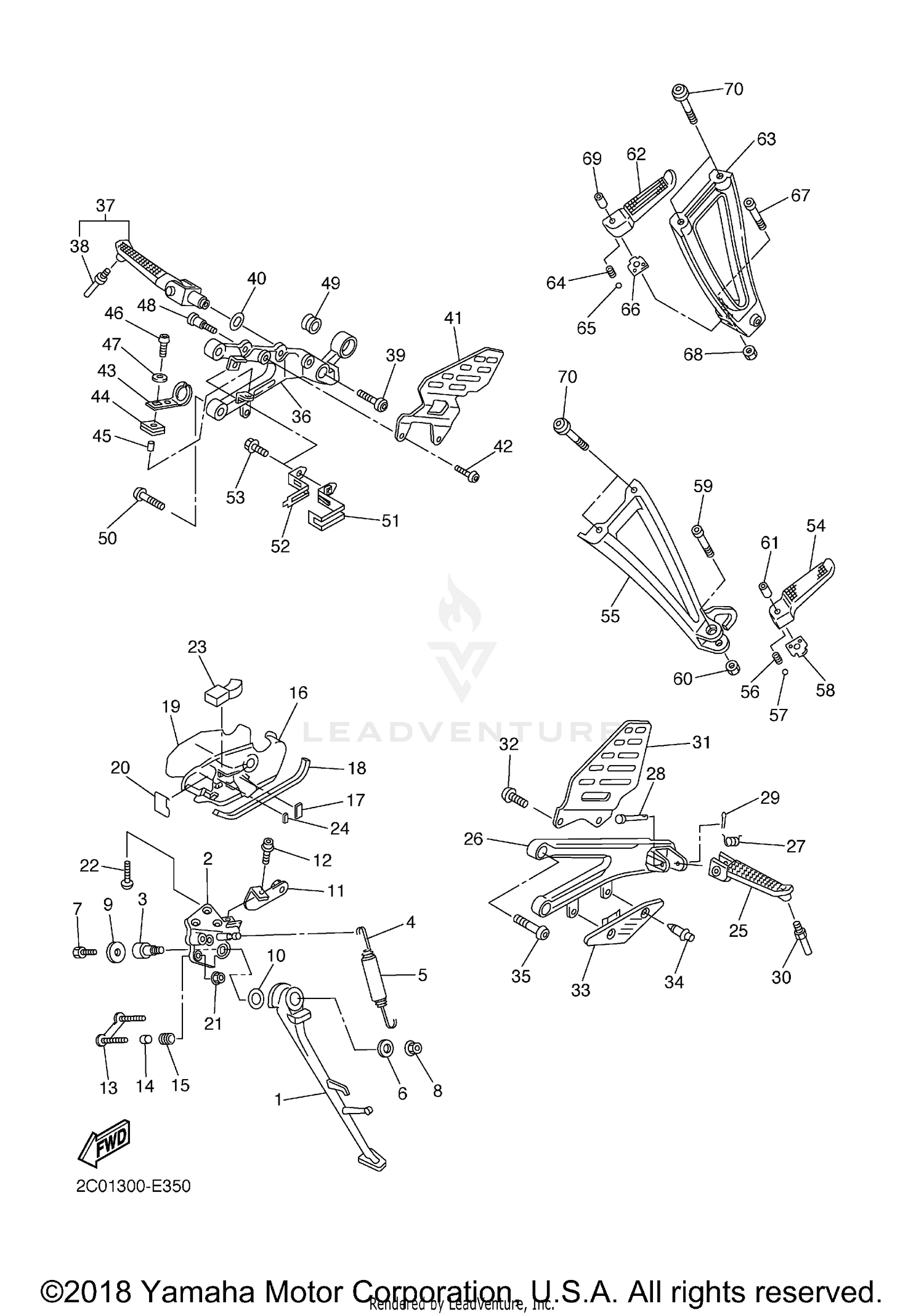

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
2C0-27311-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
2C0-27321-00-00
|
$291.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, SIDE STAND
2C0-27351-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-18008-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE (L60)
90445-19002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90101-08662-00
Superseded by 97017-08020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-146F9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET 3
2C0-2836F-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BRACKET 1
2C0-27263-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-05025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-11006-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 1
2C0-27453-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, FOOTREST
2C0-27414-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, FOOTREST
2C0-27415-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL 1
2C0-28428-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL 2
2C0-28429-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U FLANGE
90185-05009-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
90111-08025-00
Superseded by 92012-08030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER 3
2C0-28425-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, RUBBER 1
2C0-21485-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST
2C0-27451-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET 2
2C0-27442-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TORSION
90508-18134-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT
2C0-27435-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE 1
2C0-27445-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PROTECTOR
2C0-27491-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT
90109-085G6-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET 3
2C0-27443-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FRONT FOOTREST ASSY (RIGHT)
2C0-27420-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
2C0-27435-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#39
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, CLAW
90214-13002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE 2
2C0-27446-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
|
$2.65 | ||
|
Unavailable |
|||
|
#43
STAY, STOP SWITCH
2C0-2144G-00-00
|
$2.55 | ||
|
Unavailable |
|||
|
#44
GROMMET
90480-12607-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-06023-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
WASHER, PLATE
90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
DAMPER, MUFFLER
2C0-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT
90109-085G6-00
|
$3.50 | ||
|
Unavailable |
|||
|
#51
BRACKET 8
2C0-2116K-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET 9
2C0-2116L-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#54
FOOTREST, REAR 1
5JJ-27431-00-00
Superseded by 5JJ-27431-10-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BRACKET 4
2C0-2741L-00-00
Superseded by 2C0-2741L-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
WASHER, SPECIAL
5JJ-27437-01-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
COLLAR
90387-06697-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
FOOTREST, REAR 2
5JJ-27441-00-00
Superseded by 5JJ-27441-10-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET 5
2C0-2742L-00-00
Superseded by 2C0-2742L-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
Unavailable |
|||
|
#65
BALL
93501-04011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#66
WASHER, SPECIAL
5JJ-27437-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#67
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#68
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#69
COLLAR
90387-06697-00
|
$18.49 | ||
|
Unavailable |
|||
|
#70
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
