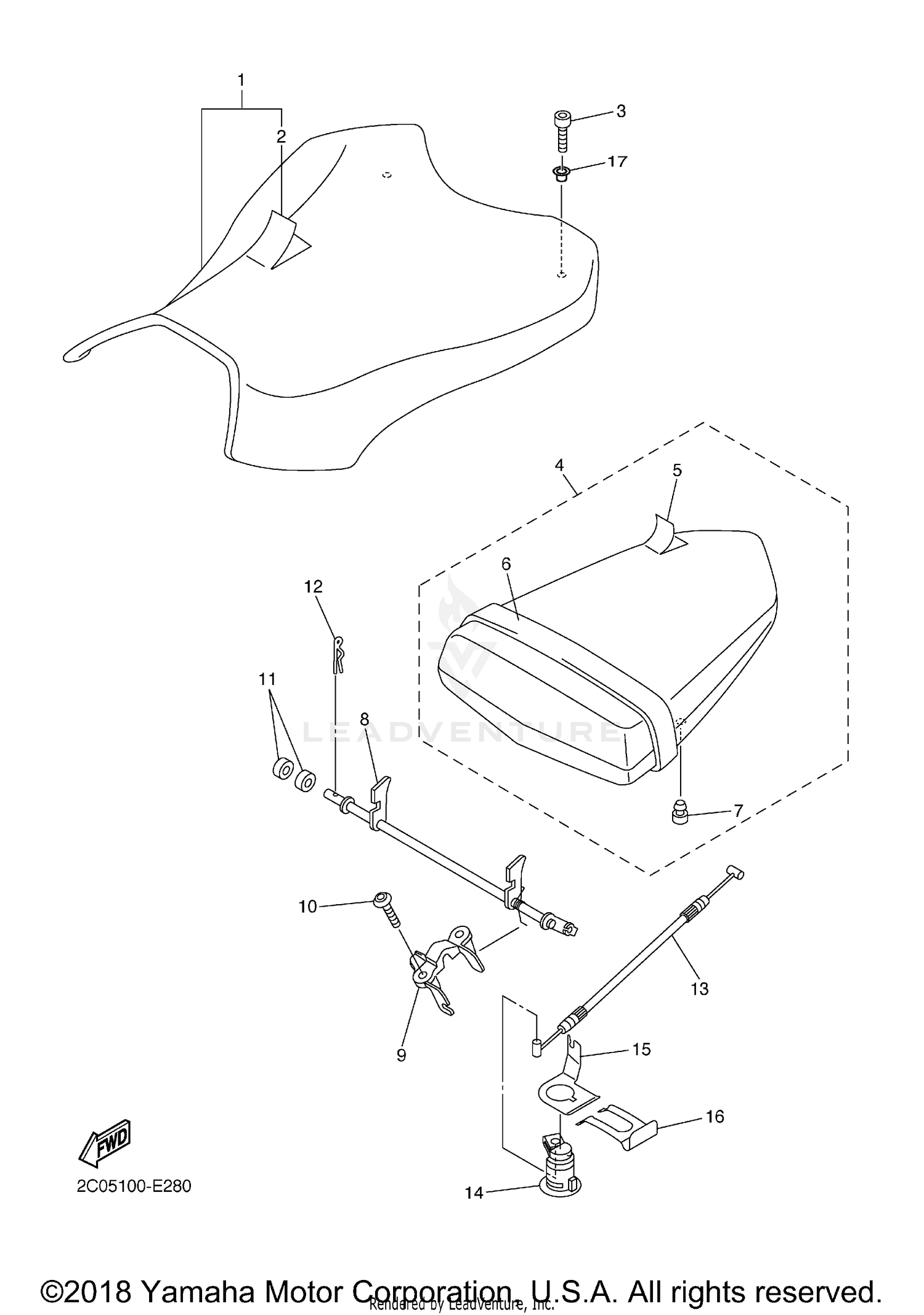

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
2C0-24710-00-00
Superseded by 2C0-24710-01-00
|
$167.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
2C0-24711-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06258-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
2C0-24750-00-00
Superseded by 2C0-24750-01-00
|
$187.99 | ||
|
Unavailable |
|||
|
#5
COVER, TANDEM SEAT
2C0-24751-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT BAND ASSY
2C0-24720-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, SEAT
5SL-24723-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT LOCK ASSY
2C0-24780-00-00
Superseded by 2C0-24780-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE
2C0-24792-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06051-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, CARRIER
2C0-24825-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90468-16001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, SEAT LOCK
2C0-2478E-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT LOCK ASSY
5VY-W2470-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, LOCK
5VY-2117K-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, LOCK 2
5VY-2176V-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
