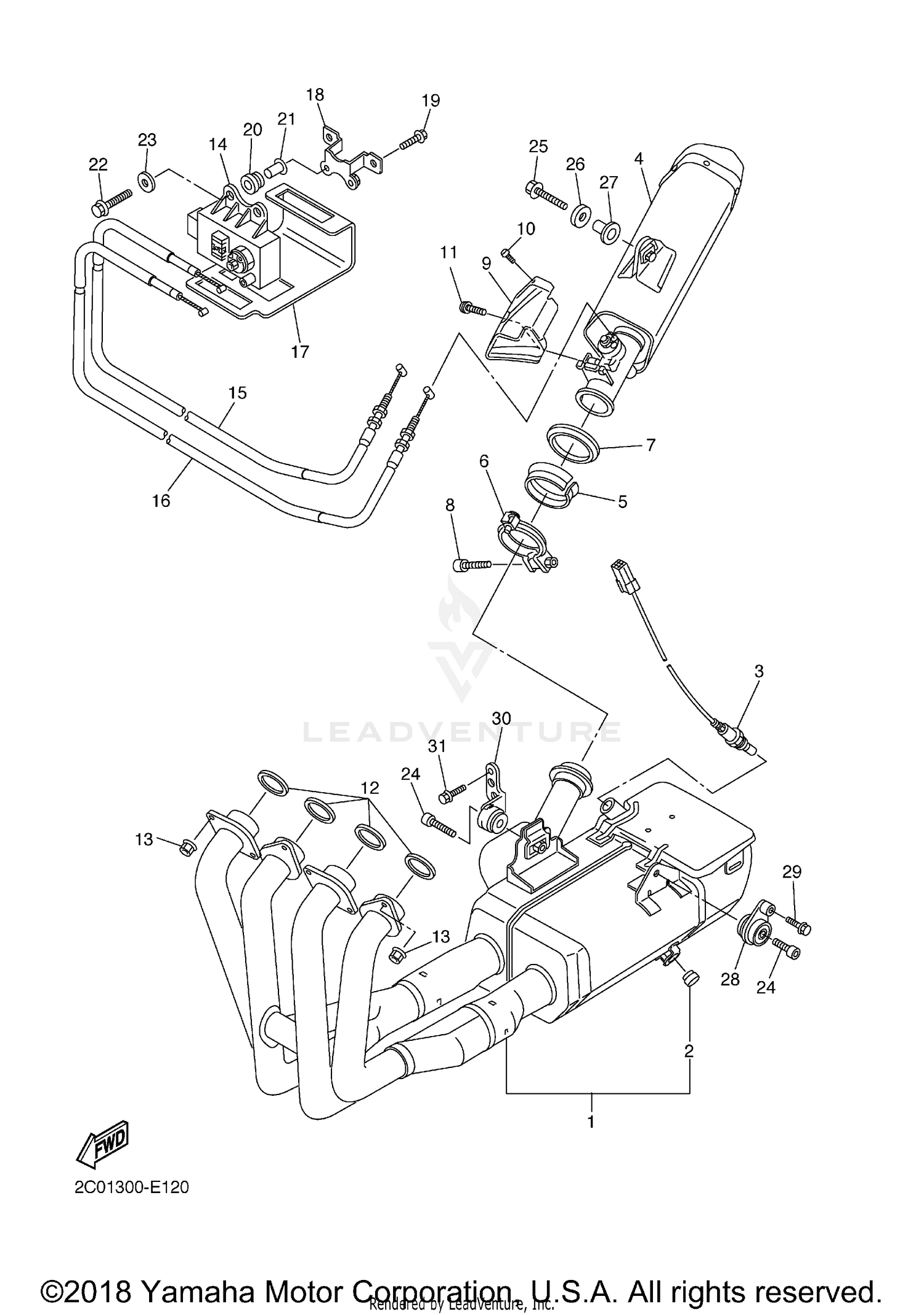

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
2C0-14610-00-00
|
$1,382.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, LOCATING 1
4FM-24181-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR
2C0-8592A-00-00
|
$360.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SILENCER, EXHAUST
2C0-14753-10-00
Superseded by 2C0-14753-12-00
|
$1,309.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
2C0-14618-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, MUFFLER
2C0-14725-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
2C0-14623-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER 1
2C0-14718-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06010-00
Superseded by 90111-06146-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06071-00
Superseded by 90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-08410-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SERVO MOTOR ASSY
2C0-85820-00-00
|
$487.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, PULLEY 1
2C0-1133E-00-00
Superseded by 13S-1133E-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, PULLEY 2
2C0-1133F-00-00
Superseded by 13S-1133F-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER
2C0-2177F-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET 7
2C0-2116J-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GROMMET
90480-14005-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-063E6-00
Superseded by 90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-06M31-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08063-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-087G2-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-08021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY, MUFFLER 2
2C0-21446-00-00
Superseded by 13S-21446-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
90105-08054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, MUFFLER 1
2C0-21445-00-00
Superseded by 13S-21445-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-083A2-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
