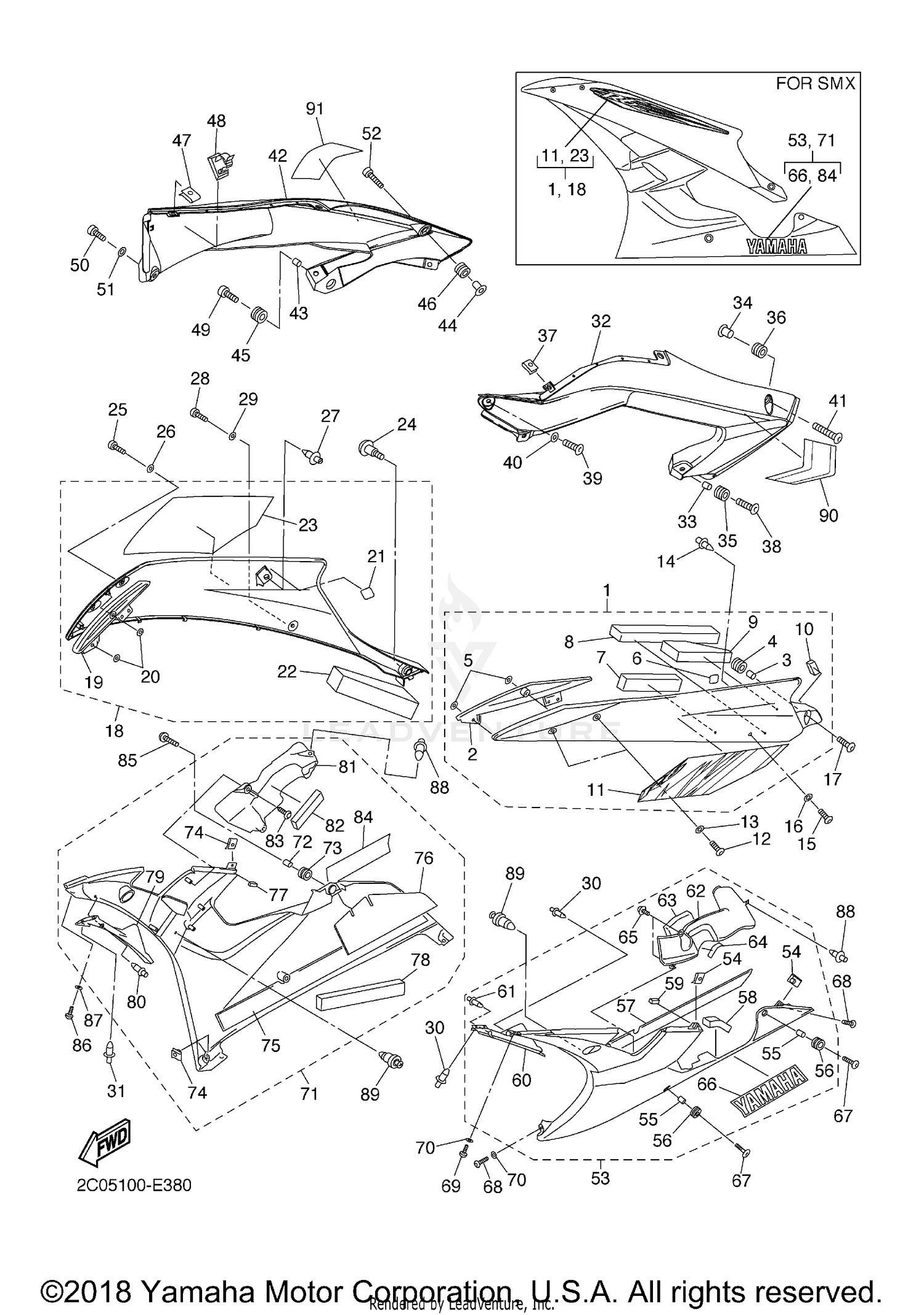

Cowling 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL ASSEMBLY 1
2C0-Y283U-40-P0
|
$470.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PANEL ASSEMBLY 1
2C0-Y283U-20-P2
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER 1
2C0-28219-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GROMMET
90480-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SEAL
1UF-15379-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 1
2C0-2836T-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 5
2C0-2837J-00-00
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 11
2C0-2847S-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
3XV-21717-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRAPHIC 1
2C0-28391-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#11
GRAPHIC 1
2C0-28391-30-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET
90269-07007-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL ASSEMBLY 2
2C0-Y283V-40-P0
|
$467.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL ASSEMBLY 2
2C0-Y283V-20-P2
|
$502.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER 2
2C0-28229-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#20
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Unavailable |
|||
|
#21
SEAL
1UF-15379-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
DAMPER 6
2C0-2837K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRAPHIC 2
2C0-28392-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#23
GRAPHIC 2
2C0-28392-30-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06078-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-07007-00
|
$4.40 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
COVER 7
2C0-2117V-00-P0
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER 7
2C0-2117V-00-P2
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-06057-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
COLLAR
90387-067K8-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
GROMMET
90480-14003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
GROMMET
90480-12613-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.65 | ||
|
Unavailable |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#41
BOLT, HEX. SOCKET BUTTON
90111-06063-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
COVER 8
2C0-2117W-00-P0
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER 8
2C0-2117W-00-P2
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-06057-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
COLLAR
90387-067K8-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
GROMMET
90480-14003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#46
GROMMET
90480-12613-00
|
$26.99 | ||
|
Unavailable |
|||
|
#47
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#48
CLAMP
90464-13007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.65 | ||
|
Unavailable |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#51
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#52
BOLT, HEX. SOCKET BUTTON
90111-06063-00
|
$9.49 | ||
|
Unavailable |
|||
|
#53
COVER ASSY, UNDER
2C0-Y2808-00-P3
|
$416.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COVER ASSY, UNDER
2C0-Y2808-10-P2
|
$378.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#55
COLLAR
90387-06057-00
|
$9.49 | ||
|
Unavailable |
|||
|
#56
GROMMET
90480-14003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#57
SEAT 1
2C0-2838G-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
DAMPER, LOCATING 2
2C0-2836U-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
DAMPER 8
2C0-2847N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
PANEL, INNER 2
2C0-2836L-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#62
DUCT 4
2C0-2838U-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
DAMPER
2C0-2834F-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
DAMPER, PLATE 2
1LJ-2414J-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
SCREW, TAPPING
90164-05014-00
Superseded by 90164-05001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
EMBLEM, YAMAHA
99241-00240-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
EMBLEM, YAMAHA
99247-00240-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.65 | ||
|
Unavailable |
|||
|
#68
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#69
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#70
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#71
COVER ASSY 2, UNDER
2C0-Y2809-00-P3
|
$371.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
COVER ASSY 2, UNDER
2C0-Y2809-10-P2
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
COLLAR
90387-06057-00
|
$9.49 | ||
|
Unavailable |
|||
|
#73
GROMMET
90480-14003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#74
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#75
SEAT 2
2C0-2848K-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SEAT
2C0-2848H-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#77
DAMPER 9
2C0-2847P-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#78
DAMPER 10
2C0-2847R-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
PANEL, INNER 3
2C0-2836M-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#81
DUCT 5
2C0-2838J-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
DAMPER 1
2C0-2834E-00-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#83
SCREW, TAPPING
90164-05014-00
Superseded by 90164-05001-00
|
$9.49 | ||
|
Unavailable |
|||
|
#84
EMBLEM, YAMAHA
99241-00240-00
|
$17.49 | ||
|
Unavailable |
|||
|
#84
EMBLEM, YAMAHA
99247-00240-00
|
$18.49 | ||
|
Unavailable |
|||
|
#85
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.65 | ||
|
Unavailable |
|||
|
#86
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#87
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#88
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#89
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
GRAPHIC
2C0-21788-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#91
GRAPHIC
2C0-21789-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
