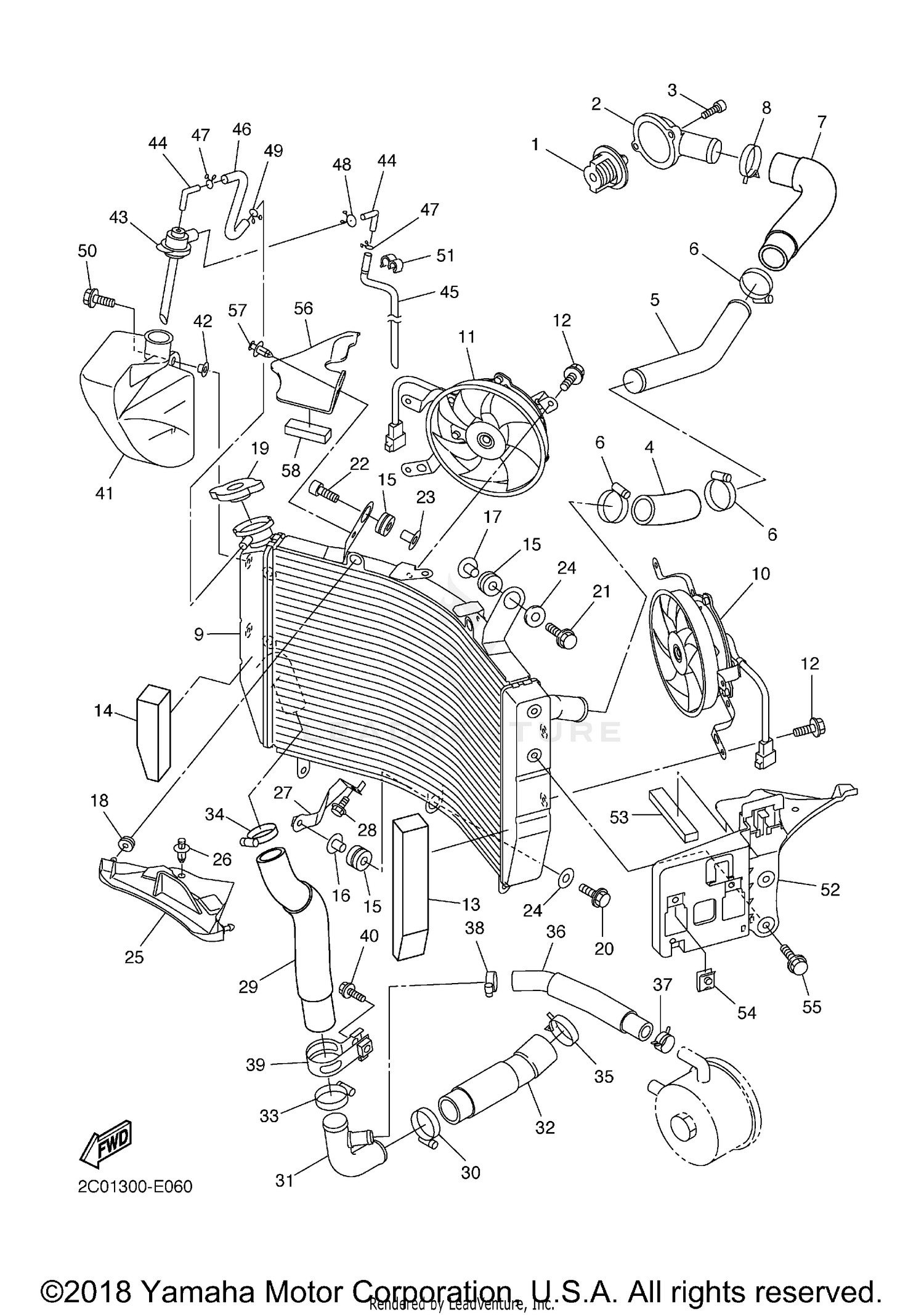

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
5SL-12410-00-00
Superseded by 5SL-12410-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, THERMOSTAT
2C0-12413-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE 3
2C0-12578-00-00
Superseded by 2C0-12578-01-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 1
2C0-12481-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE 8
2C0-12552-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-29174-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
RADIATOR ASSY
2C0-12461-00-00
|
$576.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLOWER ASSY
2C0-12405-00-00
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLOWER ASSY
2C0-12405-10-00
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BLOWER HOLDING
5GJ-12675-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, AIR SHROUD 2
2C0-12659-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, AIR SHROUD 3
2C0-12668-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-0614M-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-11005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95807-06035-00
Superseded by 95817-06035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET HEAD
91317-06035-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COLLAR
90387-0614M-00
|
$12.49 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLATE
2C0-12535-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIVET
90269-07007-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET 1
2C0-1244E-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HOSE 4
2C0-12579-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
JOINT, HOSE 2
2C0-12582-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE 7
2C0-12551-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-310A0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE 6
2C0-12589-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-200A0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
CLAMP 1
2C0-12491-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
95027-10020-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
TANK, RECOVERY
2C0-21871-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-06681-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CAP
2C0-21875-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
ELBOW
26H-21828-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE 1
2C0-21816-00-00
Superseded by 2C0-21816-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE, 3
2C0-1243F-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
CLIP
90467-10M04-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
Unavailable |
|||
|
#50
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
CLAMP
90464-10M38-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET 5
2C0-2836H-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
DAMPER
2C0-2139X-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
NUT, SPRING
90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#56
COVER 5
2C0-1246H-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
RIVET
90269-06083-00
Superseded by 90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
DAMPER 2
2C0-2139U-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
