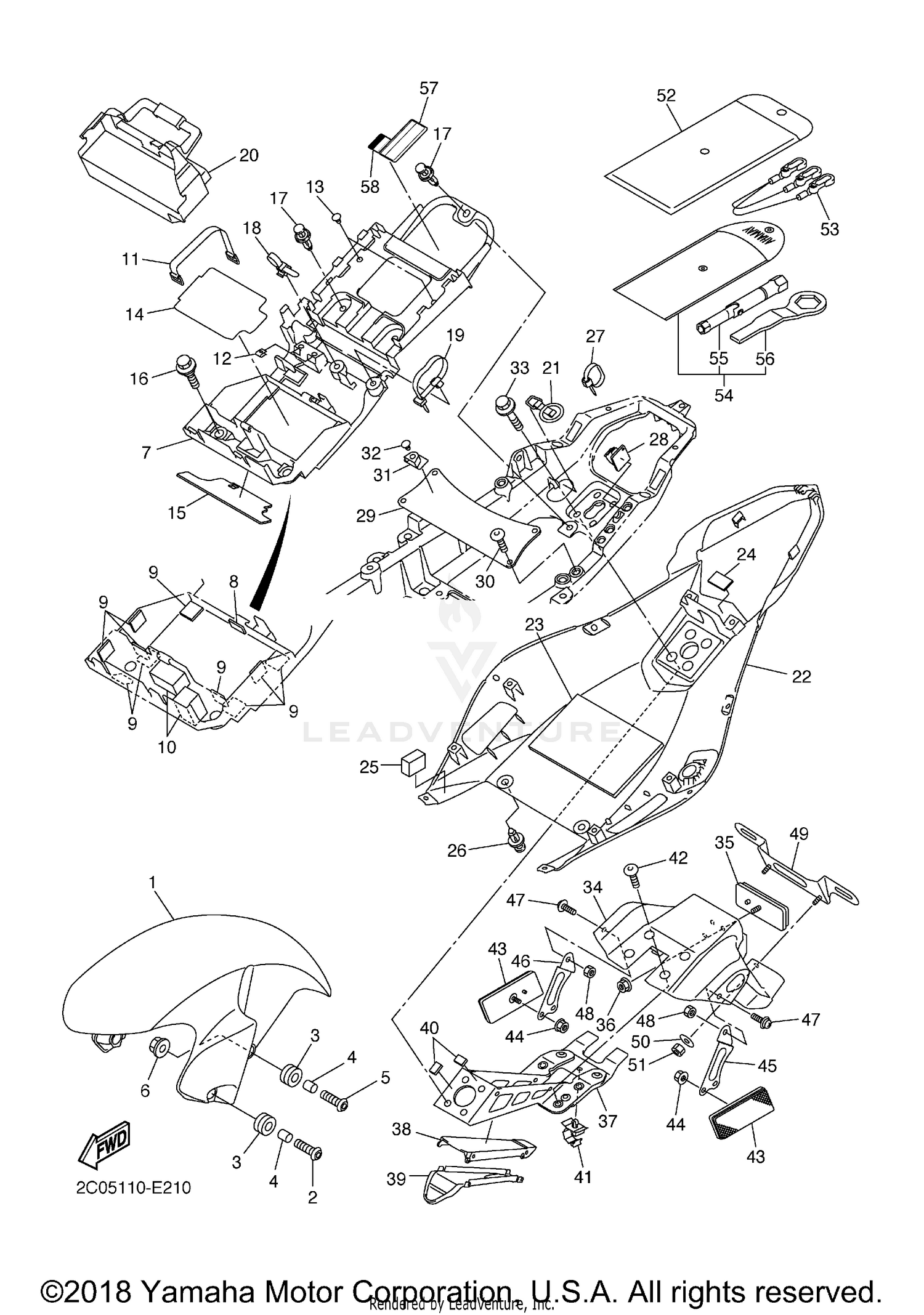

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2C0-21511-00-P0
Superseded by 2C0-21511-01-P0
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
2C0-21511-00-P2
Superseded by 2C0-21511-01-P2
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET BUTTON
90111-06043-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GROMMET
90480-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06057-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET BUTTON
90111-06030-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOX, BATTERY 1
2C0-8212B-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 2
51Y-21639-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
2C0-21649-00-00
|
$0.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 1
2C0-21541-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#11
BAND, BATTERY
133-82131-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, spring
90183-04039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT BATTERY ASSY 1
2C0-821A1-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
SEAT BATTERY ASSY 2
2C0-821A2-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-06171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET
90269-07010-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLAMP
90464-44002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BATTERY COVER ASSY
2C0-82160-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, TOOL
2C0-21376-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FENDER, REAR
2C0-21611-00-P0
Superseded by 2C0-21611-01-P0
|
$142.99 | ||
|
Unavailable |
|||
|
#22
FENDER, REAR
2C0-21611-00-P2
Superseded by 2C0-21611-01-P2
|
$179.99 | ||
|
Unavailable |
|||
|
#23
DAMPER 2
2C0-21639-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE 1
5GM-27445-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLATE 1
2C0-2162G-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#27
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-13004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET
2C0-21131-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
STAY, SIDE COVER 1
5SL-2172E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
BOLT, WITH WASHER
90119-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GUARD, MUD
2C0-21629-10-00
Superseded by 2C0-21629-11-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, S/L FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
REAR STAY COMP.
2C0-21640-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, REAR FENDER 1
2C0-2163A-00-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
COVER, REAR FENDER 2
2C0-2163E-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SEAL
2C0-21669-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-14228-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
90109-06182-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#44
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET, REAR STAY
2C0-21688-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET, REAR STAY 2
2C0-21689-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, WITH WASHER
90159-06011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
BRACKET, LICENSE
5MT-84751-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
Unavailable |
|||
|
#52
TOOL KIT
2C0-28100-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
HELMET HANGER ASSY
2C0-21370-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
TOOL KIT 2
2C0-28110-00-00
Superseded by 2C0-28110-01-00
|
$49.99 | ||
|
Unavailable |
|||
|
#55
BOX, SPARK PLUG
4XV-2814F-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
SPANNER, SPECIAL
4FM-28135-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
LABEL, CAUTION
3JJ-28446-A1-00
Superseded by 3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#58
LABEL, CAUTION
3TB-24877-A0-00
Superseded by 3TB-24877-A1-00
|
$5.99 | ||
|
Unavailable |
|||
