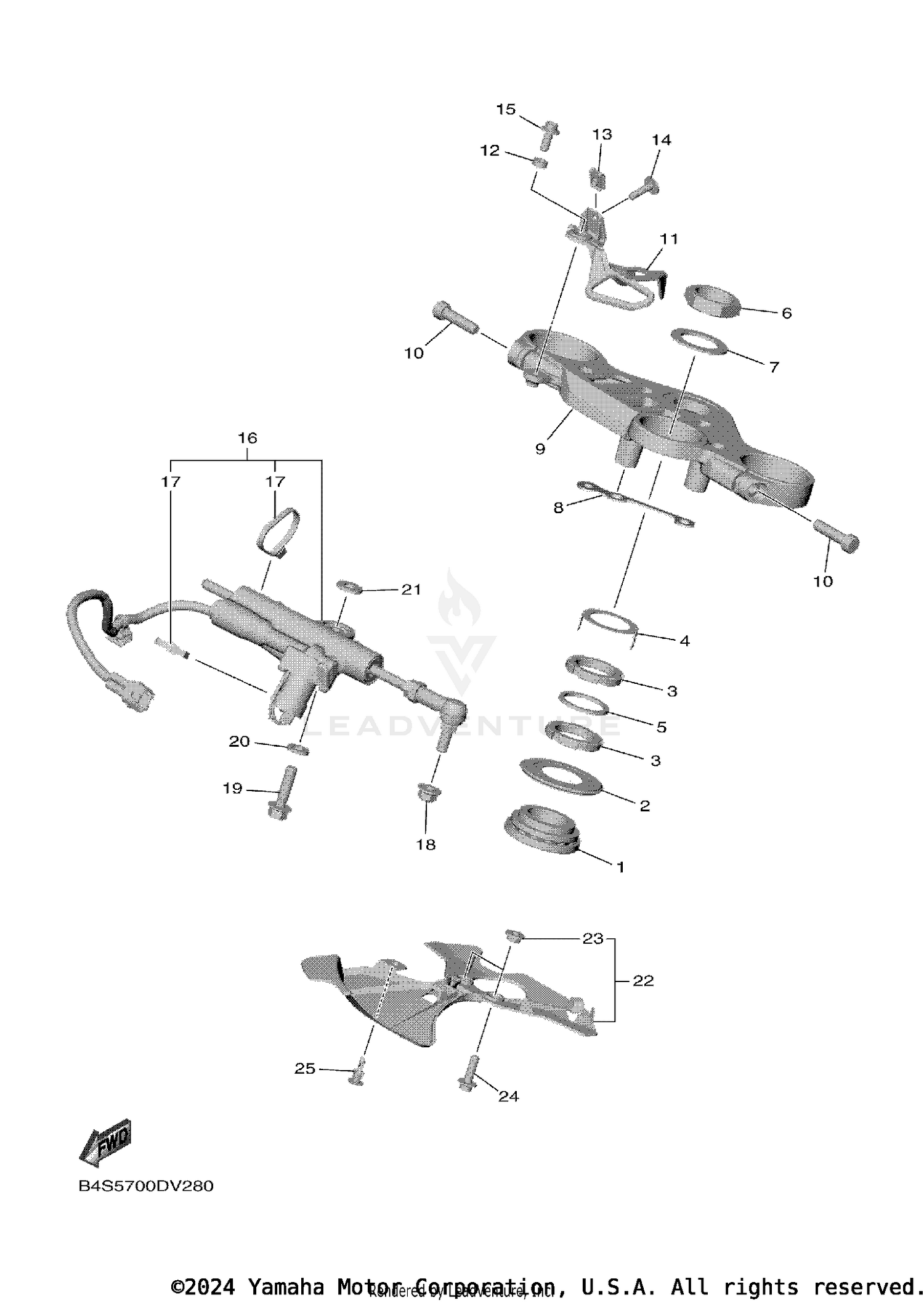

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93399-99932-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, BALL RACE 1
4XV-23415-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-30691-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPECIAL
4XV-23418-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90202-30235-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90170-28419-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-281U8-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GUIDE, CABLE
B4S-23389-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CROWN, HANDLE
2CR-23435-01-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STAY
2CR-26292-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06122-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HANDLEBAR SHIMMY DAMPER ASSY
B3L-23490-00-00
Superseded by B3L-23490-01-00
|
$801.99 | ||
|
Unavailable |
|||
|
#17
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08153-00
Superseded by 95812-08030-00
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08676-00
Superseded by 90201-08649-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER
5VY-26398-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, STEERING
2CR-23818-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER
90560-06244-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06164-00
Superseded by 90110-06163-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
