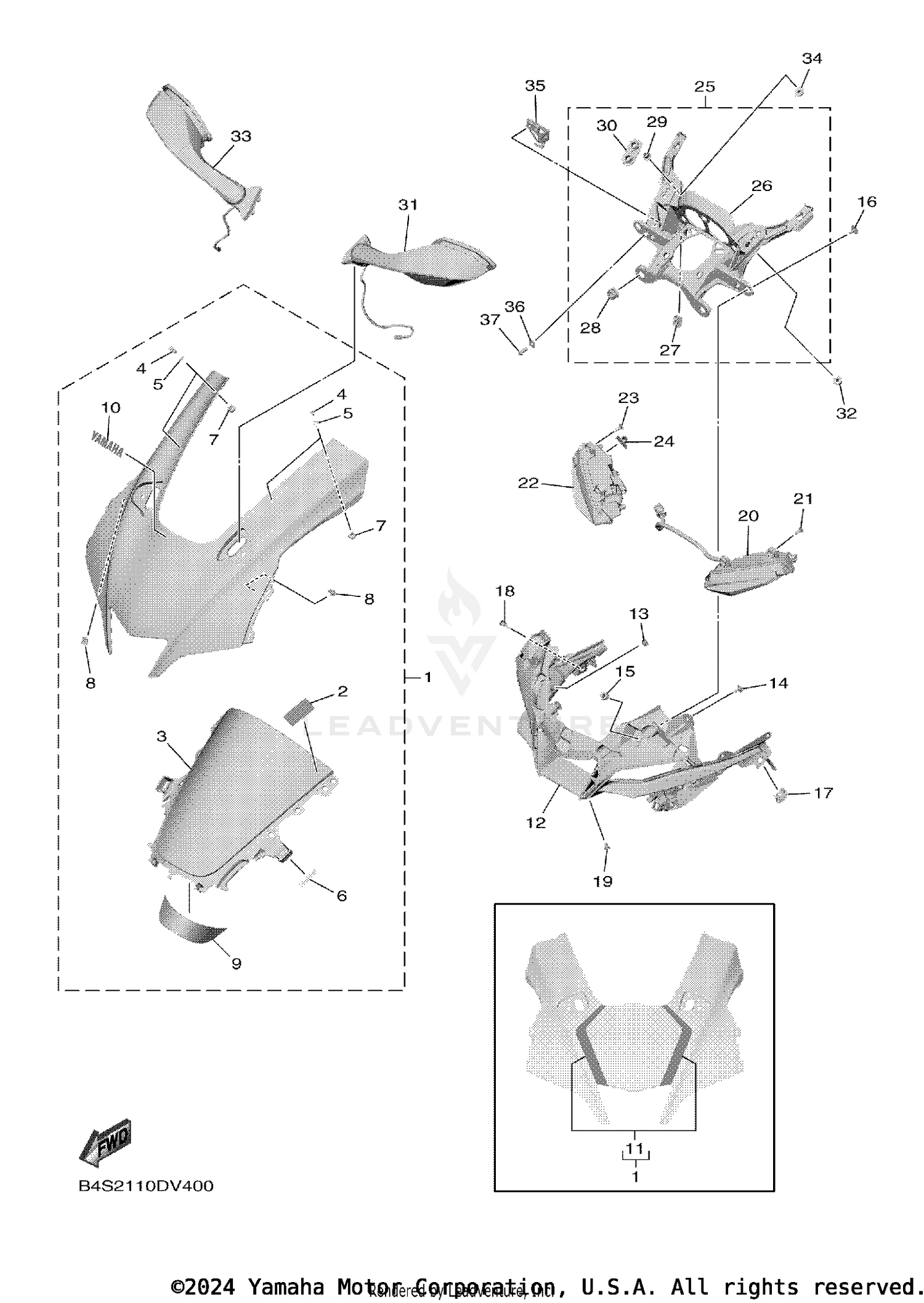

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, FRONT UPPER 1
B4S-Y283G-10-0X
|
$3,529.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
. .WINDSHIELD
B3L-28381-10-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
2CR-28333-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90202-05088-00
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL
3P6-28307-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRAPHIC, 18
B3L-2832P-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM, YAMAHA
99247-00080-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
. .GRAPHIC SET 1, COWLING
B4S-2834X-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY, FRONT UPPER 2
B3L-2835H-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-05045-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GROMMET
90480-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
90164-05001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLATE, SPRING
2CR-2177L-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RIVET
90269-06018-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
PILOT LIGHT ASSY 1
B3L-84301-00-00
|
$360.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PILOT LIGHT ASSY 2
B3L-84302-00-00
|
$401.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
CLAMP
90464-09009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
LEG SHIELD STAY SET
B4S-28320-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY 1
2CR-28356-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-060A1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
4XV-83513-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR ,4
2CR-284AK-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, MIRROR FITTING 1
4C8-26298-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
REAR VIEW MIRROR ASSY (LEFT)
B3L-26280-10-00
Superseded by B3L-26280-11-00
|
$365.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CROWN
90176-06055-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
REAR VIEW MIRROR ASSY (RIGHT)
B3L-26290-10-00
Superseded by B3L-26290-11-00
|
$365.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CROWN
90176-06055-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
BRKT. 7
B4S-28468-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-06184-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
92012-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
