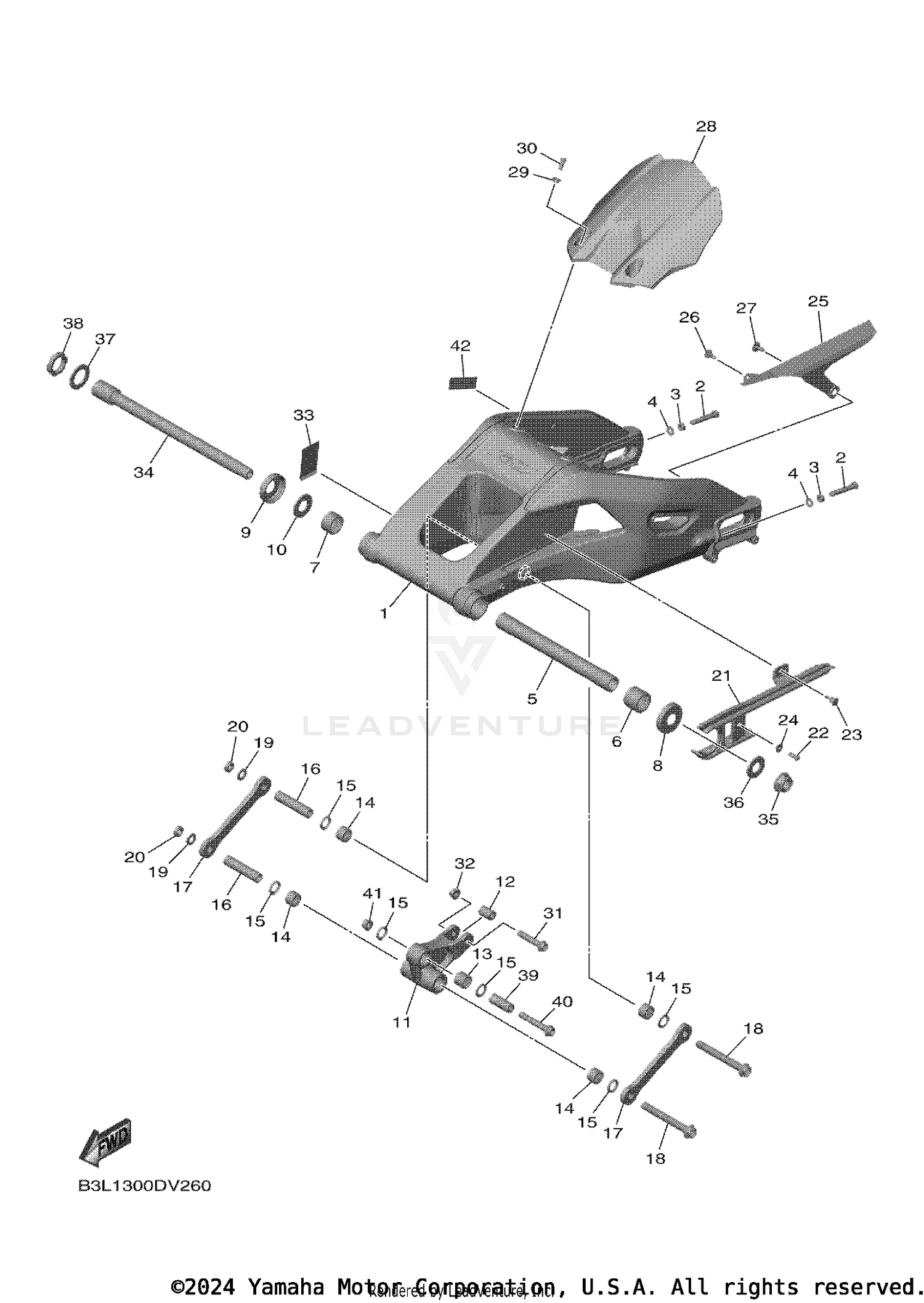

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
B4S-22110-00-00
|
$2,222.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90101-08013-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, HEXAGON
95302-08600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08057-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
2CR-22184-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-52897-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93317-428U8-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 1
5VY-22128-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, THRUST 1
4C8-22128-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-22019-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RELAY
B3L-2217A-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-1012A-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93315-31759-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING
93315-31758-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-126Y1-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM 1
2CR-2217M-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-12010-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-12011-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, GUARD
2CR-22151-00-00
Superseded by 2CR-22151-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-07007-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
COLLAR
90387-06242-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CASE, CHAIN
2CR-22311-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIVET
90269-07007-00
|
$4.40 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
REAR FENDER COMP.
2CR-21650-00-00
Superseded by 2CR-21650-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#29
SPACER
90560-06244-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BUTTON HEAD
92014-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-10017-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SEAL
5UY-21269-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHAFT, PIVOT
14B-22141-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-20008-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-20026-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-30016-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
4C8-22252-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-1012B-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90109-10017-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Unavailable |
|||
|
#42
LABEL, TIRE
2CR-21668-00-00
Superseded by 2CR-21668-01-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
