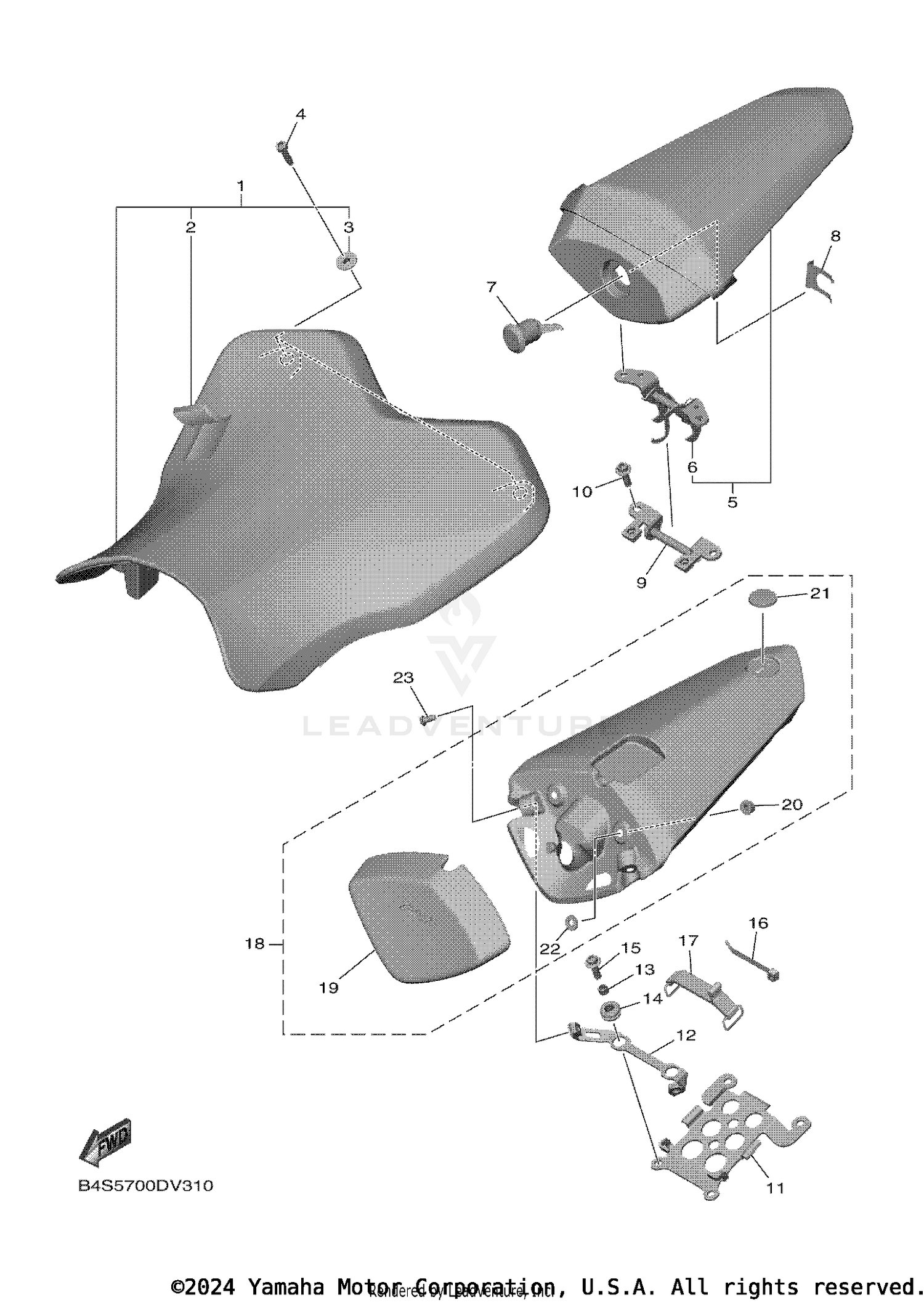

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
2CR-24710-00-00
Superseded by 2CR-24710-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
2CR-24711-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06258-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANDEM SEAT ASSY
2CR-24750-00-00
Superseded by 2CR-24750-01-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT LOCK COMP.
2CR-2478R-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR SET
2CR-W2470-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, LOCK 2
5VY-2176V-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT LOCK
2CR-2478X-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, TAIL COVER
2KS-2475U-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, TAIL COVER 2
2KS-2475V-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06023-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-12237-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND
55K-2811G-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT COVER ASSY
2KS-2477A-00-00
|
$1,861.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
2KS-24753-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
TUNING FORK MARK
8GC-2836B-02-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-063A5-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
90149-06250-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
