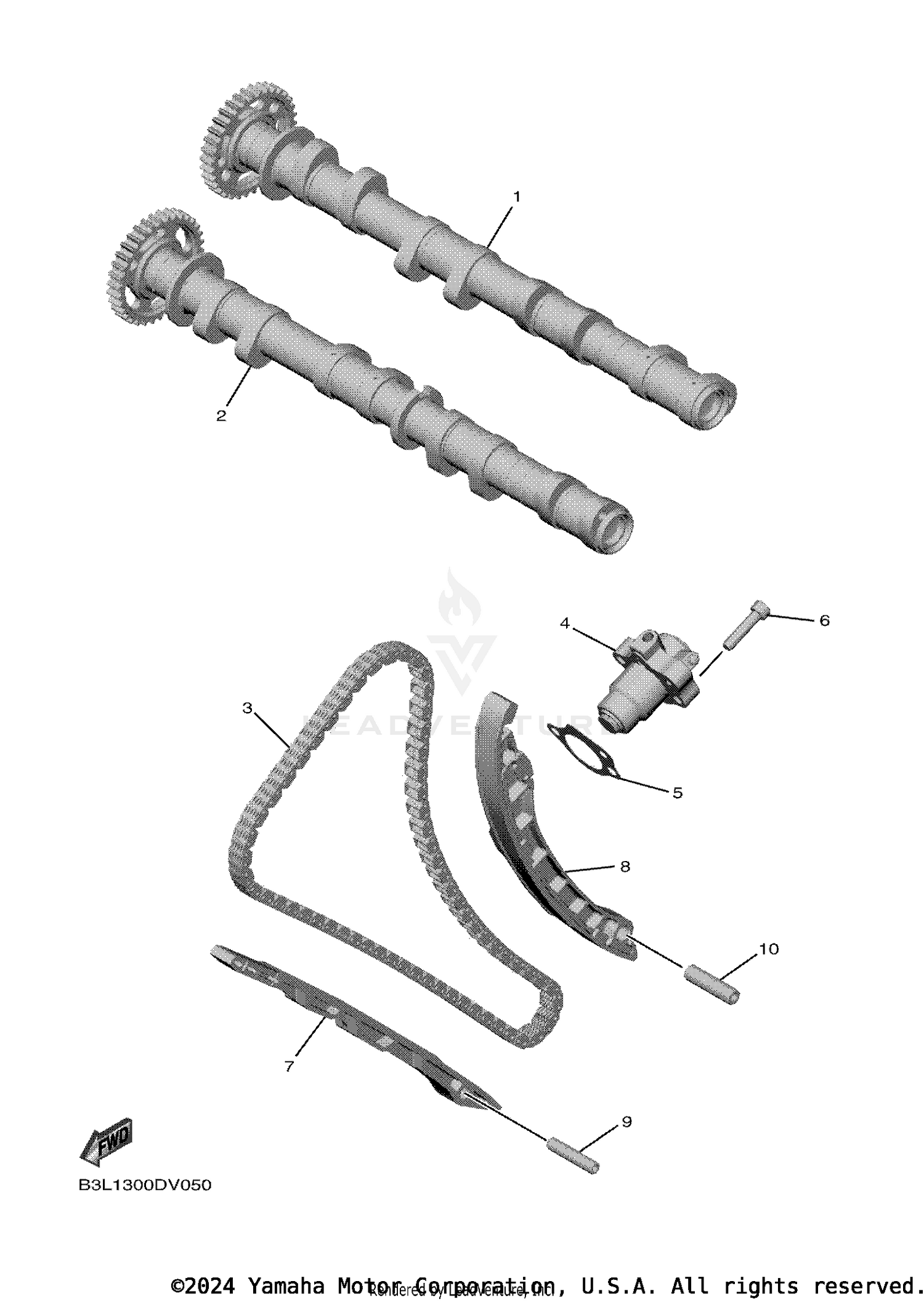

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
B3L-12170-00-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
B3L-12180-00-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN
94591-75128-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER ASSY, CAM CHAIN
BX4-12210-00-00
Superseded by BX4-12210-01-00
|
$225.99 | ||
|
Unavailable |
|||
|
#5
GASKET, TENSIONER CASE
14B-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90110-06178-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DAMPER, CHAIN 1
2CR-12251-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN DAMPER ASSY
2CR-12250-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, TENSIONER
2CR-12247-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT 2
2CR-12257-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
