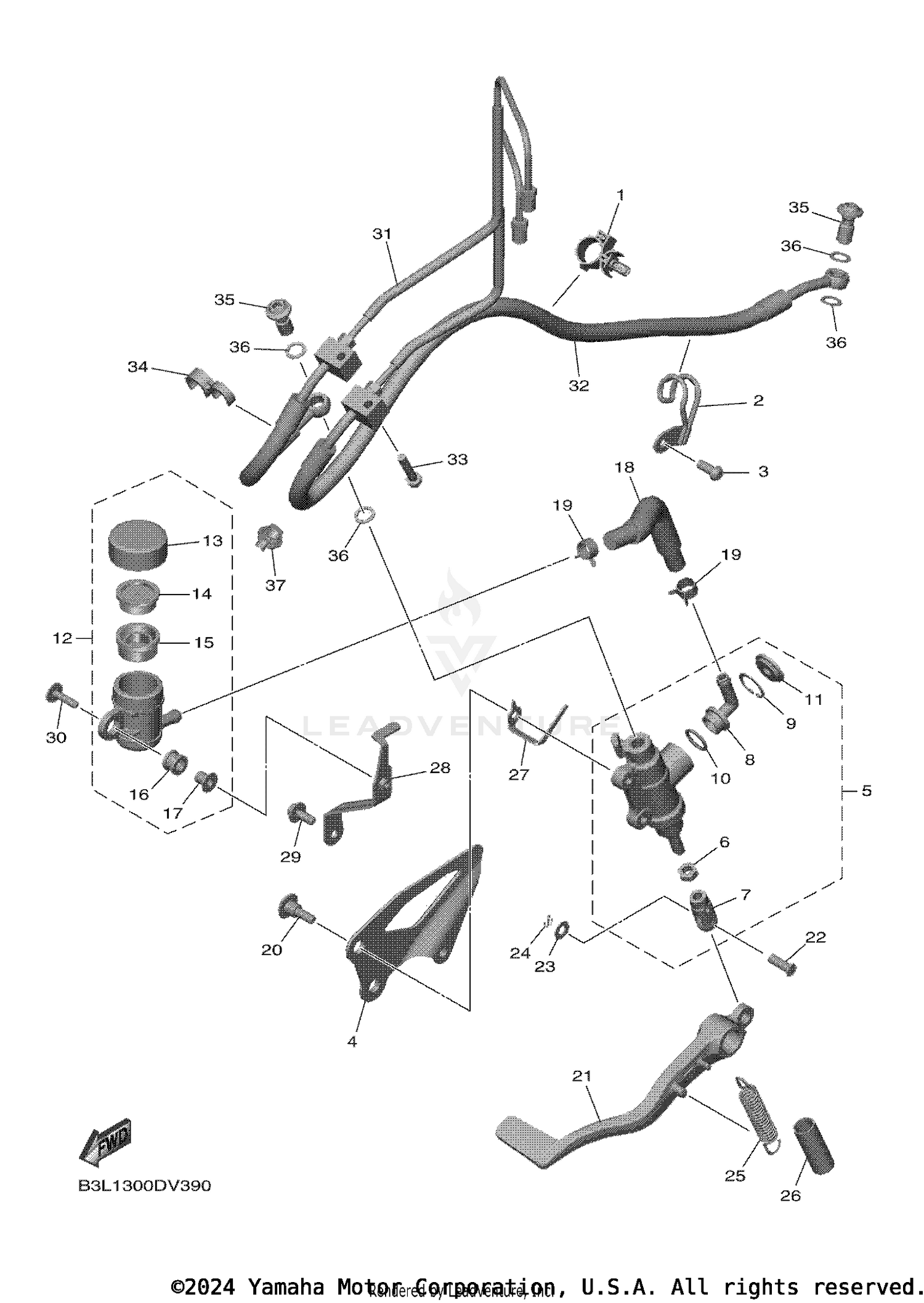

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP
90464-16012-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
HOLDER, BRAKE HOSE 5
2CR-2588F-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE 2
2CR-27446-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR MASTER CYLINDER ASSY.
2CR-2583V-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
JOINT
4XV-27222-01-00
|
$47.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
JOINT
4ML-2582A-50-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
2VN-25866-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, DUST
3FV-2589A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RESERVE TANK ASSY
2CR-25804-50-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
2CR-25852-50-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
3GK-25855-50-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM, RESERVOIR
3GK-25854-50-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
2C0-26326-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-05028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RESERVOIR
2CR-25895-50-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-12085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PEDAL, BRAKE
2CR-27211-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
91702-06018-00
Superseded by 91701-06018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91402-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, TENSION
90506-20193-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE
90446-15386-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
TUBE, STAY 1
2CR-27131-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, RESERVE TANK
2CR-21228-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-06429-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, BRAKE 4
B3L-2581J-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BRAKE 5
B3L-2581K-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CLAMP
90464-13M34-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-12013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
