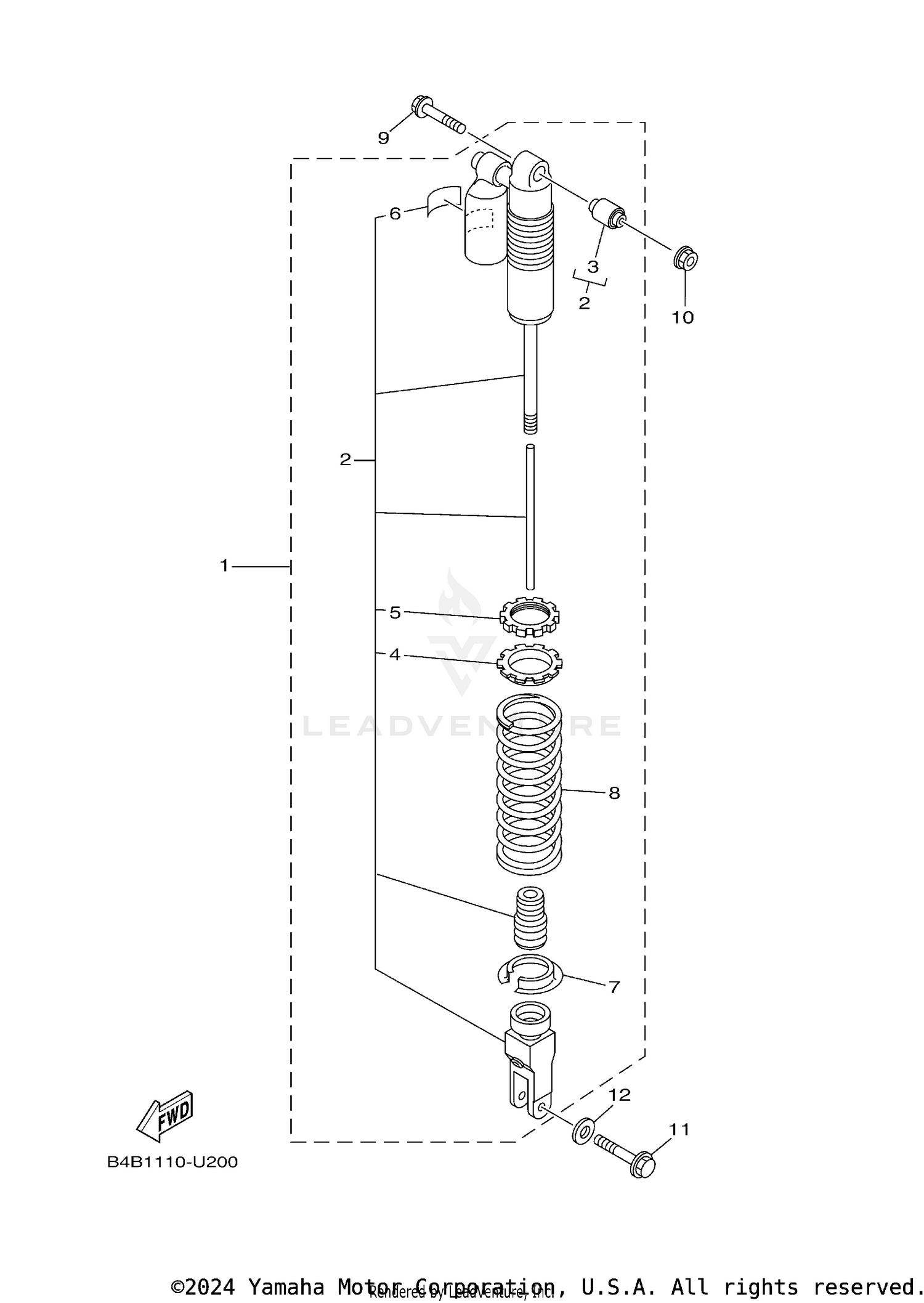

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
B4B-22200-00-00
Superseded by B4B-22200-01-00
|
$496.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER SUB ASSY
B4B-22201-00-00
|
$763.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, REAR SHOCK ABSORBER
4ES-22216-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, SPRING 1
4ES-22214-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT 1
4ES-22251-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, WARNING
4AA-22259-80-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPRING 1
3JD-22214-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING (K=49N/MM)
4ES-22212-F0-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10390-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-10024-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WASHER BASED
90105-10614-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-11016-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
