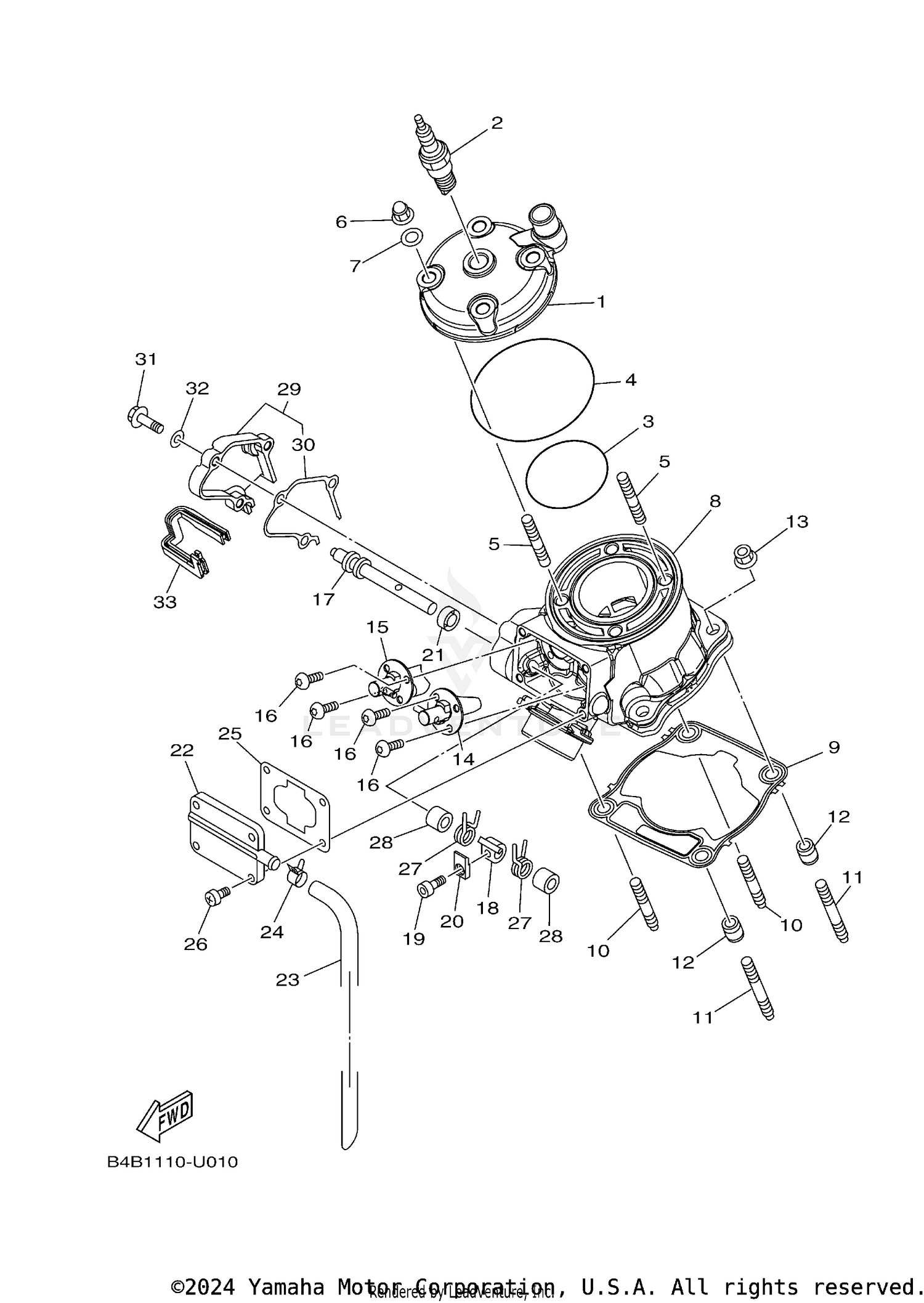

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
B4B-11111-00-00
|
$291.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BR10EG NGK SPLUG 4
94702-00368-00
Superseded by BR1-0EG00-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-56459-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
O-RING
93210-84724-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08027-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-08005-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-080L8-00
|
$3.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CYLINDER 1
B4B-11311-00-00
|
$811.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, CYLINDER
B4B-11351-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-08031-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-08028-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99590-10114-00
|
$5.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
90179-08019-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE ASSY
B4B-1131D-00-00
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE ASSY 2
B4B-1132D-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-05001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT 1
5HD-1131V-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, LINK
4SS-11832-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91312-04010-00
Superseded by 91317-04010-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOLDER
5UN-11395-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93104-08040-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
COVER
4SS-1131M-01-00
|
$86.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIPE, BREATHER 1
4JY-11166-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP(MG5)
90467-13062-00
Superseded by 90467-14117-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
GASKET
1C3-11354-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, BIND
98902-05016-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TORSION
90508-16134-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-08785-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOUSING 1
B4B-11991-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
B4B-11993-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, HOUSING
BR8-11995-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
