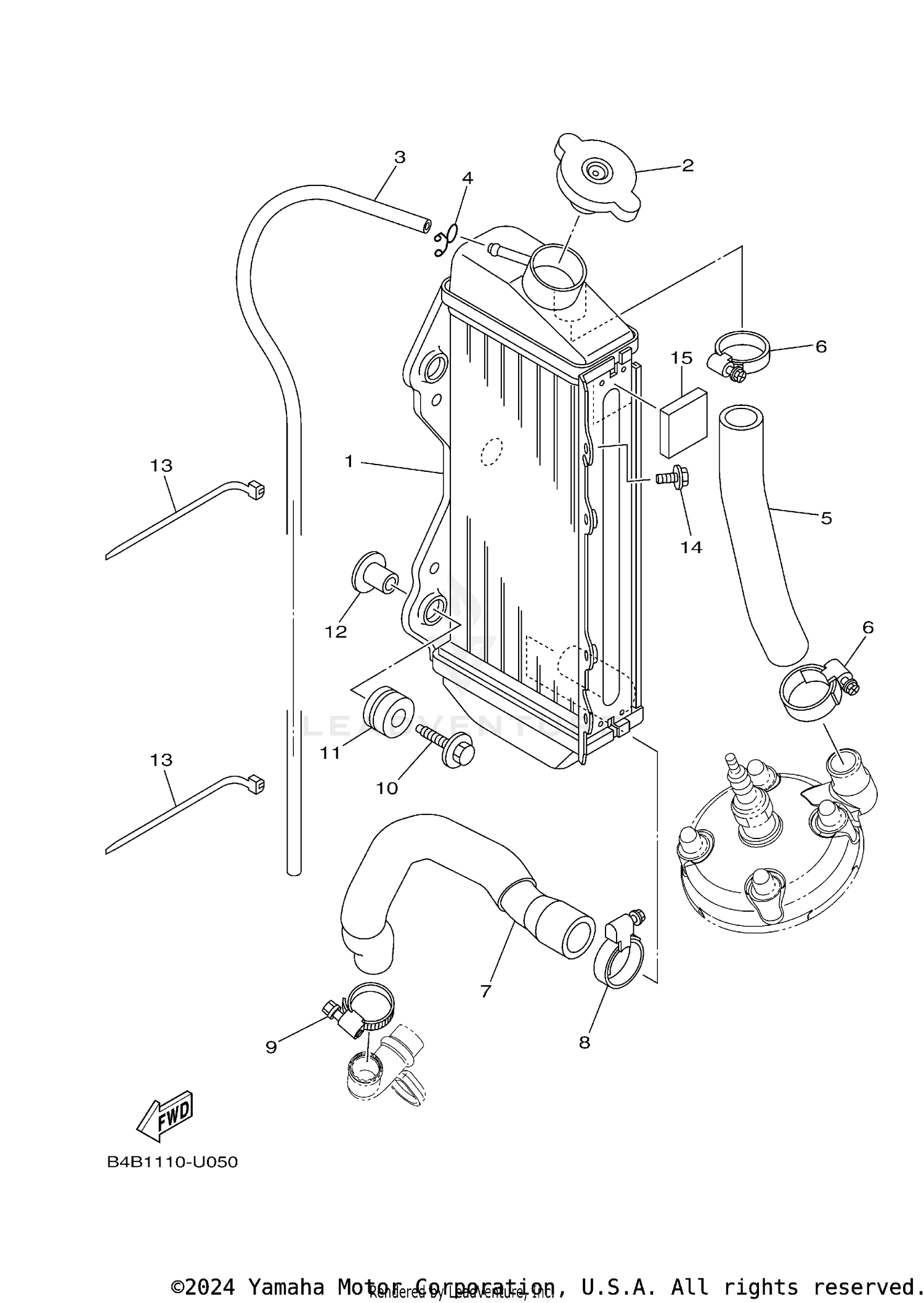

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR COMP
5PA-12461-00-00
|
$515.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIPE, BREATHER
22W-12463-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90467-08002-00
Superseded by 90467-08004-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 1
4ES-12481-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HOSE 2
B4B-12577-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP ASSY
90450-28001-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH WASHER
90119-06262-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-15528-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-25004-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06239-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER 2
14B-28227-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
