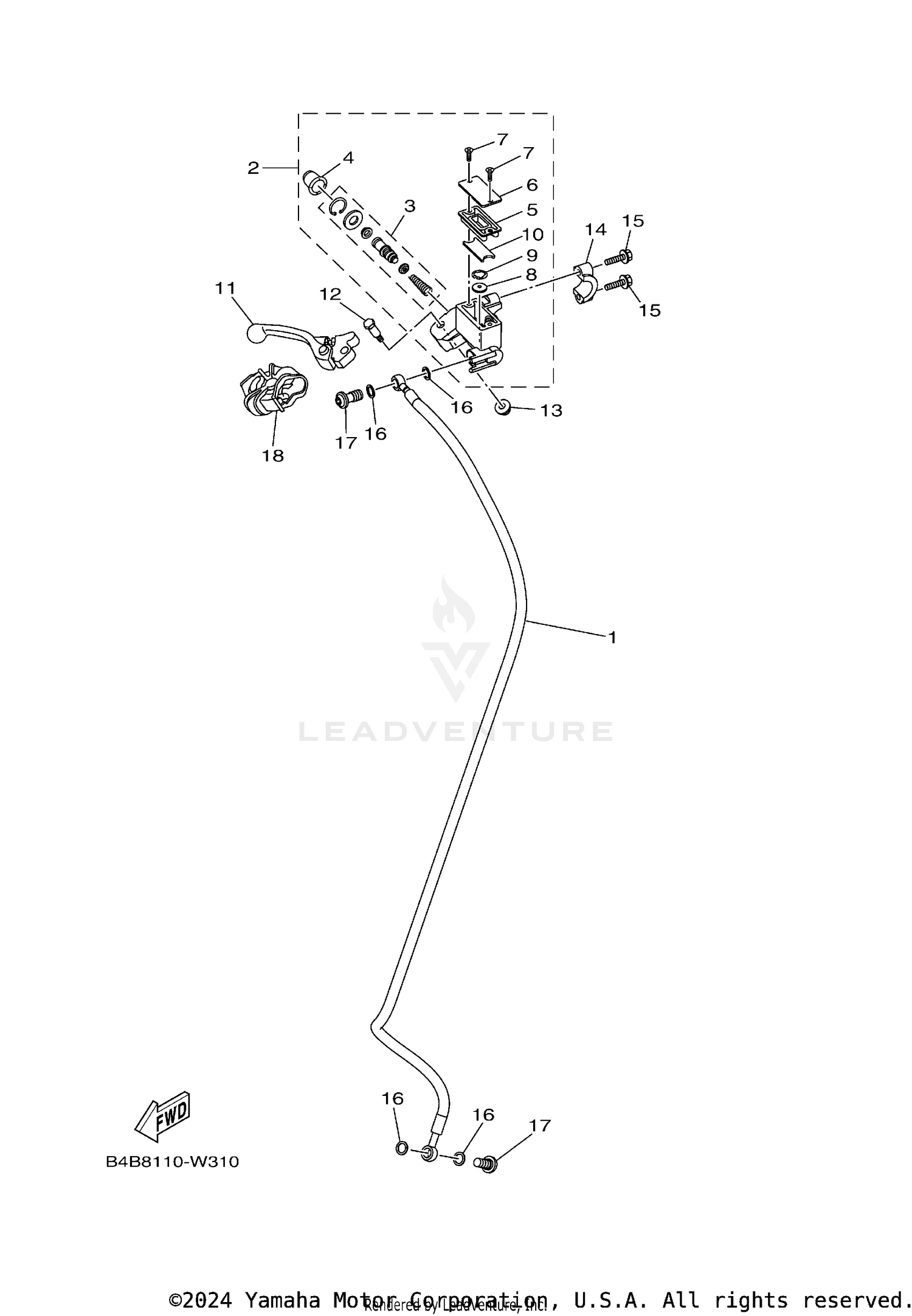

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BRAKE 1
B4B-25872-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER SUB
5XE-W2587-01-00
|
$200.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CYLINDER KIT, MASTER
5NY-W0041-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, MASTER CYLINDER
5NY-25868-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
5XE-25854-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RESERVOIR
5MV-25852-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SEPARATOR ASSY
5CG-25715-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
5CG-2585G-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT, RESERVOIR
5XE-25853-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER 2
5MV-83922-00-00
|
$56.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, LEVER
5MV-2589F-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRACKET, MASTER CYLINDER
5MV-25867-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FITTING
5MV-25833-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, HANDLE LEVER 1
5NY-26372-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
