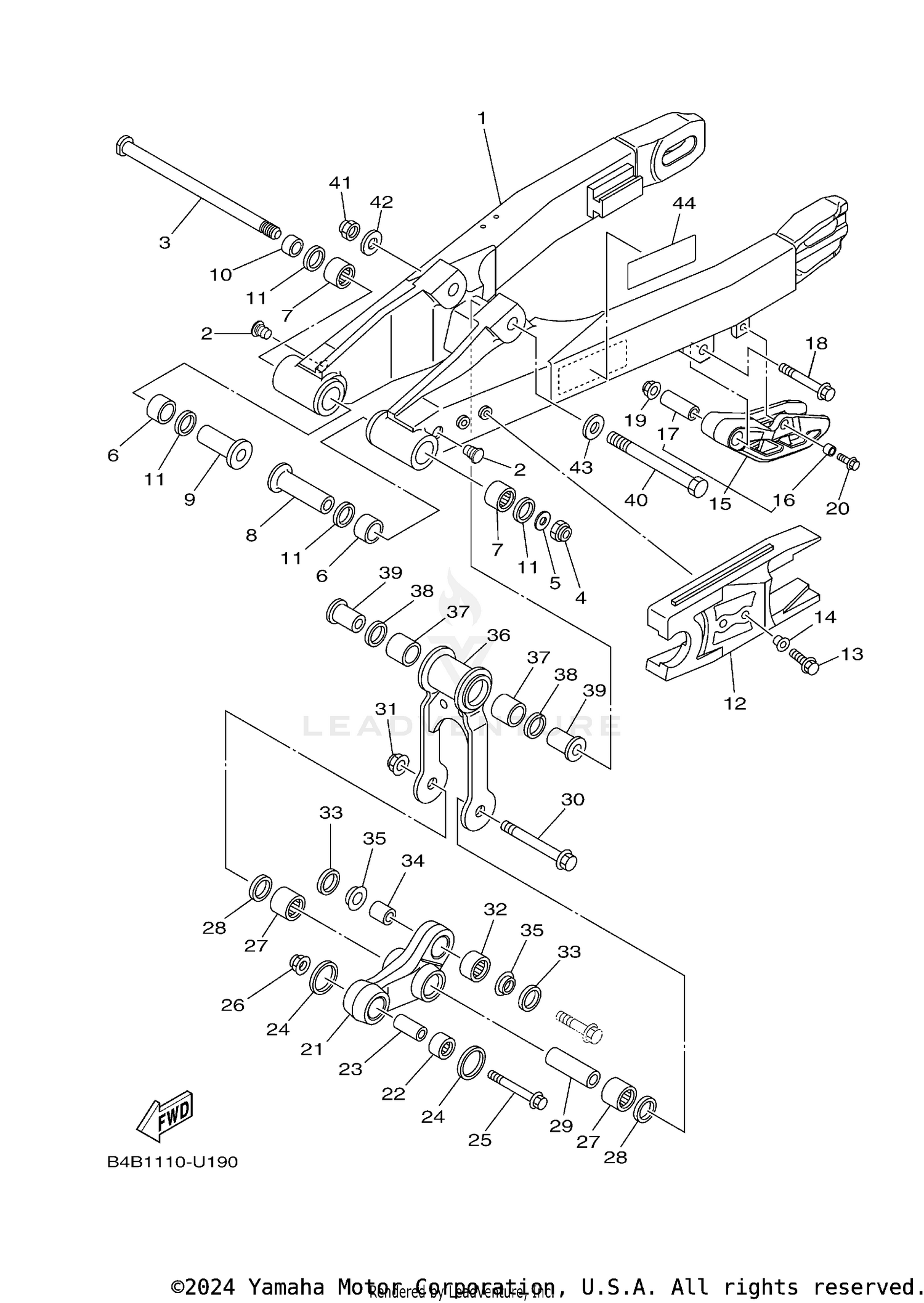

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
B4B-22110-00-00
|
$817.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG
90338-10150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
BR8-22141-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95612-12100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-12032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
90385-17042-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING
93317-21746-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-127J8-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-127J7-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-1200U-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, GUARD
5PA-22151-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE DEEP RE
95E32-06014-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUPPORT, CHAIN
BR8-22199-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06207-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-09002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE DEEP RECESS
95E32-08055-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE DEEP RECESS
95D02-06016-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, RELAY
B4B-2217A-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93315-31759-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COLLAR
90387-10116-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
90105-10582-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING
93317-31771-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93101-17062-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, SOLID
90380-12219-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90109-12015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SELF-LOCKING
95602-12200-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BEARING
5PA-22176-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, DUST
5PA-22475-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BUSH
5PA-22184-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR, DISTANCE
5PA-22253-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROD, CONNECTING 1
4ES-2217F-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93317-31771-00
|
$39.99 | ||
|
Unavailable |
|||
|
#38
OIL SEAL
93101-17062-00
|
$16.49 | ||
|
Unavailable |
|||
|
#39
BUSH, SOLID
90381-12091-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT
90101-12755-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, SELF-LOCKING
90185-12011-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-12047-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-12049-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
LABEL, TIRE
3RV-21668-A0-00
Superseded by 3RV-21668-A1-00
|
$5.49 | ||
|
Unavailable |
|||
