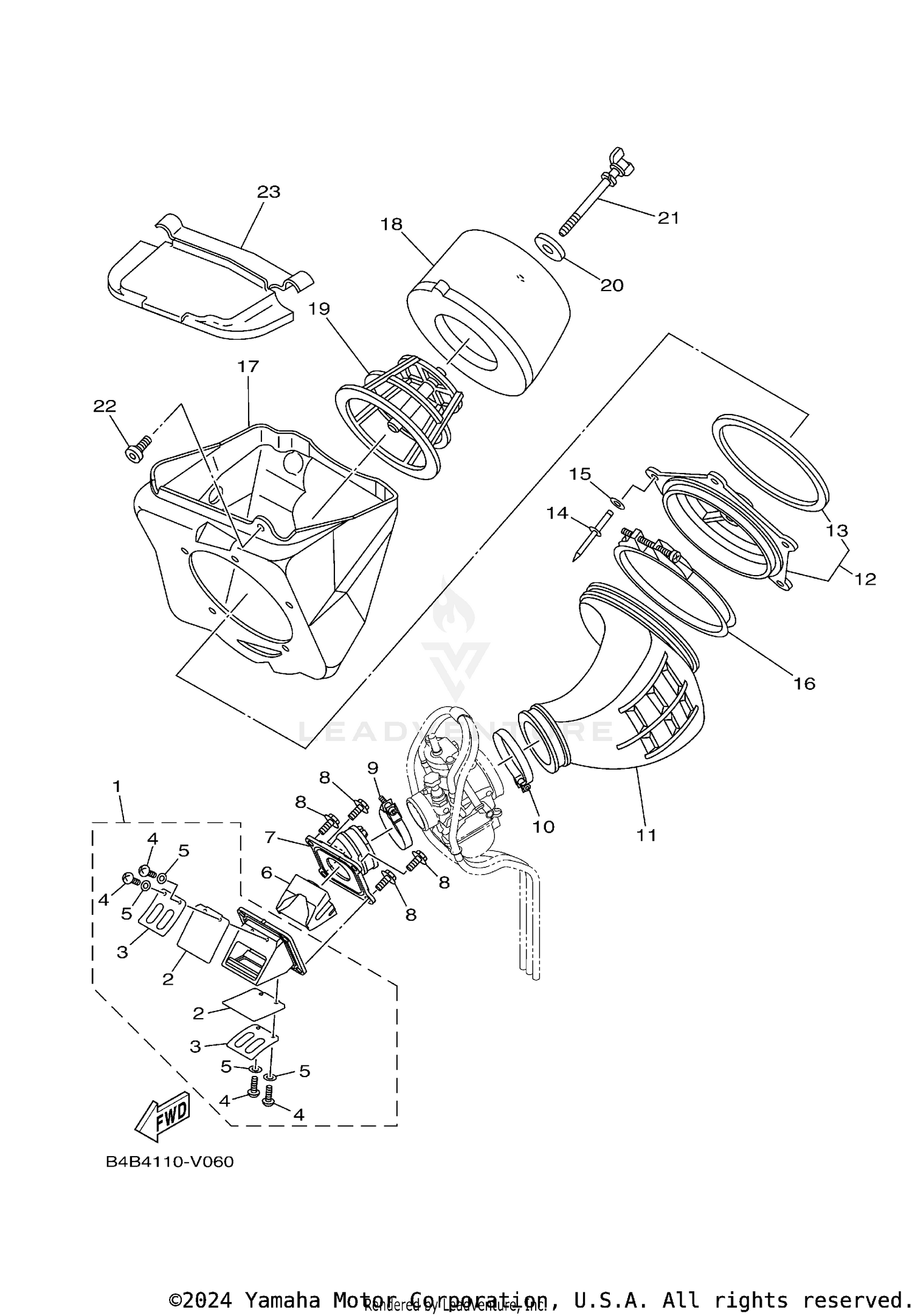

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
BR8-13610-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
BR8-13613-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4ES-13616-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98502-03006-00
Superseded by 98580-03006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92902-03100-00
Superseded by 92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
BR8-13625-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
BR8-13565-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BAND
4TR-13474-02-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-56004-00
Superseded by 90450-56001-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLEANER 1
5PA-14453-01-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, GUIDE
5PA-14459-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
4ES-14462-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RIVET, BLIND
90267-48138-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-043H7-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-99064-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, AIR CLEANER 1
5PA-14411-10-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ELEMENT, AIR CLEANER
5PA-14451-01-00
Superseded by 5PA-14451-02-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GUIDE
5PA-14458-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, WING
90122-06010-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-065F3-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COVER 1
5PA-14417-00-00
Superseded by 5PA-14417-01-00
|
$10.99 | ||
|
Unavailable |
|||
