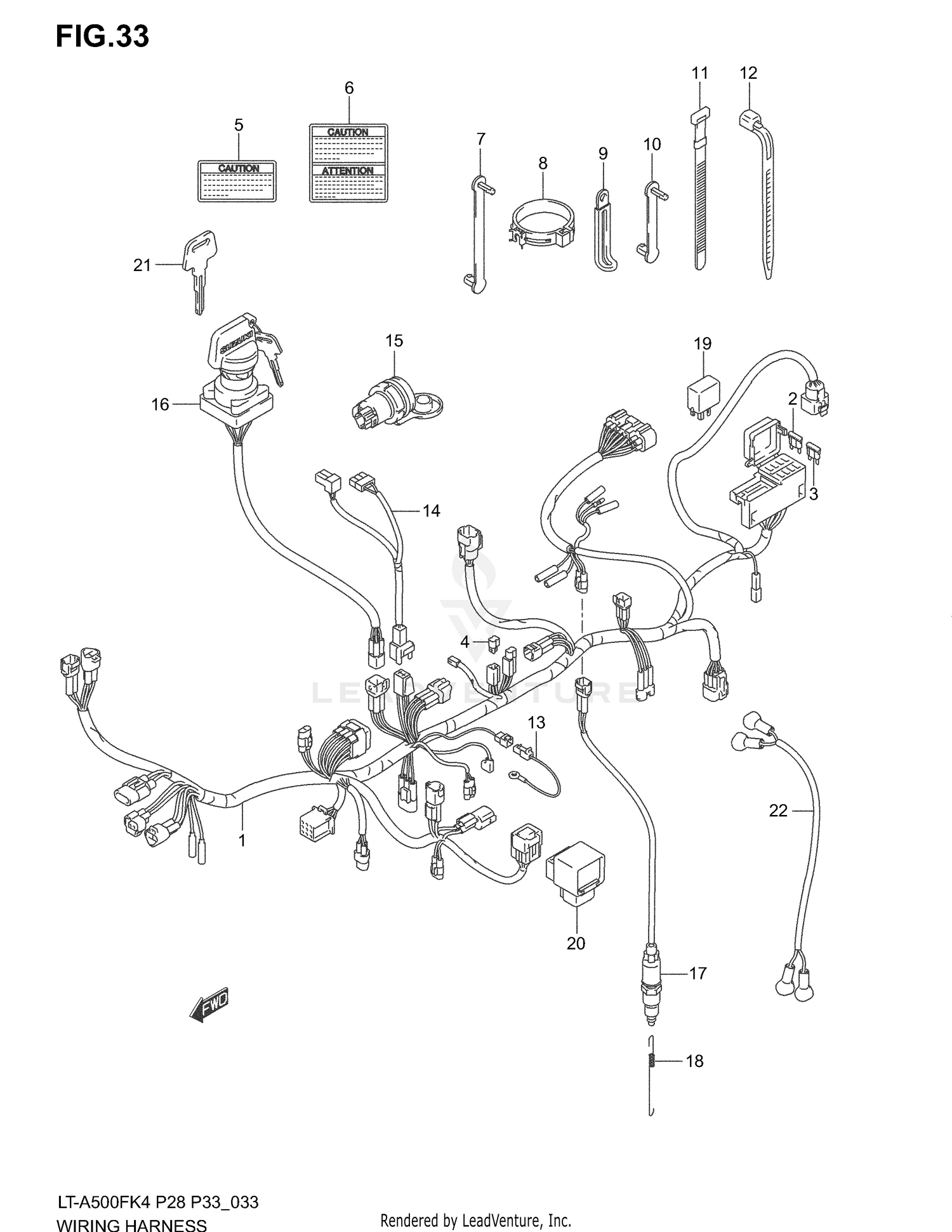

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS
36610-03G51
|
$277.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIODE
32800-16A00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION MAX AMP
38852-09F30
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, CAUTION MAX AMP
38852-03G10
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
36651-48E00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (ID:20)
09403-20403
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (ID:25)
09403-25401
|
$2.48 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#10
CLAMP
09407-03401
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, IGNITION COIL
36851-05D00
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE, FRONT BRAKE SWITCH LEAD
36857-03G00
|
$60.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
TERMINAL, POWER SOURCE
38850-03G00
|
$84.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,IGN
37110-03G00
Superseded by 37110-03G01
|
$161.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY,STOP LAMP
37740-38F00
Superseded by 37740-38F01
|
$129.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
09443-06080
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY,NEUTRAL START
38730-09F00
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY ASSY, DRIVE
38750-03G00
|
$161.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:C)
37146-19B00
|
$10.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:D)
37146-19B10
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:E)
37146-19B20
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:F)
37146-19B30
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, WINCH
33870-38F00
|
$60.77 | ||
|
Unavailable |
|||
