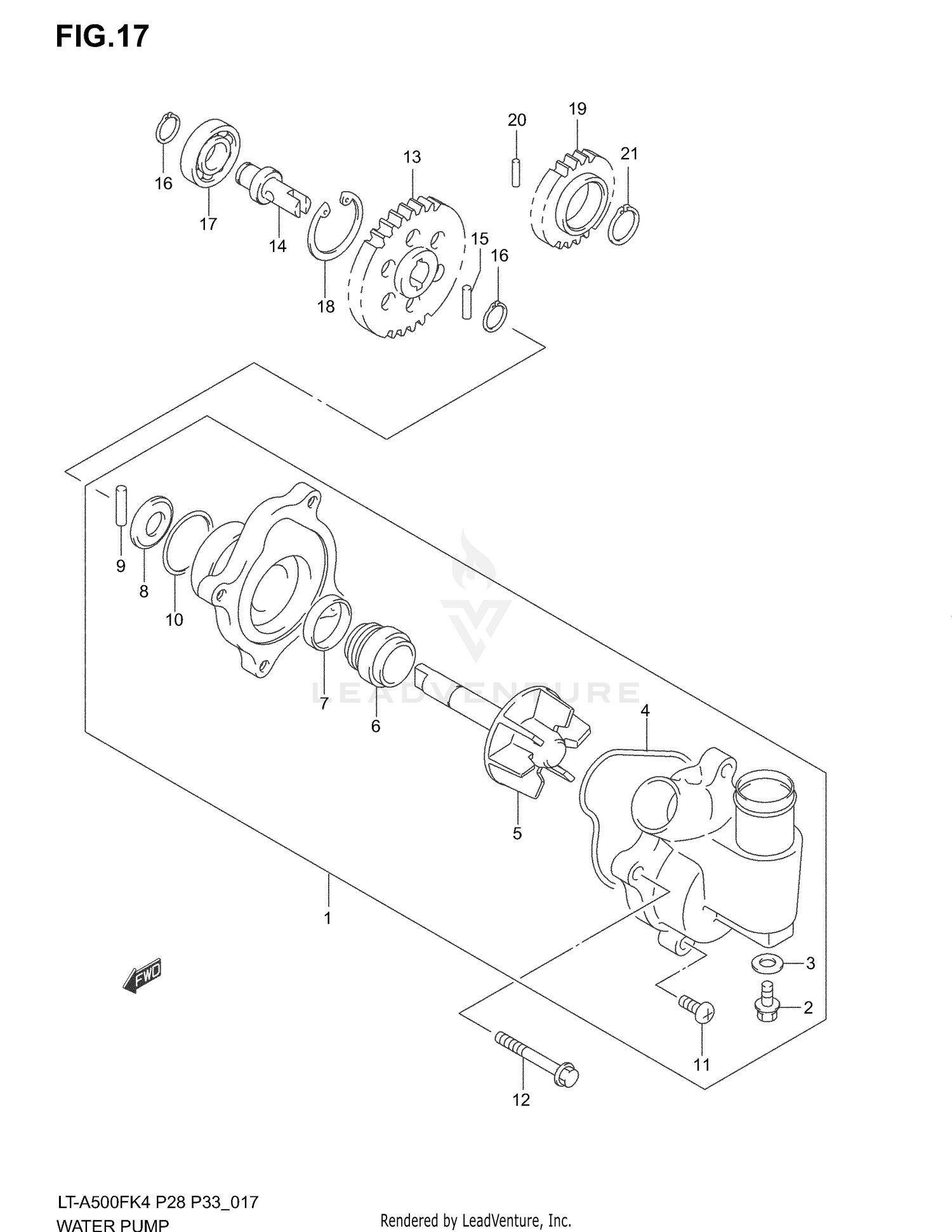

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, WATER
17400-03G00
Superseded by 17400-09F50
|
$333.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
17415-14300
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
O RING
17418-09F50
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER/SHAFT
17491-03G00
|
$60.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SEAL,MECHANICAL
17470-02F00
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
.OIL SEAL (10X21X5)
09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
17481-03G00
|
$2.03 | ||
|
Unavailable |
|||
|
#9
PIN
17482-03G00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-06653
Superseded by 01547-0665B
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, DRIVEN
16331-02F00
|
$78.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, DRIVEN GEAR
17521-09F50
|
$29.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DRIVEN GEAR
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, SHAFT
08110-62000
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP, SHAFT BEARING
08331-41309
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, WATER PUMP DRIVE
16321-44D01
|
$39.41 | ||
|
Unavailable |
|||
|
#20
PIN, DRIVE GEAR
04221-04069
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
08331-31226
Superseded by 08331-31229
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
