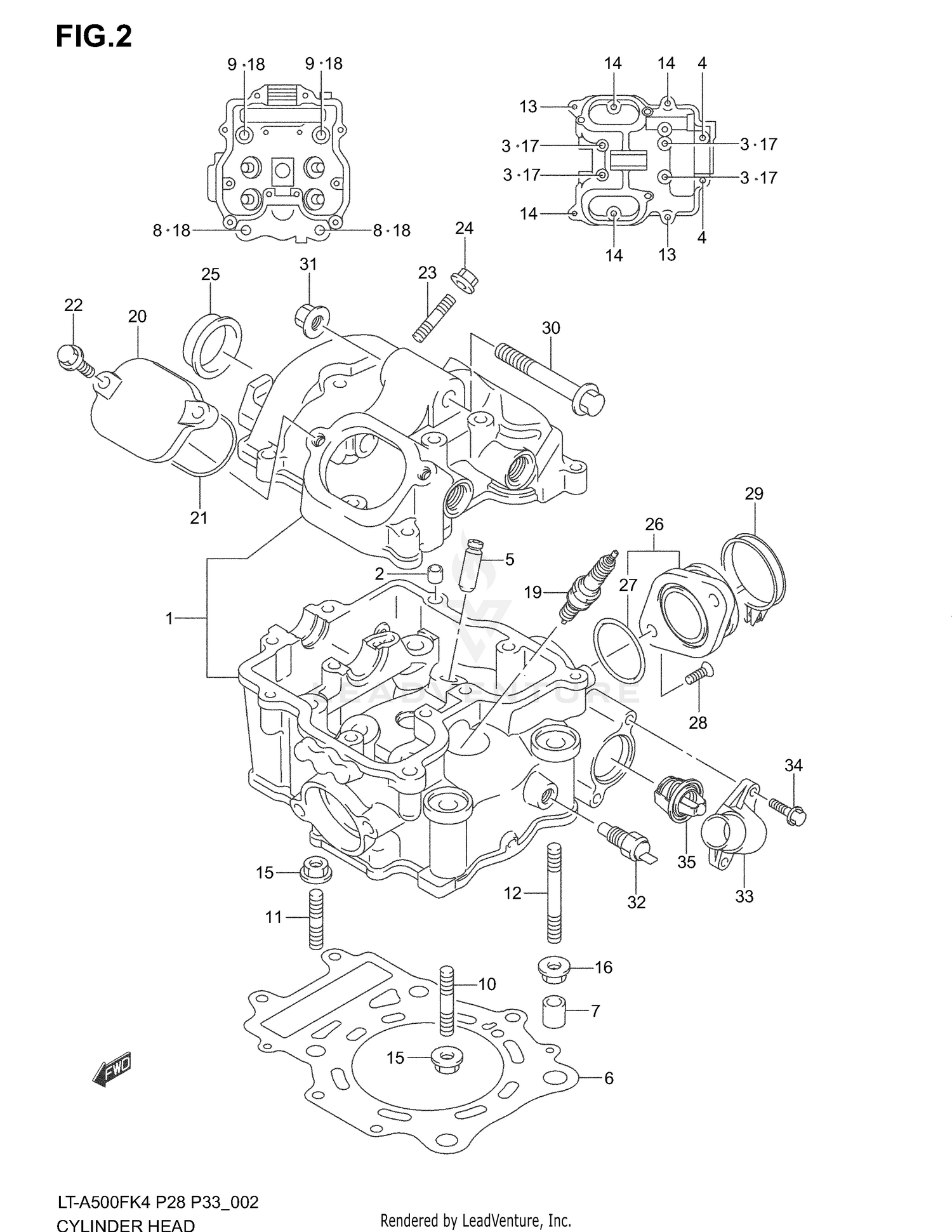

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-44D00
|
$1,421.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X55)
09103-06102
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-06303
Superseded by 01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,VALVE (OS:0.3)
11115-14D71
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-09F00
|
$48.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT (10X190)
09103-10179
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X200)
09103-10180
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,STUD
01421-06253
Superseded by 01421-0625A
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,STUD
01421-06503
Superseded by 01421-0650B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
STUD BOLT
01421-08503
Superseded by 01421-0850A
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X35)
09103-06108
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET
09168-10017
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,CR6E)
09482-00528
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (DENSO,U20ESR-N)
09482-00529
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP,INSPECTION
11175-47D00
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
.O RING,INSPECTION CAP
11177-14D01
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, STUD
09108-06102
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
Unavailable |
|||
|
#25
PLUG, HEAD
09241-25007
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE ASSY,INTAK
13101-03G00
Superseded by 13101-03G01
|
$79.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
09119-06092
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#29
.CLAMP
09402-52208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (8X60)
09103-08217
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
08319-31088
Superseded by 08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
SWITCH ASSY, WATER TEMP
34850-03G00
Superseded by 34850-03G20
|
$79.46 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, THERMOSTAT
17661-44D00
|
$50.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Unavailable |
|||
|
#35
THERMOSTAT,WATE
17670-08D10
Superseded by 17670-08D11
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
