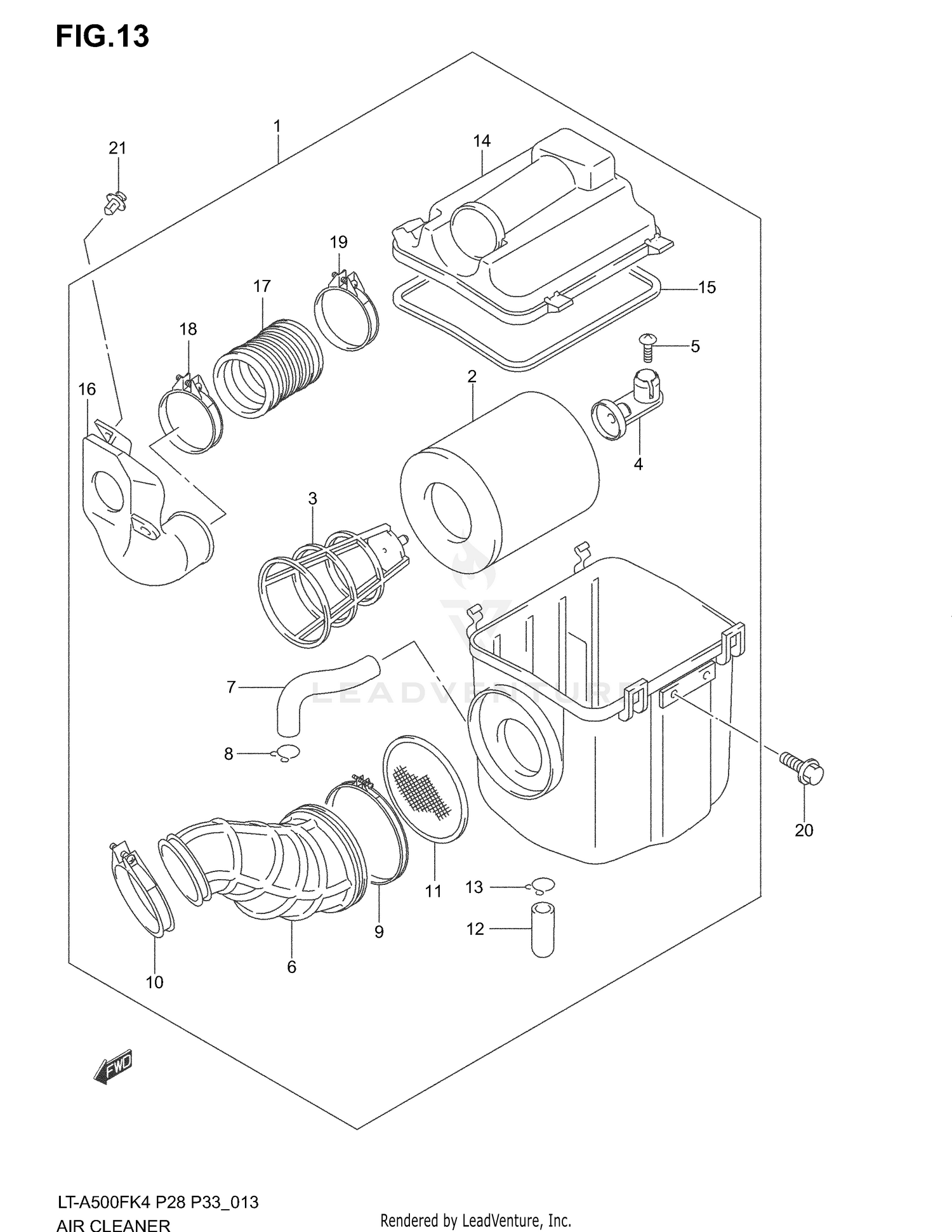

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-03G10
|
$186.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER
13780-07G00
|
$39.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOLDER
13791-03G00
|
$11.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STOPPER, HOLDER
13792-03G00
|
$9.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
TUBE, OUTLET
13881-03G00
|
$69.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, BREATHER
13853-03G10
|
$11.37 | ||
|
Unavailable |
|||
|
#8
CLIP
09401-14301
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (CLEANER SIDE)
13826-38F10
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (CARBURETOR SIDE)
13826-38F20
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
.TRAP,FLAME
13810-03G00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PLUG,DRAIN
13878-09F00
Superseded by 13878-09F01
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
09401-14301
|
$2.53 | ||
|
Unavailable |
|||
|
#14
CAP, AIR CLEANER
13741-38F10
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
13746-03G00
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUCT,INLET
13896-03G00
Superseded by 13896-03G01
|
$46.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
..JOINT,INLET
13891-03G00
Superseded by 13891-03G01
|
$17.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
13826-38F20
|
$12.56 | ||
|
Unavailable |
|||
|
#19
..CLAMP
09402-60208
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
