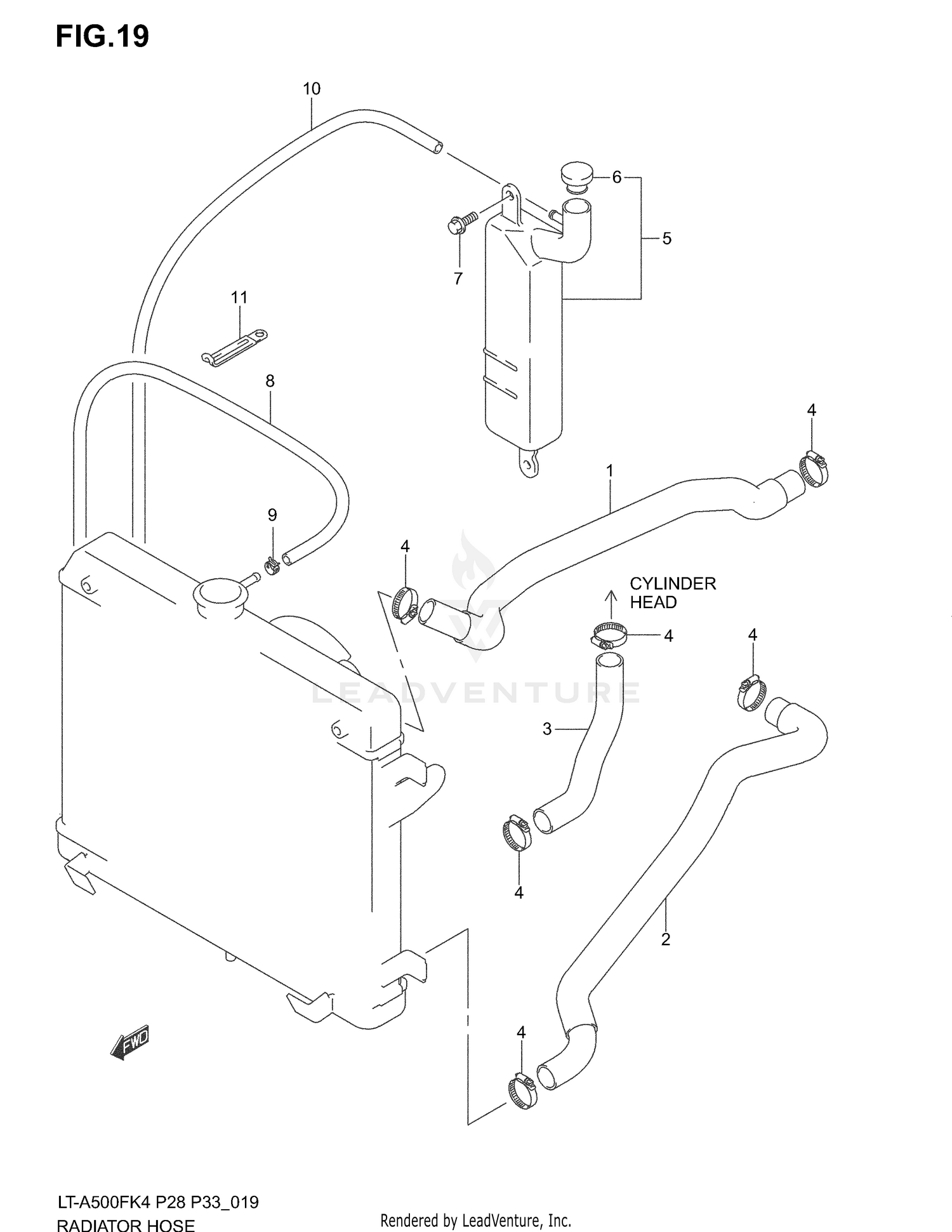

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RADIATOR INLET
17851-03G00
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, RADIATOR OUTLET
17852-03G00
|
$58.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, WATER PUMP OUTLET
17854-03G00
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-32511
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK ASSY, RESERVOIR
17910-03G00
|
$79.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, RESERVOIR TANK
17932-12C00
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
09116-06168
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE SET,RSVR TANK INLET
17981-42E00
Superseded by 17900-27810
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (5X9X600)
09352-50901-600
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
