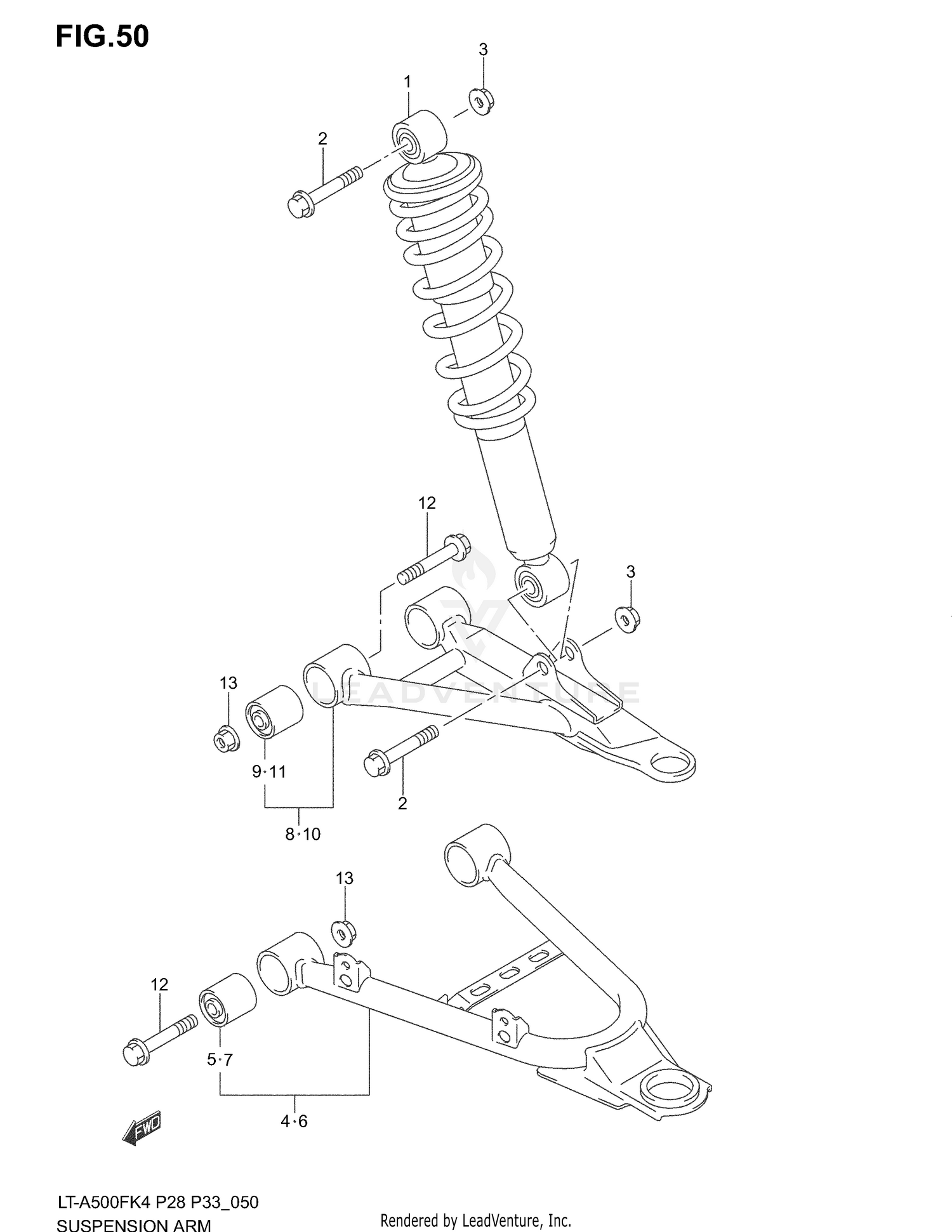

Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, FRONT SHOCK (BLACK)
52100-03G50-019
|
$131.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM SET, SUSPENSION LOWER RH
52410-03830
|
$415.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM SET, SUSPENSION LOWER LH
52420-03830
|
$316.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#8
ARM SET, SUSPENSION UPPER RH
52430-03830
|
$311.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#10
ARM SET, SUSPENSION UPPER LH
52440-03830
|
$424.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#12
BOLT (10X60)
09103-10301
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Unavailable |
|||
