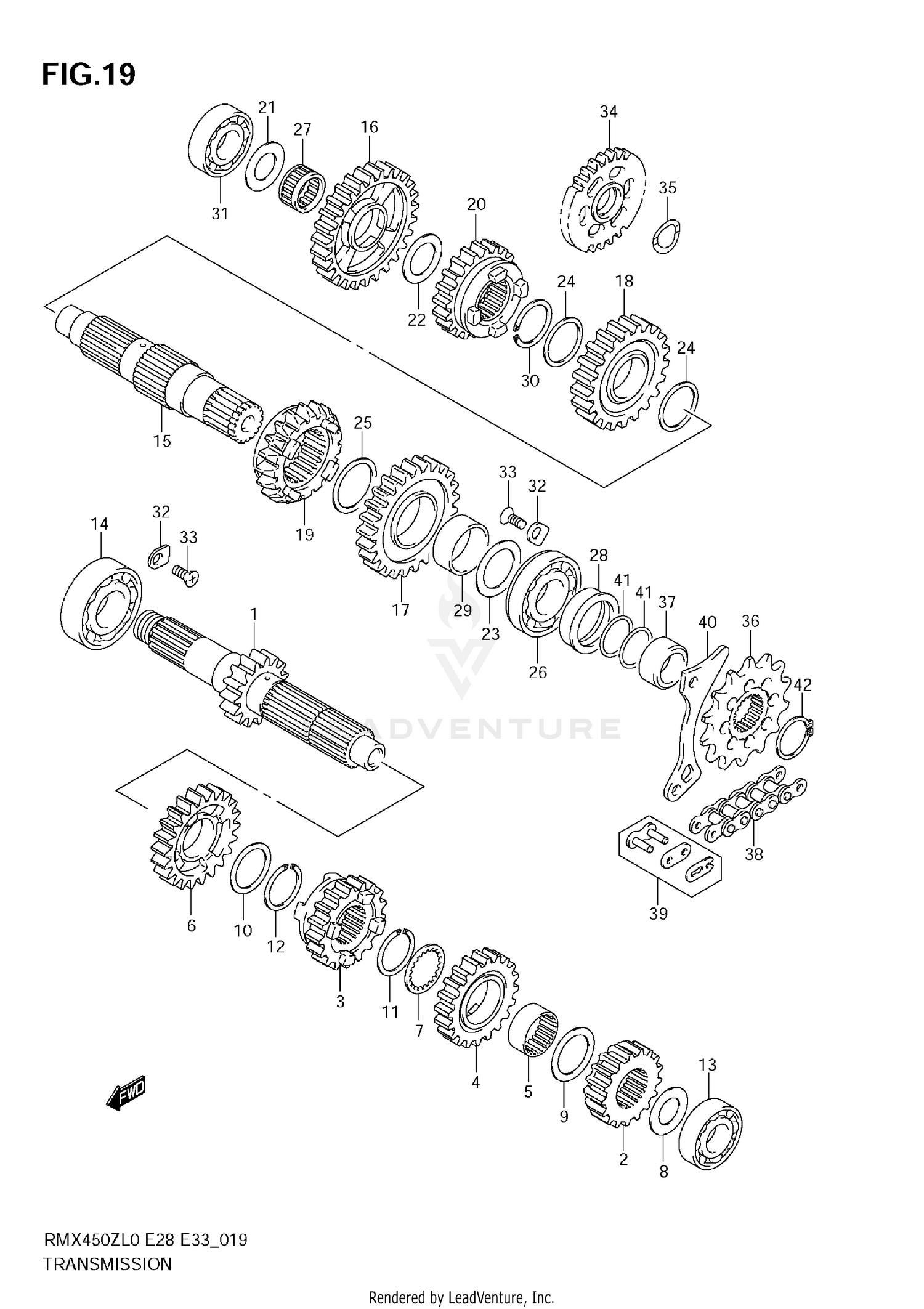

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:15)
24120-02J00
|
$208.28 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:17)
24221-02J00
|
$116.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD DRIVE (NT:17)
24231-02J00
|
$153.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH DRIVE (NT:20)
24241-02J00
|
$131.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, 4TH DRIVE GEAR
24242-37F00
|
$35.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH DRIVE (NT:22)
24251-02J00
|
$108.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, 4TH DRIVE GEAR, R
09167-25026
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, 2ND DRIVE GEAR
09181-17223
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, 4TH DRIVE GEAR, L
09181-25167
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, 5TH DRIVE GEAR
09181-25111
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP, 4TH DRIVE GEAR
09380-25010
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP, 5TH DRIVE GEAR
09380-25010
|
$3.46 | ||
|
Unavailable |
|||
|
#13
BEARING
08123-62030
Superseded by 08123-6203A
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (25X52X15)
08143-62057
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, DRIVE
24131-28H00
|
$259.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 1ST DRIVEN (NT:27)
24311-02J00
|
$117.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 2ND DRIVEN (NT:25)
24321-02J00
|
$114.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 3RD DRIVEN (NT:21)
24331-02J00
|
$141.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH DRIVEN (NT:21)
24341-02J00
|
$139.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 5TH DRIVEN (NT:20)
24351-02J00
|
$126.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, 1ST DRIVEN GEAR, R
09181-17223
|
$3.79 | ||
|
Unavailable |
|||
|
#22
WASHER, 1ST DRIVEN GEAR, L
09181-20195
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, 2ND DRIVEN GEAR, L
09181-24005
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, 3RD DRIVEN GEAR
09181-25111
|
$4.47 | ||
|
Unavailable |
|||
|
#25
WASHER, 2ND DRIVEN GEAR, R
09181-27015
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, DRIVE SHAFT, L
09262-24001
|
$98.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARIG, 1ST DRIVEN GEAR
09263-20107
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL,OIL (31X40X8.5)
09289-31003
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, 2ND DRIVEN GEAR
09300-27005
|
$21.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP, 2ND DRIVEN GEAR, R
09380-25010
|
$3.46 | ||
|
Unavailable |
|||
|
#31
BEARING
08123-62030
Superseded by 08123-6203A
|
$27.68 | ||
|
Unavailable |
|||
|
#32
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, DRIVE SHAFT BRG
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
GEAR, KICK STARTER IDLE
26260-35G00
|
$180.33 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, KICK IDLE
26264-28H00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPROCKET, ENGINE (NT:13)
27511-35G30
|
$65.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPROCKET, ENGINE (NT:14)
27511-35G20
|
$65.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPACER,ENGINE SPROCKET
27531-35G01
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN ASSY, DRIVE
27600-02J00-114
|
$160.67 | ||
|
Unavailable |
|||
|
#39
JOINT SET, CHAIN
27620-02J00
|
|||
|
Unavailable |
|||
|
#40
PLATE, FRONT CHAIN GUIDE
27641-02J00
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING (D:1.9,ID:21.8)
09280-21010
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#42
CIRCLIP, ENGINE SPROCKET
08331-3124A
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
