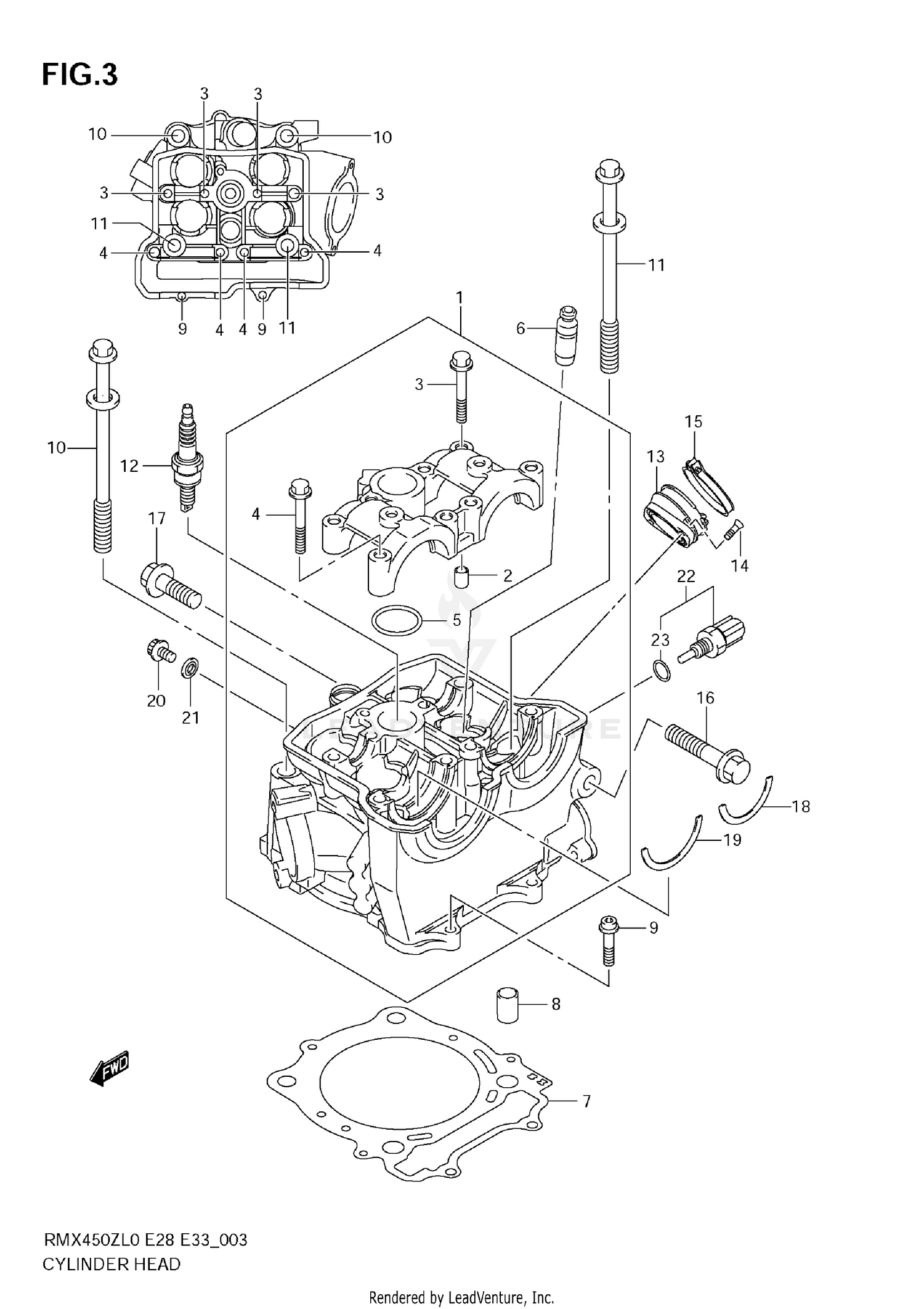

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-02J00
|
$1,320.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, CAMSHAFT HOUSING
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, CAMSHAFT HOUSING (6X40)
09103-06266
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, CAMSHAFT HOUSING (6X45)
09103-06293
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING
09280-26007
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE,VALVE (OS:0.3)
11115-45G70
|
$42.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET,CYLINDER HEAD
11141-28H00
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CYL HEAD KNOCK
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, CYLINDER HEAD (L25)
07120-0625A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,CYLINDER HEAD (L:140)
11117-28H00
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,CYLINDER HEAD (L:120)
11161-45G00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, SPARK (CR8EIB-10)
09482-00584
|
$14.79 | ||
|
Unavailable |
|||
|
#13
PIPE, INTAKE
13101-02J00
|
$50.03 | ||
|
Unavailable |
|||
|
#14
BOLT
02122-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, INTAKE PIPE
13170-35G00
Superseded by 13170-35G01
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, ENG MTG, LH (10X43)
09103-10116
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, ENG MTG, RH (10X30)
09103-10359
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
C RING, INTAKE
12749-35G01
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
C RING, EXHAUST
12749-10H00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07120-0610A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SENSOR, WATER TEMP
13650-14G00
|
$69.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
.O RING
13655-14G00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
