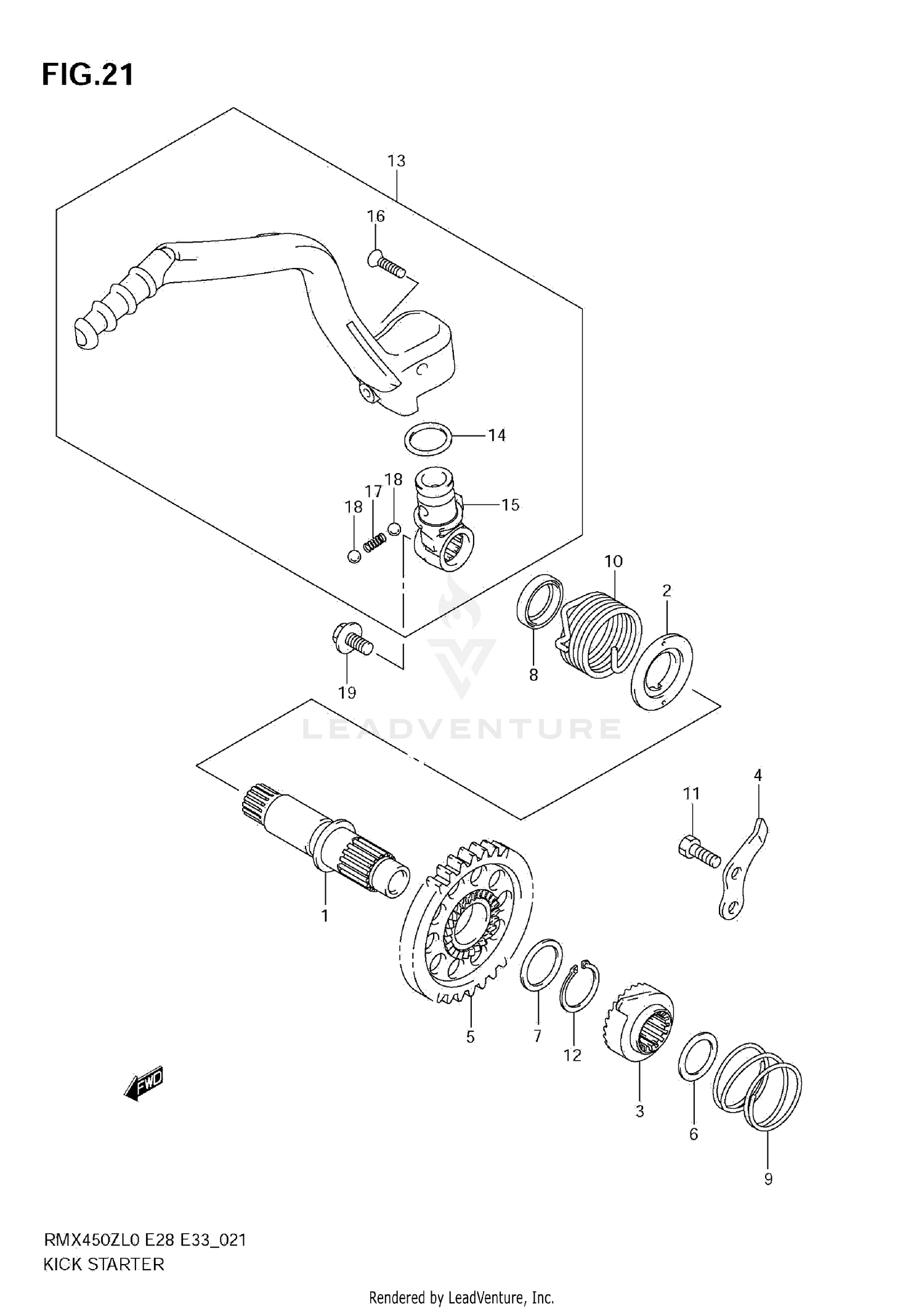

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,KICK STARTER
26211-28H00
|
$123.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,KICK STARTER SFT SPRING
26221-35G00
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
STARTER,KICK
26231-28H00
|
$67.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE,KICK STARTER
26232-28H00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, KICK STARTER DRIVE
26240-35G00
|
$148.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (17X24X0.5)
09181-17130
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (20X26X1)
09181-20139
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
.OIL SEAL (20X27X5)
09283-20031
|
$6.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, KICK STARTER
09440-32002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, KICK STARTER SHAFT
09448-38007
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, KICK STARTER STOPPER
01500-0612A
|
$2.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CIRCLIP, KICK START DRIVE GEAR
08331-3120A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER ASSY,KICK
26300-28H20
Superseded by 26300-28H21
|
$189.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O-RING
26313-28E20
Superseded by 26313-28E21
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
.JOINT,KICK STARTER LEVER
26331-28H20
|
$59.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (6X27.5)
09127-06016
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, KICK STARTER LEVER
09440-05031
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
06111-07004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (8X14)
09103-08522
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
