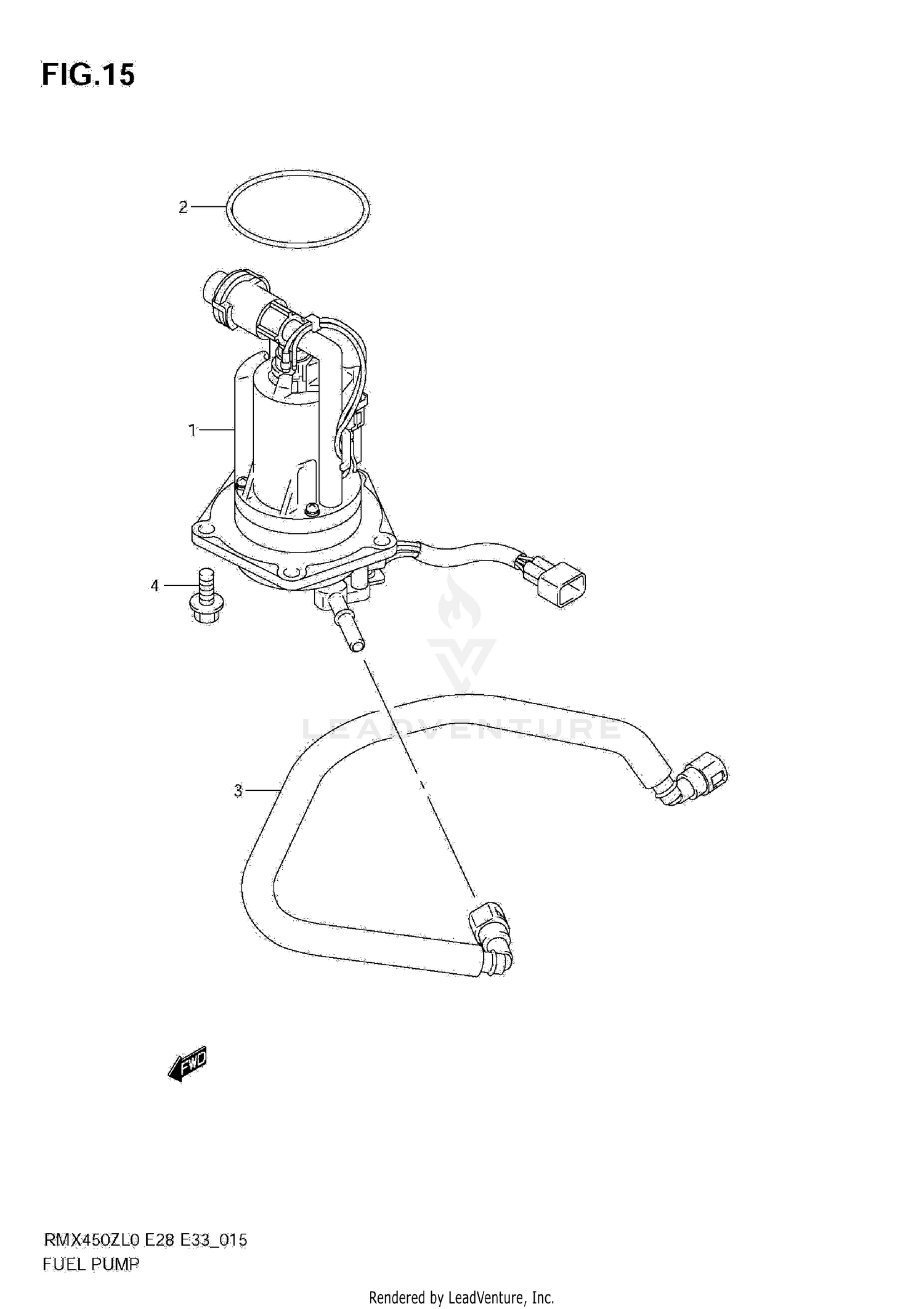

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,FUEL
15100-02J00
Superseded by 15100-02J01
|
$636.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING,FUEL PUMP
15111-28H00
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, FUEL
15810-28H00
Superseded by 15810-28H12
|
$65.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
