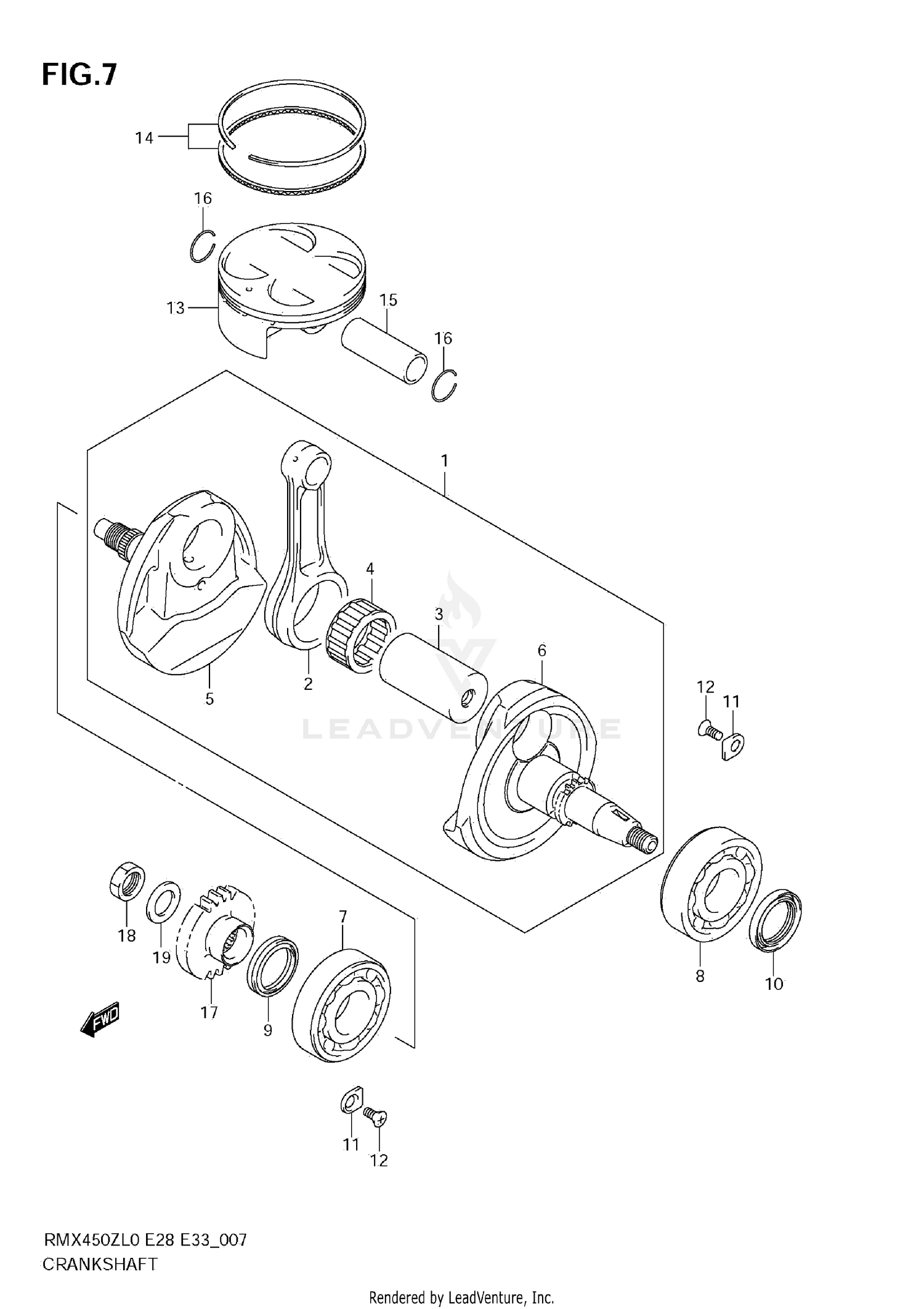

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-02J00
Superseded by 12200-02J01
|
$881.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, CONNECTING
12160-28H00-0B0
|
$230.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
12210-35G02
Superseded by 12210-35G03
|
$105.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (34X42X20)
09263-34012-0B0
Superseded by 09263-34014-0B0
|
$152.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT, RH
12220-02J00
|
|||
|
Unavailable |
|||
|
#6
CRANKSHAFT, LH
12261-02J00
|
|||
|
Unavailable |
|||
|
#7
BEARING, RH
09262-30115
|
$96.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, LH
09262-32017
|
$144.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,OIL (30X40X7)
09283-30061
Superseded by 09283-30076
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL,OIL
09283-32037
Superseded by 09283-32044
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON
12111-28H10-0F0
|
$294.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING SET,PISTON
12140-28820
|
$53.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PISTON
12151-35G01
|
$24.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING,SNAP
09381-19001
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR,PRIMARY DRIVE (NT:24)
21111-28H00
|
$95.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09140-16036
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09164-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
