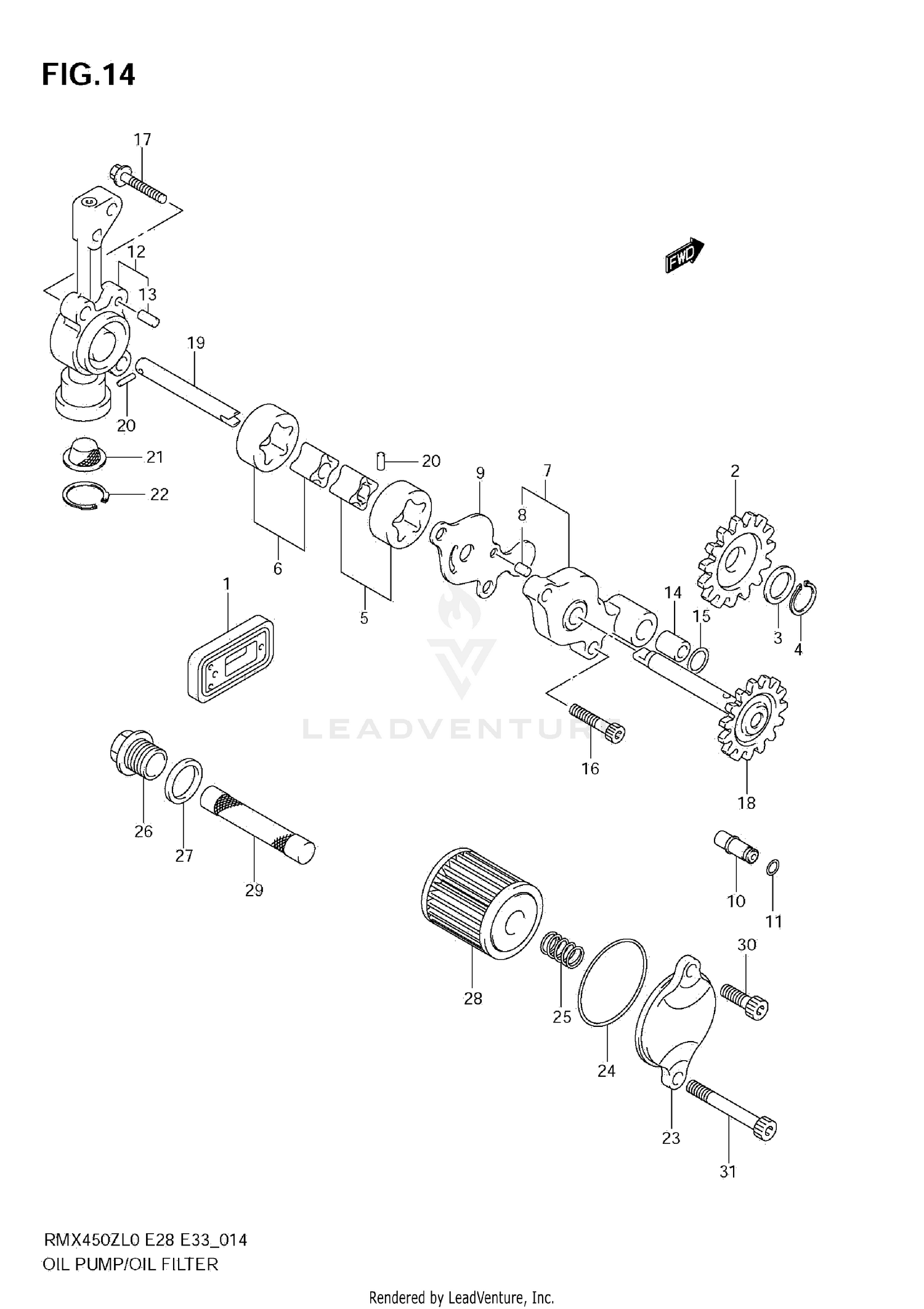

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE ASSY, OIL REED
13150-28H00
|
$48.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,OIL PUMP IDLE (NT:15)
16321-28H00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
09181-12130
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ROTOR SET,OIL PUMP NO.1
16410-35G00
|
$49.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR SET,OIL PUMP
16410-45G00
|
$52.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER,OIL PUMP NO.1
16430-28H00
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,OIL PUMP NO.1
16432-35G10
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY, OIL RELIEF
16440-28H00
|
$83.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:1.2,ID:4.7)
09280-05007
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, OIL PUMP NO.2
16450-28H01
|
$70.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PIN
04221-04089
|
$1.40 | ||
|
Unavailable |
|||
|
#14
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O-RING (D:1.9,ID:8.6)
09280-09005
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
07130-0520B
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
09103-06250
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SHAFT,OIL PUMP DRIVEN GEAR (N
16440-35G10
|
$86.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT,OIL PUMP NO.2
16443-28H00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
09261-02008
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
STRAINER,OIL PUMP NO.2
16530-28H00
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
08331-4119A
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP,ENG OIL FILTER OUTER
16315-35G30
|
$24.46 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (D:2,ID:38.5)
09280-39001
Superseded by 09280-39002
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
09440-10038
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, ENG OIL STRAINER
16316-10H01
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
FILTER, ENG OIL
16510-35G00
|
$12.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
STRAINER, ENGINE OIL
16520-10H00
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
09103-06234
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
