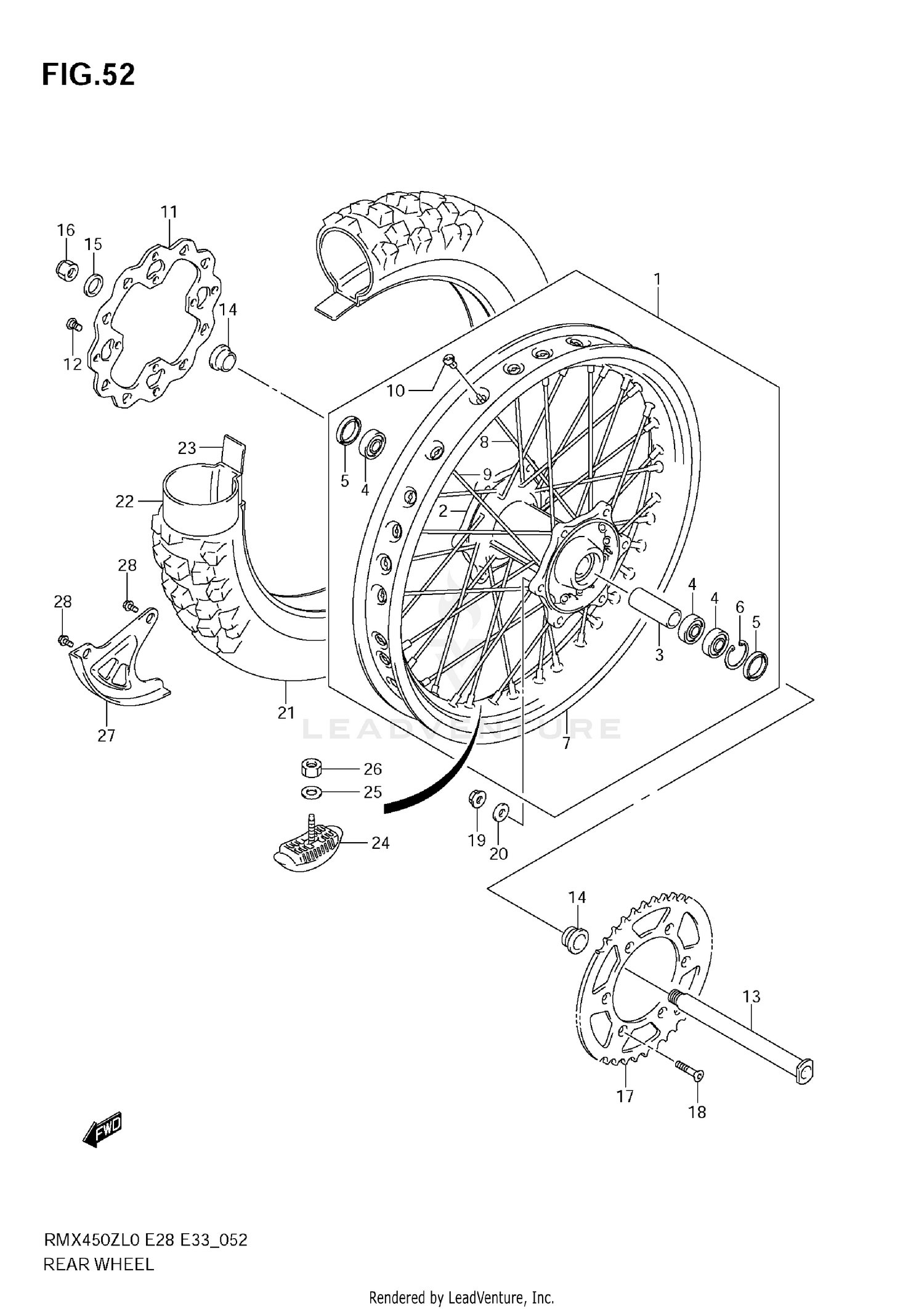

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL ASSY, REAR
64100-02J00
|
$1,202.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
.HUB,REAR
64111-35G20
Superseded by 64111-35G30
|
$304.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SPACER,REAR HUB BEARING
64731-35G01
|
$44.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (25X42X9)
09262-25139
Superseded by 09262-25192
|
$50.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,OIL (32X43X7)
09283-32045
Superseded by 09283-32049
|
$15.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-4142A
Superseded by 08331-41429
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM, REAR WHEEL (1.8X2.15)
65311-02J00
|
$335.60 | ||
|
Unavailable |
|||
|
#8
SPOKE, WHEEL INNER
65321-02J00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE, WHEEL OUTER
65322-02J00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NIPPLE,REAR WHEEL
65325-35G10
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISC,REAR BRAKE
69211-28H10
|
$234.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (8X15)
09139-08022
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE,REAR
64711-35G01
Superseded by 64711-35G10
|
$131.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
64751-35G00
Superseded by 64751-35G01
|
$40.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-22081
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-22007
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, REAR
64511-02J00
|
$233.92 | ||
|
Unavailable |
|||
|
#18
SCREW (8X30.5)
09120-08017
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
09159-08133
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09160-08082
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE, REAR (110/100-18) (DUNLOP) 110/100-18 64M
65110-29F00
|
$284.54 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE ASSY, WHEEL INNER
65200-29F00
|
$85.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, INNER TUBE
65261-44AF0
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER,BEAD (2.15)
65270-29F00
|
$61.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,LOCK
08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08310-0008A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, REAR DISC
69231-37F11
Superseded by 69231-37F12
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (6X12)
09116-06197
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
