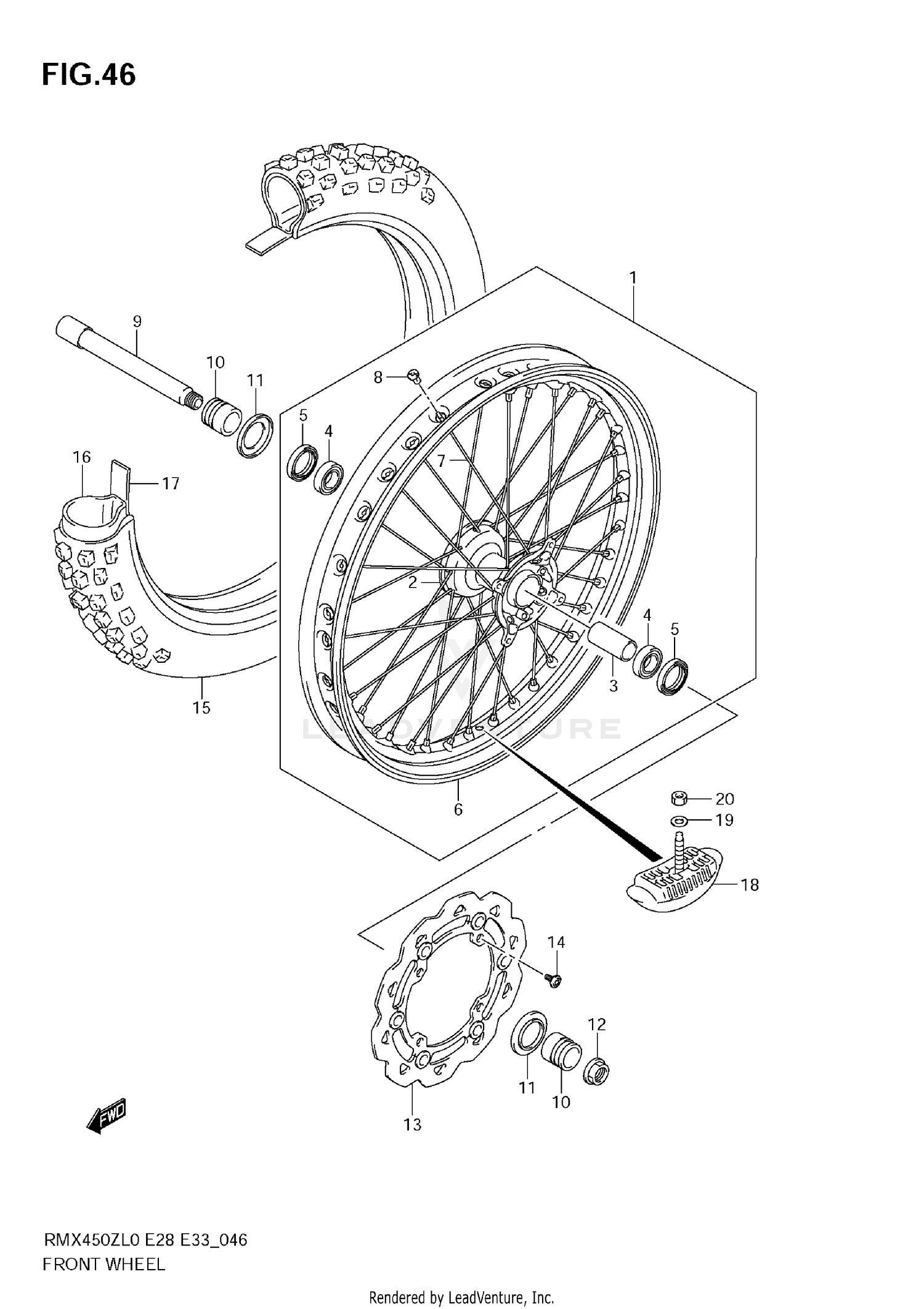

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL ASSY, FRONT
54100-02J00
|
$1,055.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB, FRONT WHEEL
54111-02J00
|
$173.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SPACER,FRONT HUB BEARING (20
54731-35G00
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (22X39X9)
09262-22034
Superseded by 09262-22048
|
$48.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL (30X40X7)
09283-30073
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM, FRONT WHEEL (1.60X21)
55311-10H00
|
$437.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPOKE,FRONT WHEEL
55321-35G10
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
NIPPLE, FRONT WHEEL
55325-35G00
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE,FRONT
54711-35G00
|
$125.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER,FRONT AXLE (L:41)
54741-35G00
|
$39.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,FRONT AXLE SPACER
54742-35G00
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-18016
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISC, FRONT BRAKE
59220-02J00
|
$427.86 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X13.5)
09139-06142
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, FRONT (80/100-21) (DUNLOP) 80/100-21 51M
55110-10H00
|
$403.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE ASSY,WHEEL INNER
55200-29F00
Superseded by 55200-29F01
|
$31.38 | ||
|
Unavailable |
|||
|
#17
PROTECTOR,WHL INR TUBE
55261-44AF0
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, BEAD
65270-14300
|
$56.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER,LOCK
08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08310-0008A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
