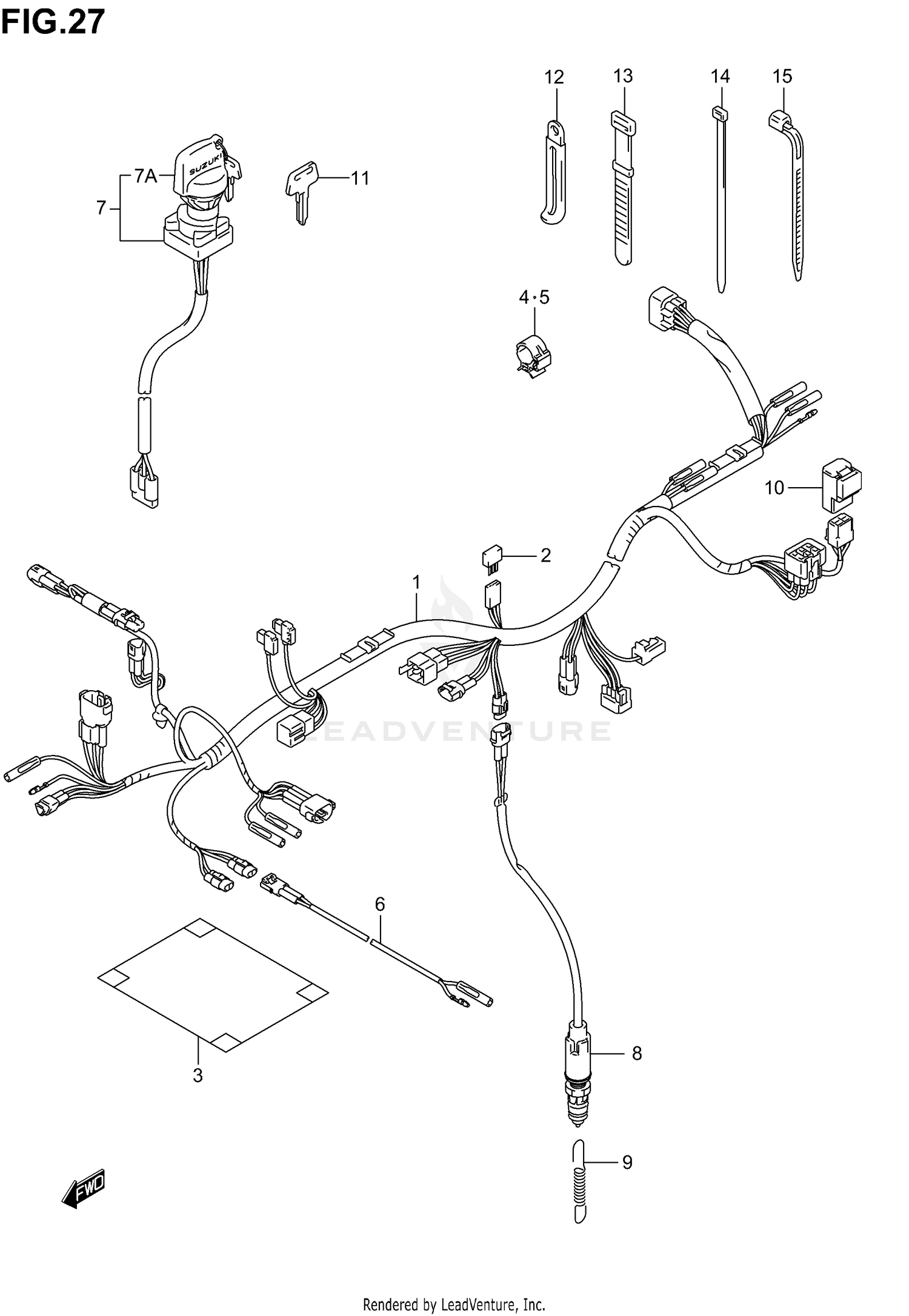

Wiring Harness (model K2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-05G00
|
$411.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER WIRING HARNESS
36618-15D20
Superseded by 36618-15D21
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP (ID:15)
09403-15405
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (ID:25)
09403-25401
|
$2.48 | ||
|
Unavailable |
|||
|
#6
WIRE,BRAKE SW L
36856-35B00
Superseded by 36856-35B01
|
$9.30 | ||
|
Unavailable |
|||
|
#7
SWITCH ASSY,IGN
37110-05G00
Superseded by 37110-05G02
|
$138.24 | ||
|
Unavailable |
|||
|
#7A
.MASCOT,KEY
37142-19B00
Superseded by 37142-19B01
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY,STOP LAMP
37740-38F00
Superseded by 37740-38F01
|
$124.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, STOP LAMP SWITCH
09443-06073
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, STOP LAMP SWITCH
09443-06012
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:C)
37146-19B00
|
$9.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:D)
37146-19B10
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:E)
37146-19B20
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY,BLANK (TYPE:F)
37146-19B30
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:120)
09407-12402
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
