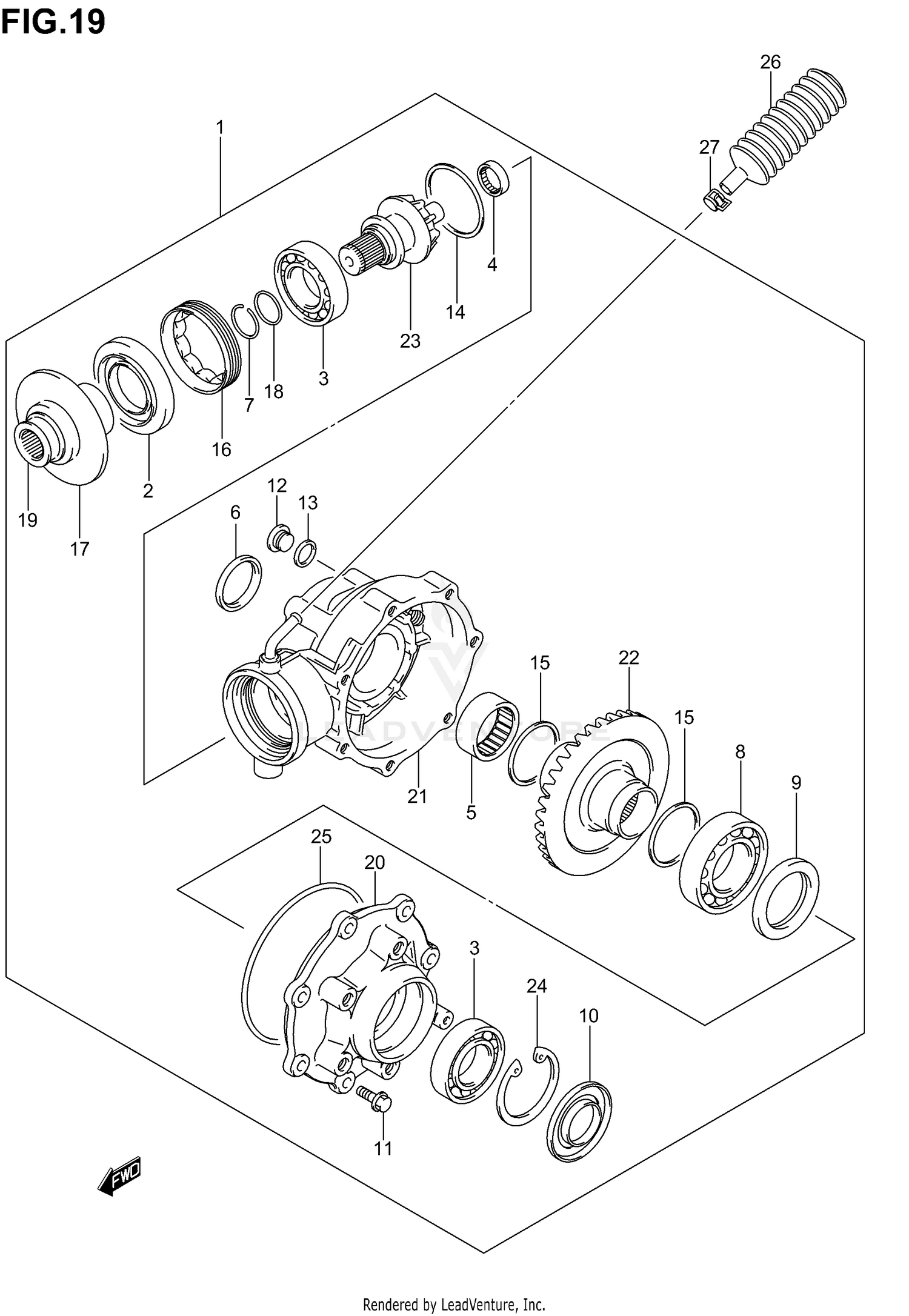

Final Bevel Gear (note) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY, REAR FINAL GEAR
27400-05G00
Superseded by 27400-05G10
|
$1,608.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL (35X69X8)
27406-05GA0
|
$30.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (30X62X16)
27405-05GA0
Superseded by 27405-05GF0
|
$78.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (15X23X16)
27405-05GB0
|
$52.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (45X52X20)
27405-05GC0
|
$74.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (45X55X7)
27406-05GB0
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
C RING (24X1.0)
27403-05GA1
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (45X75X16)
27405-05GD0
|
$97.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (42X62X7)
27406-05GC0
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (30X62X7)
27406-05GD0
Superseded by 27406-05GG0
|
$34.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
27401-05GA0
Superseded by 27401-05GC0
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
27409-05GA0
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
27407-05GA0
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM SET, FINAL DRIVE
27407-05810
|
$88.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM SET, FINAL DRIVEN
27407-05820
|
$244.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, BEARING
27312-05GA0
|
$85.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, OUTPUT OIL SEAL
27592-05GA0
|
$37.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING (D:2.0,ID:25.5)
27406-05GE0
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, JOINT
27591-05GA0
Superseded by 27591-05GA1
|
$106.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, FINAL GEAR LH
27461-05GA0
Superseded by 27461-05GA1
|
$244.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
CASE, FINAL GEAR RH
27450-05GA0
Superseded by 27450-05GA1
|
$598.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, FINAL DRIVEN BEVEL
27321-05GA0
|
$341.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, FINAL DRIVEN BEVEL
27311-05GA0
|
$255.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
27403-05GB0
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING (D:3.5,ID:130)
27406-05GF0
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE,BREATHER
27491-38F00
Superseded by 27491-38F10
|
$22.86 | ||
|
Unavailable |
|||
|
#27
CLAMP, BREATHER CASE
09401-08411
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
