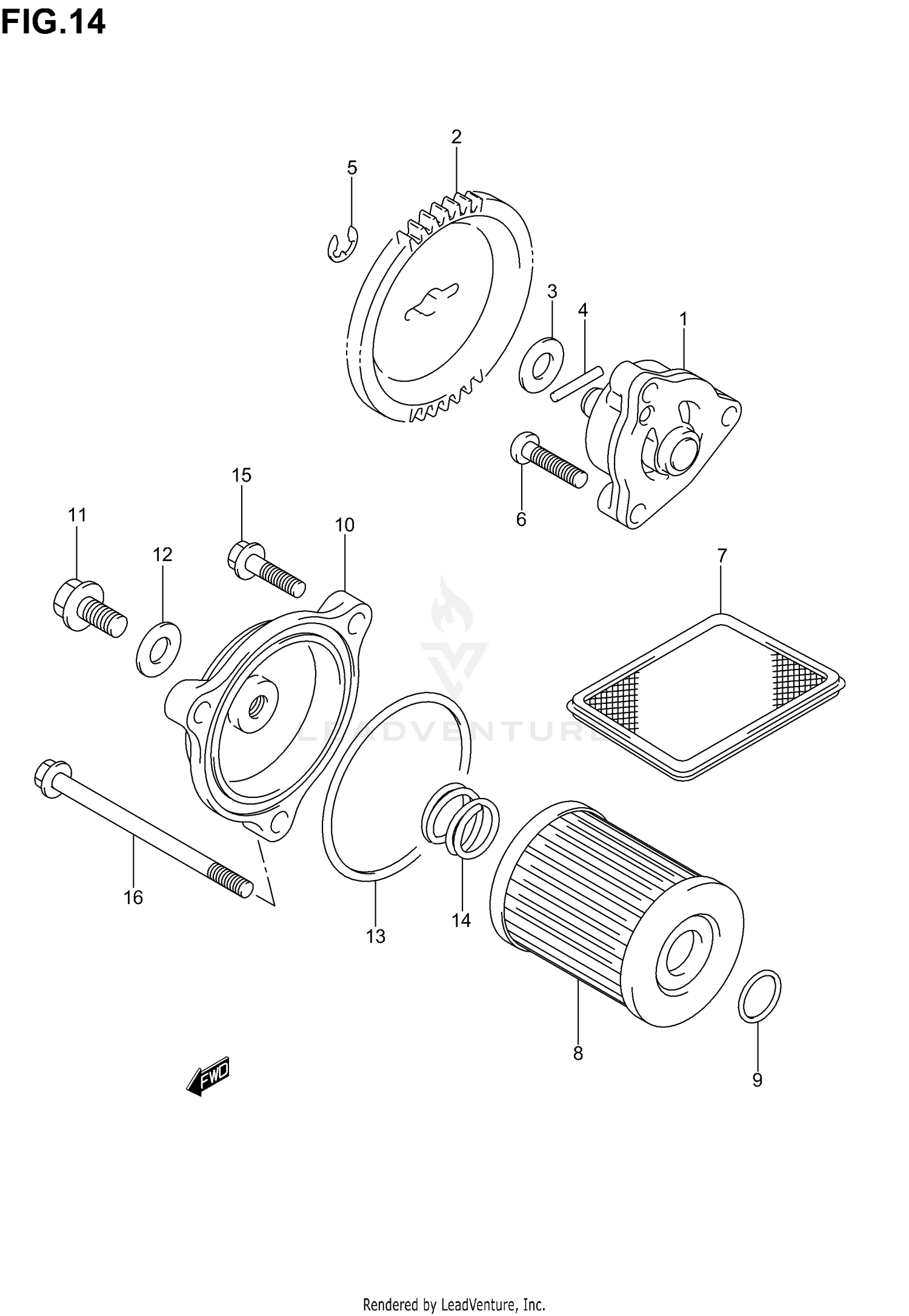

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP, ENGINE OIL
16400-01412
|
$169.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, DRIVEN (NT:47)
16331-05G00
|
$39.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PUMP DRIVEN GEAR
09181-08186
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09261-02001
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW
02112-06203
Superseded by 02112-0620A
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
STRAINER,ENGINE
16520-30A00
Superseded by 16520-30A01
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER, ENGINE OIL
16510-25C00
|
$9.36 | ||
|
Unavailable |
|||
|
#9
.O RING (D:1.9,ID:13)
09280-13004
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP, OIL FILTER
16512-05G00
|
$33.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
09168-08029
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING (D:2.4,ID:52.6)
09280-54001
|
$4.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING
09440-18002
|
$1.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
.BOLT
01547-06203
Superseded by 01547-0620B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-06803
Superseded by 01547-0680B
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
