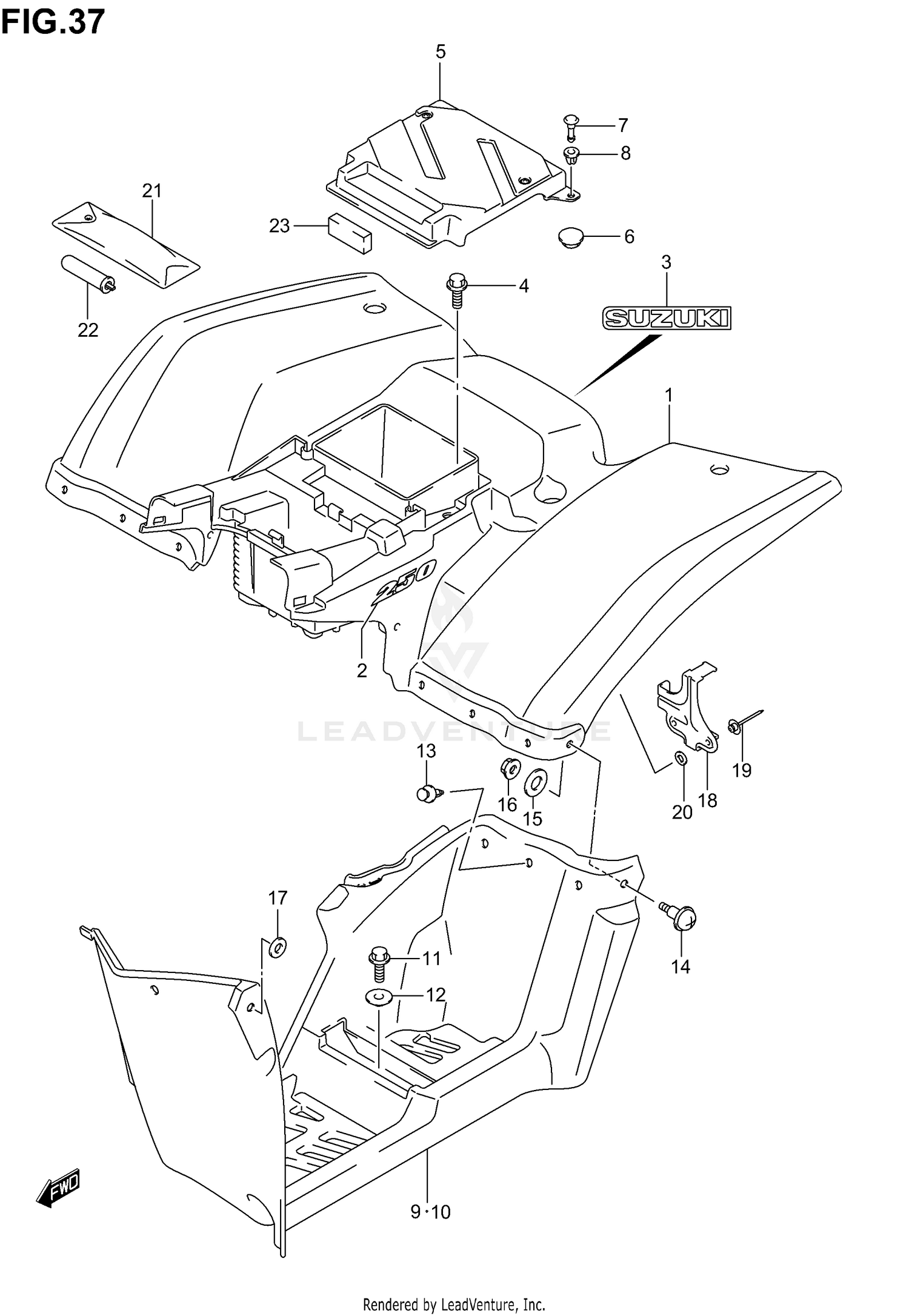

Rear Fender (model K2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (GREEN)
63111-05G00-YT8
Superseded by 63111-05G01-YT8
|
$437.00 | ||
|
Unavailable |
|||
|
#1
FENDER, REAR (RED)
63111-05G00-YT9
Superseded by 63111-05G01-YT9
|
$593.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR (YELLOW)
63111-05G00-YU1
Superseded by 63111-05G01-YU1
|
$407.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, "250"
68171-05G00-8YM
|
$10.25 | ||
|
Unavailable |
|||
|
#2
EMBLEM, "250"
68171-05G00-JY6
|
$10.87 | ||
|
Unavailable |
|||
|
#2
EMBLEM, "250"
68171-05G00-MW1
|
$8.80 | ||
|
Unavailable |
|||
|
#3
EMBLEM, "SUZUKI"
68171-44B00-HV6
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM, "SUZUKI"
68171-44B00-HV5
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM, "SUZUKI"
68171-44B00-HW1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM,SUZUKI
68171-03G20-20H
Superseded by 68171-03G21-20H
|
$16.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, REAR FENDER
63121-05G00
Superseded by 63121-05G10
|
$50.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP(OD:16)
09250-08007
Superseded by 09250-08020
|
$1.75 | ||
|
Unavailable |
|||
|
#7
CLIP
09409-08329
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
09409-08329
|
$2.88 | ||
|
Unavailable |
|||
|
#9
MUD GUARD, FOOTREST RH (BLACK)
63331-05G00-291
|
$203.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUD GUARD, FOOTREST LH (BLACK)
63341-05G00-291
|
$188.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09169-06076
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
09409-08335
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
09136-05038
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-05046
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT
09159-05043
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, FOOTREST SIDE
53341-38F00
Superseded by 53341-38F01
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, CDI UNIT
47413-05G00
Superseded by 47413-05G01
|
$9.32 | ||
|
Unavailable |
|||
|
#19
RIVET
09229-04020
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-01047
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
TOOL ASSY
09800-21044
Superseded by 09800-21093
|
$18.74 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE ASSY,AIR PRESSUR
96200-18A02
|
$63.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR (20X50X11)
33652-03G00
Superseded by 33652-31F00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
