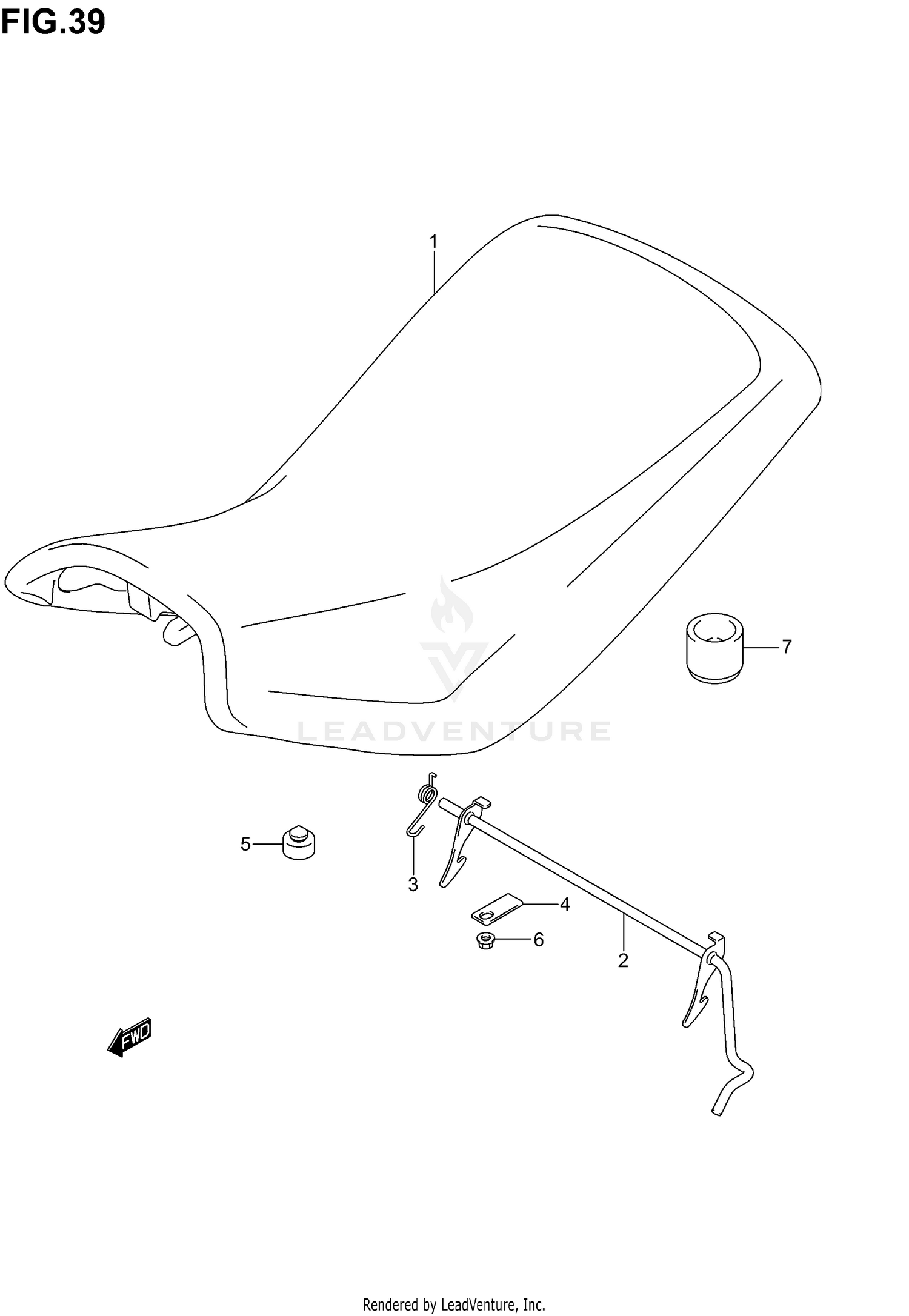

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY(BLACK
45100-05G01-P21
Superseded by 45100-05G22-P21
|
$453.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, SEAT LOCK
45210-05G01
|
$45.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, SEAT LOCK
45135-05G00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SEAT LOCK, L
45222-38F00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09321-10033
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
08316-10063
Superseded by 08316-1006B
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CUSHION, REAR
45141-05G01
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
