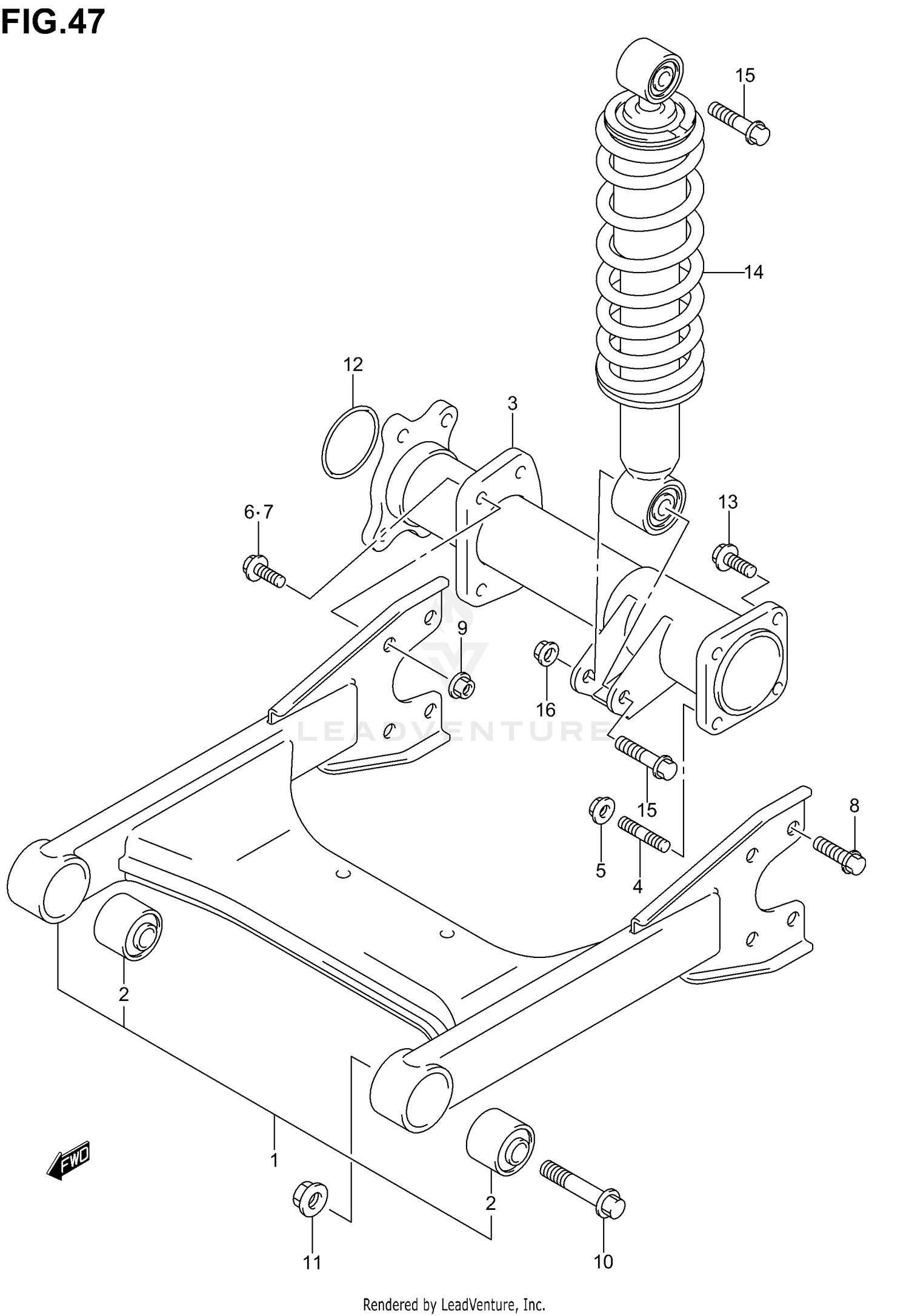

Rear Swingingarm (model K2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM SET, REAR
61100-05840
|
$324.12 | ||
|
Unavailable |
|||
|
#2
BUSH, PIVOT
61230-38F00
|
$46.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, RR AXLE, R
61300-05G00
Superseded by 61300-05G20
|
$377.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, RR AXLE, R
61300-05G10
Superseded by 61300-05G20
|
$377.23 | ||
|
Unavailable |
|||
|
#4
BOLT,STUD
01421-08258
Superseded by 01421-0825A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,STUD
01421-10253
Superseded by 01421-1025B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08316-10103
Superseded by 08316-1010B
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-10253
Superseded by 01550-1025A
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, RR SWGARM BRACKET, R
09103-10216
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-10253
Superseded by 01550-1025A
|
$3.77 | ||
|
Unavailable |
|||
|
#9
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, PIVOT
09103-12042
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, PIVOT
09159-12054
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING (D:3.1,ID:69.4)
09280-70005
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-10303
Superseded by 01550-1030A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER ASSY, REAR SHOCK (BLACK)
62100-05G00-019
|
$340.41 | ||
|
Unavailable |
|||
|
#14
ABSORBER ASSY,R
62100-05G10-019
Superseded by 62100-05G11-019
|
$386.08 | ||
|
Unavailable |
|||
|
#15
BOLT
09103-10126
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09103-10064
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-31107
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
