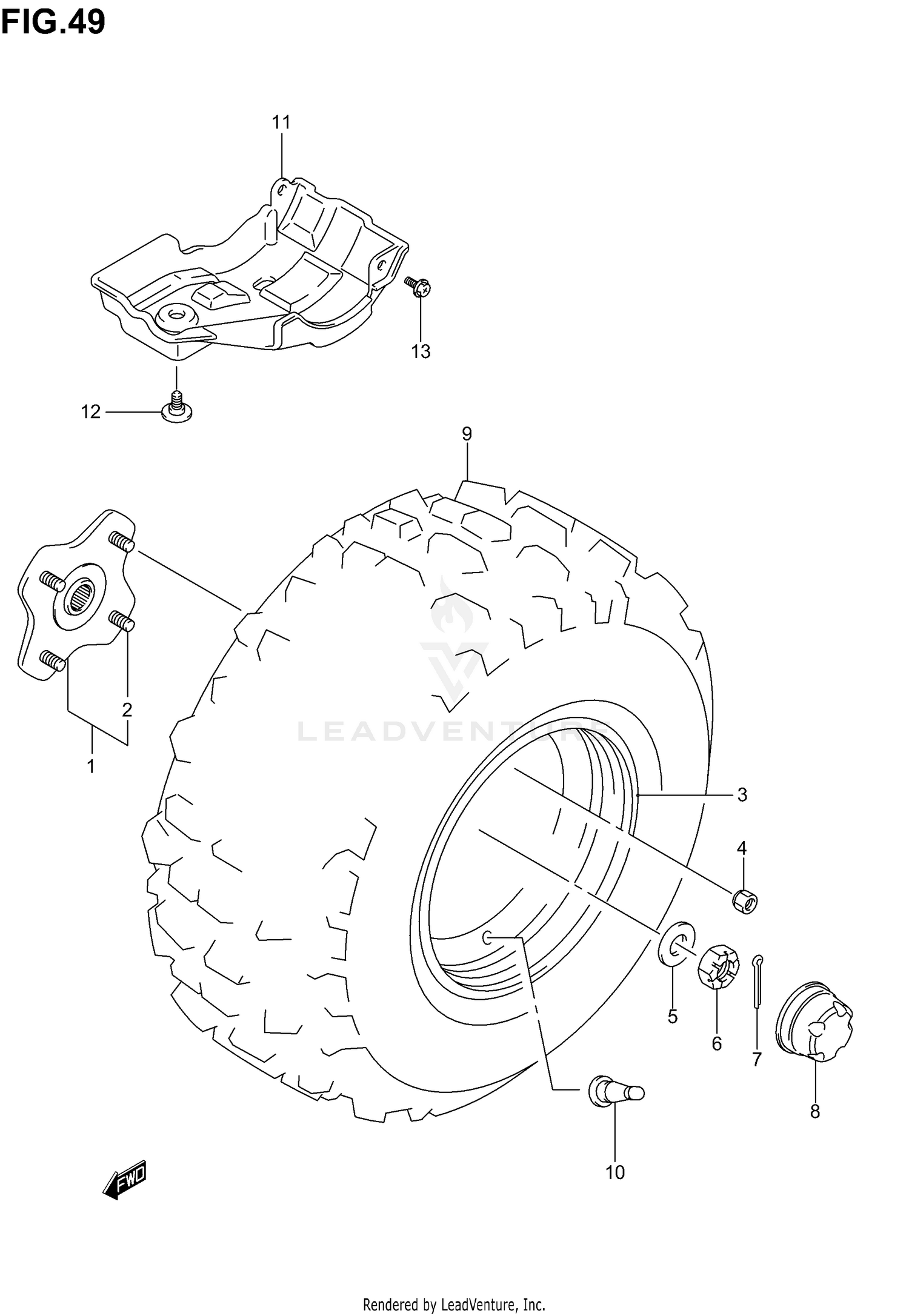

Left Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL LH
64110-05G00
|
$272.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X30)
09119-10049
Superseded by 09119-10049-XC0
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, REAR WHEEL (9X8.0AT) (SILVER)
65310-05G00-YL8
|
$364.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09140-10021
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09159-10114
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09164-18004
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, HUB
09141-18010
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
04111-40408
Superseded by 04111-4040A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,WHEEL CENTER
54725-09F01
|
$12.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
TIRE, REAR (AT22X10.9)
65110-05G00
Superseded by 65110-05G20
|
$229.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PROTECTOR, FINAL CASE
61391-05G01
|
$50.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FRONT
61393-09F00
Superseded by 61393-09F10
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X16.5)
09111-06061
Superseded by 09111-06094
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
