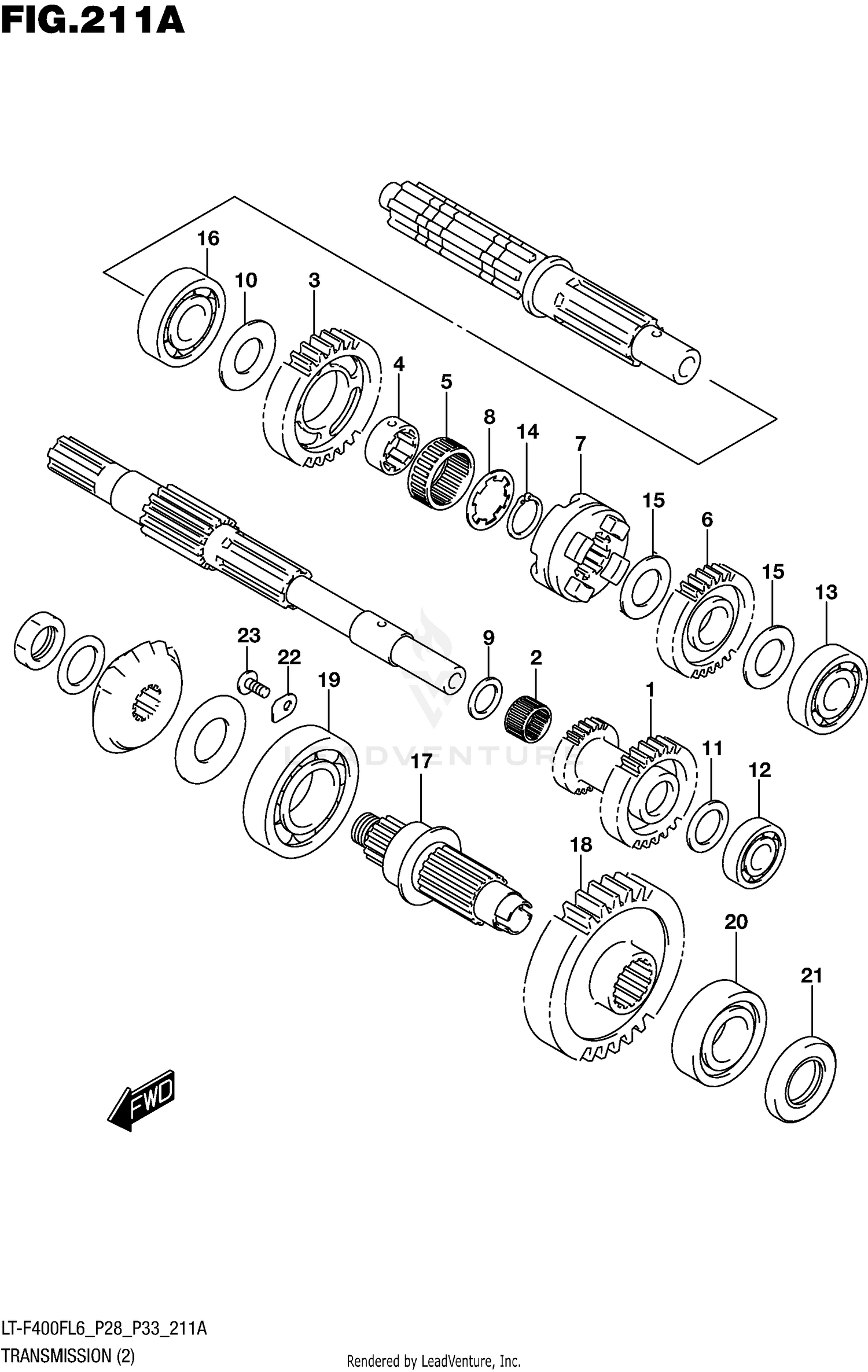

Transmission (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, SUB T/M IDLE (NT:13/19)
29150-27H00
|
|||
|
Unavailable |
|||
|
#2
BEARING (17X22X15.8)
09263-17045
|
|||
|
Unavailable |
|||
|
#3
GEAR, SUB T/M DRIVE NO.1
29211-38F80
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, SUB T/M DRIVE NO.1
29211-38F80
|
$192.09 | ||
|
Unavailable |
|||
|
#4
BUSH, SUB DRIVE NO.1
29215-38F80
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (30X35X16)
09263-30056
|
$37.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, SUB T/M DRIVE NO.2
29220-38F50
|
$145.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, SUB T/M DRIVE NO.2
29220-38F50
|
$145.28 | ||
|
Unavailable |
|||
|
#7
DOG, SUB T/M SLIDING
29231-38F80
|
$71.37 | ||
|
Unavailable |
|||
|
#8
LOCK WASHER
09167-25017
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-17282
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM (25X40X1)
09181-25251
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM (15X26X1)
09181-15195
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
09262-15022
Superseded by 09262-15062
|
$19.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (20X47X14)
09262-20139
|
$48.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08211-20301
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (25X52X14)
09262-25124
|
$49.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT, SUB T/M OUTPUT
29121-38F60
|
$137.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, SUB T/M DRIVEN (NT:35)
29311-38F60
|
$130.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (35X72X17)
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING (25X52X13)
09262-25136
|
$49.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,OIL (25X45X5)
09283-25076
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, SEC DRIVE SFT
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW (6X12)
09125-06122
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
