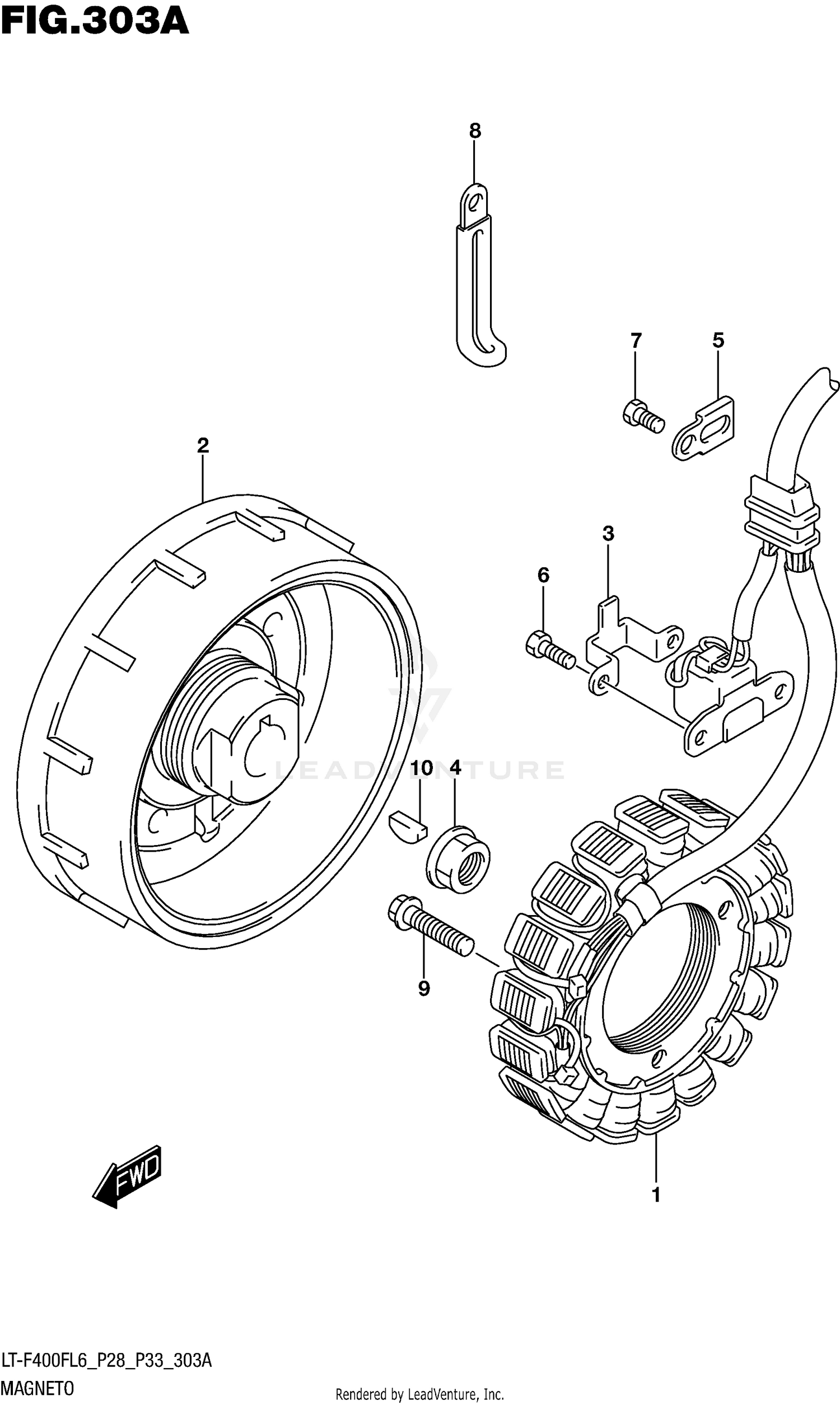

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-27H10
|
$886.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
32102-27H10
|
$905.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, MAGNETO LEAD NO.1
31497-45000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,MAGNETO ROTOR
31792-11H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, MAGNETO LEAD NO.2
32371-32E00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (5X10)
09100-05019
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (5X10)
09100-05019
|
$2.11 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#9
BOLT
01547-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY
09420-05007
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
