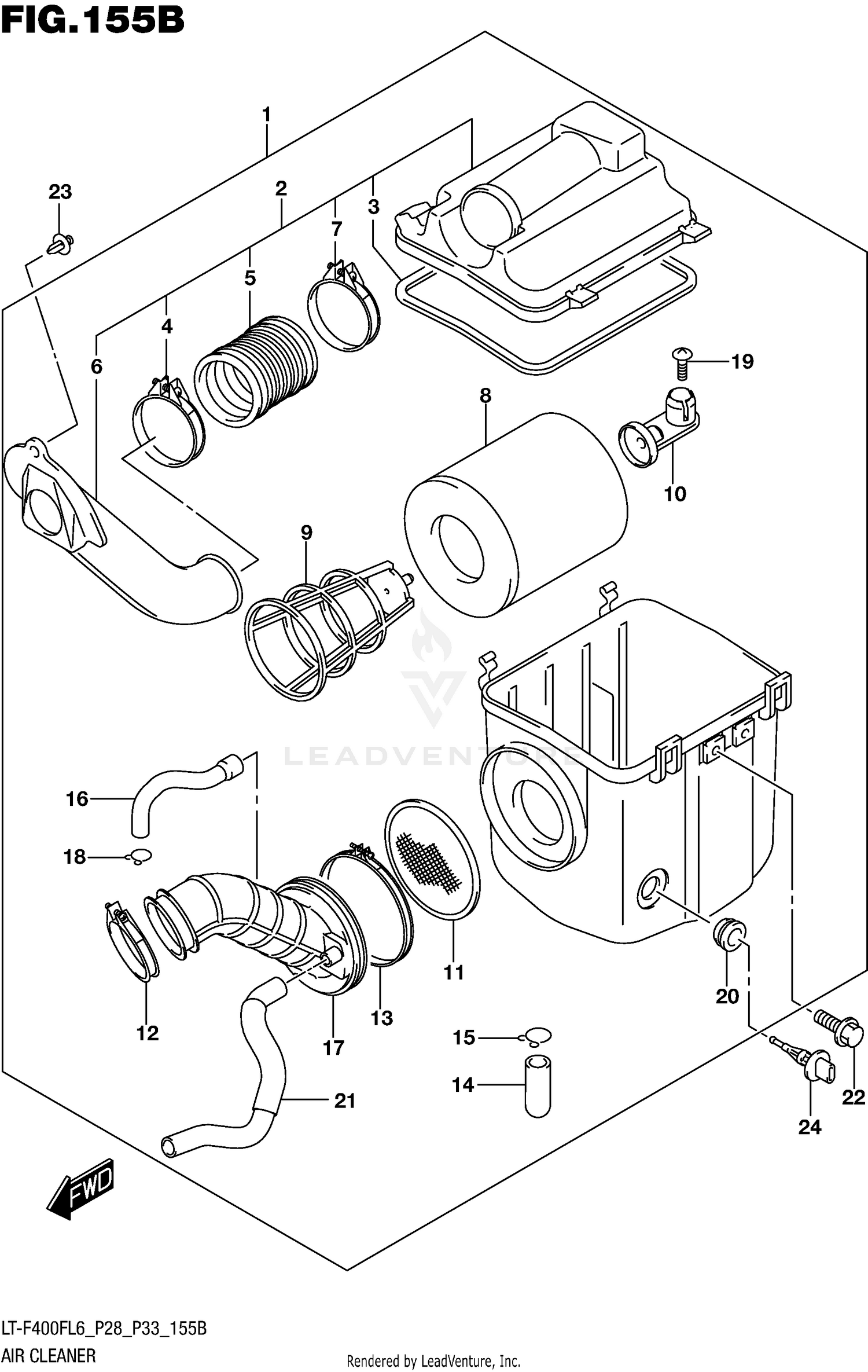

Air Cleaner (lt-f400fl6 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY,AIR
13700-27H40
Superseded by 13700-27H41
|
$226.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
.INLET, AIR CLEANER
13890-27H00
|
$84.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
..GASKET
13746-03G00
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
..CLAMP
13826-38F20
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
..JOINT,INLET
13891-03G00
Superseded by 13891-03G01
|
$17.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
..DUCT, INLET
13896-27H00
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
..CLAMP
09402-60208
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
.FILTER
13780-07G00
|
$39.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.HOLDER
13791-03G00
|
$11.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.STOPPER, HOLDER
13792-03G00
|
$9.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.TRAP,FLAME
13810-03G00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLAMP
13826-27H20
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CLAMP, OUTLET TUBE
13826-38F10
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLUG,DRAIN
13878-09F00
Superseded by 13878-09F01
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CLIP
09401-14101
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
.TUBE, BREATHER
13853-27H20
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
.TUBE, OUTLET
13881-27H40
|
|||
|
Unavailable |
|||
|
#18
.CLIP
09401-14101
|
$2.95 | ||
|
Unavailable |
|||
|
#19
.SCREW
02142-0616A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
.GROMMET,AIR TEMP SENSOR
13655-77E00
Superseded by 13655-77E10
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
.TUBE, 2ND AIR
13857-27H40
|
|||
|
Unavailable |
|||
|
#22
BOLT (6X12)
09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SENSOR, AIR TEMP
13650-52G00
|
$131.80 | ||
|
Available to order. Add to View Price |
|||
