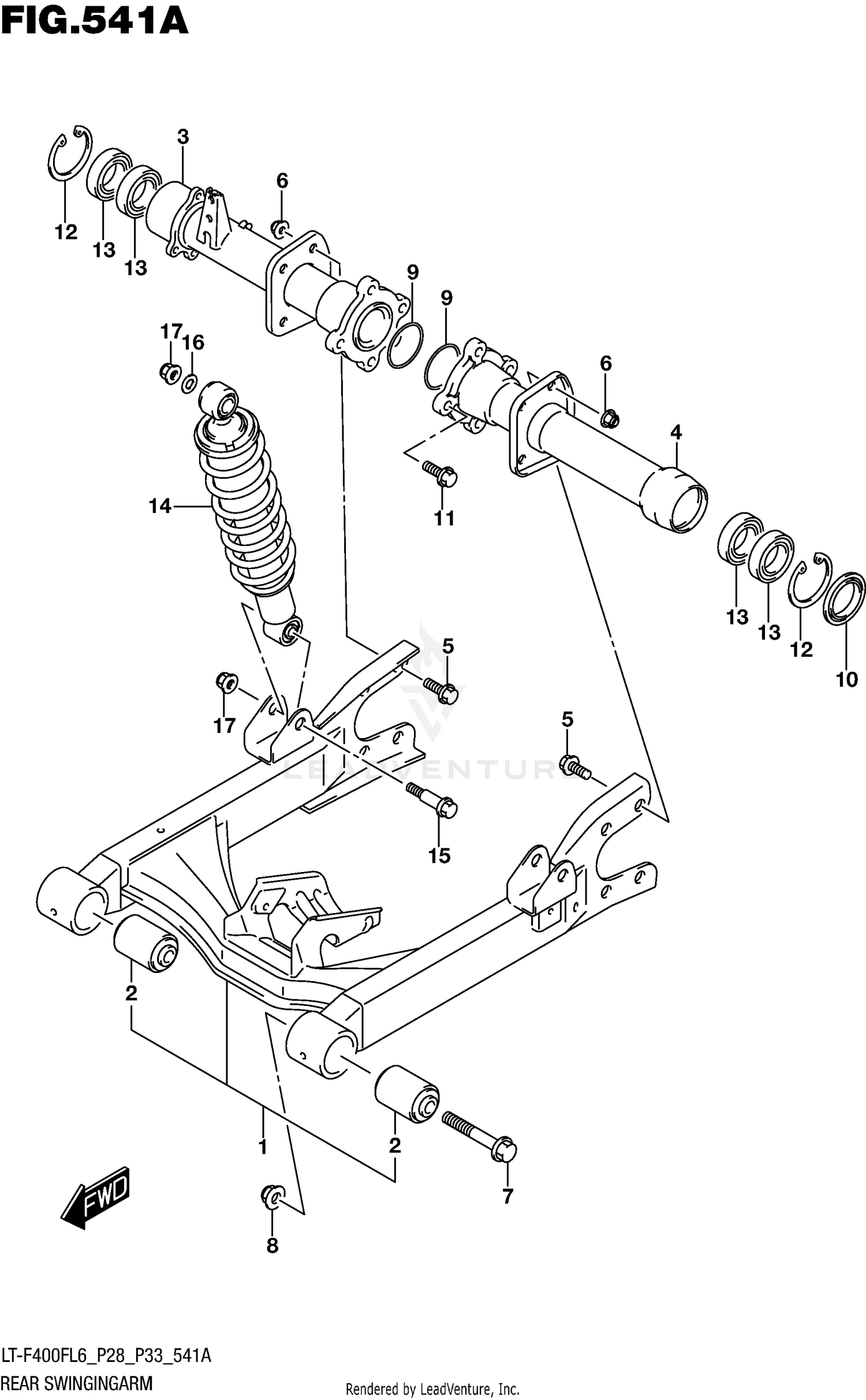

Rear Swingingarm (lt-f400fl6 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM SET,REAR
61101-27850
|
$318.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BUSH, PIVOT
61230-27H00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING,RR AXLE,R
61300-27H00
Superseded by 61300-27H10
|
$479.76 | ||
|
Unavailable |
|||
|
#4
HOUSING, REAR AXLE LH
61400-27H00
|
$260.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (10X20)
09103-10216
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (12X80)
09113-12002
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-12054
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:3.1,ID:69.4)
09280-70005
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (38X55X9)
09283-38022
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (10X30)
09103-10421
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
08331-41559
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
08123-60067
|
$36.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER ASSY, REAR SHOCK
62100-27H10-019
|
$221.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER ASSY, REAR SHOCK
62100-27H10-019
|
$221.65 | ||
|
Unavailable |
|||
|
#15
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (10.5X30X2.3)
09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08319-3110B
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
