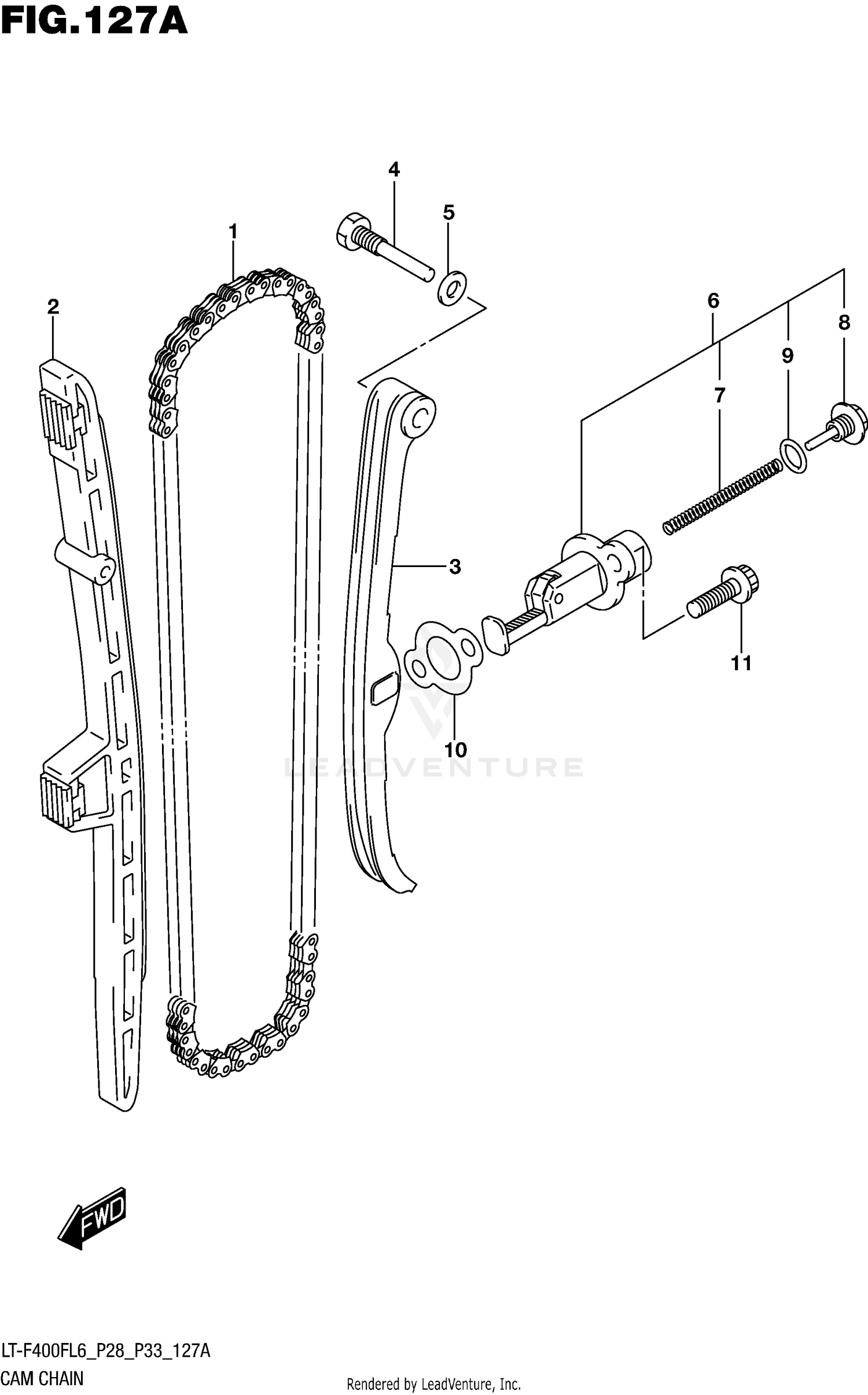

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM (108LE)
12760-19B71
|
$112.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-27H00
Superseded by 12771-27H01
|
$46.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER,CAM CHAIN
12811-14D10
Superseded by 12811-14D11
|
$68.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,CAM CHAIN TENSIONER
12812-32400
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ADJUSTER ASSY, TENSIONER
12830-29B11
|
$136.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
12833-29B00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PLUG, ADJUSTER
12834-26B00
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O-RING
12832-02A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET,TENSIONER ADJUSTER
12837-14D00
Superseded by 12837-19B10
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
