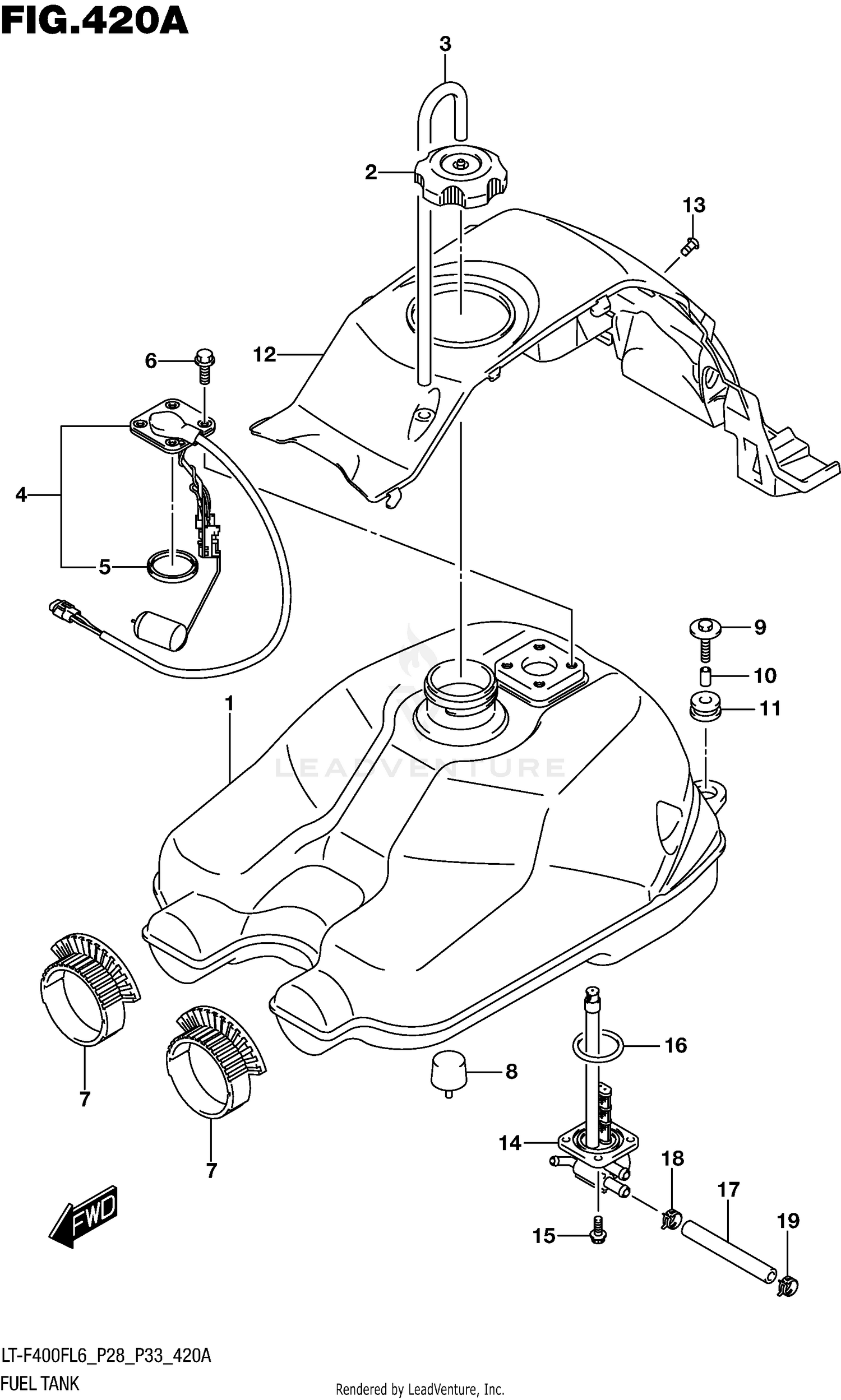

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-27HB1
Superseded by 44100-27HB2
|
$631.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY,FUEL TANK FILLER
44200-29F00
Superseded by 44200-29F01
|
$49.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GAUGE ASSY,FUEL
34810-27H00
Superseded by 34810-27H03
|
$158.20 | ||
|
Unavailable |
|||
|
#5
.PACKING,FUEL LEVEL GAUGE
34825-03A00
Superseded by 34825-03A01
|
$9.11 | ||
|
Unavailable |
|||
|
#6
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,FUEL TANK FR
44511-38F00
Superseded by 44511-38F01
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK LWR
44543-38F00
Superseded by 44543-38F01
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X30)
09116-06050
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X10X14)
09180-06293
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,REAR
44281-03G00
Superseded by 44281-03G01
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,FUEL TANK UPPER (BLACK)
44271-27HA1-291
Superseded by 44271-27HA2-291
|
$39.53 | ||
|
Unavailable |
|||
|
#13
BOLT (5X13)
09139-05085
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
COCK ASSY,FUEL
44300-27HC0
Superseded by 44300-27HB0
|
$413.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
07120-0612A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING, OUTLET
44348-33H00
|
$29.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, FUEL
44421-27HA1
Superseded by 44421-27HA2
|
$46.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
09401-12405
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09401-12410
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
