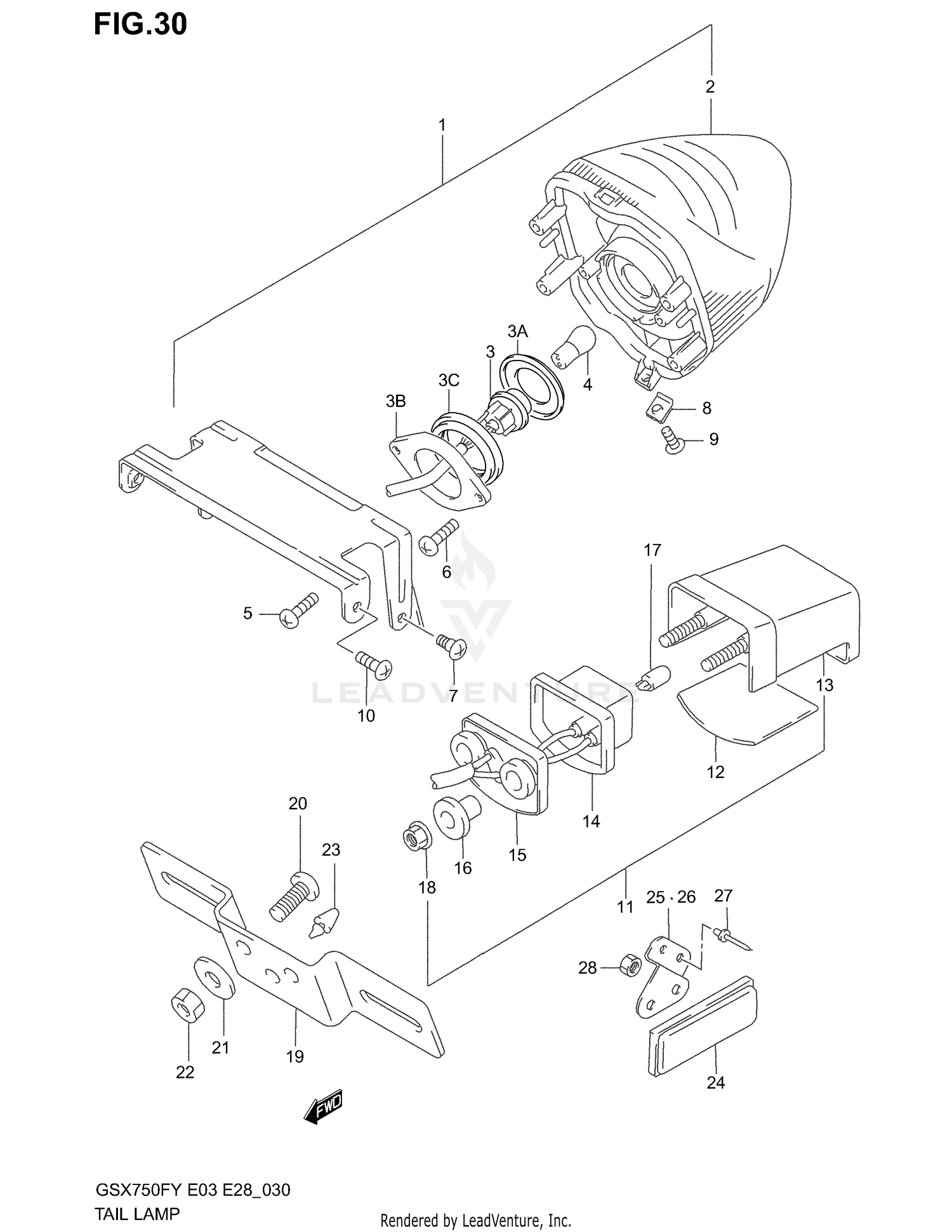

Tail Lamp (model W/x/y/k1/k2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-08F30
|
$151.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP UNIT
35720-08F30
|
$89.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET & CORD
35718-08F00
|
$42.03 | ||
|
Available to order. Add to View Price |
|||
|
#3A
PLATE, NO.1
35716-48B21
|
$22.83 | ||
|
Available to order. Add to View Price |
|||
|
#3B
PLATE, NO.2
35736-48B21
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#3C
CUSHION
35765-48B21
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03211-05163
Superseded by 03211-0516A
|
$1.10 | ||
|
Unavailable |
|||
|
#6
SCREW
03211-04163
Superseded by 03211-0416A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (5X12.8)
09139-05057
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, REAR COMB. UNDER
09148-05038
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
03241-15163
Superseded by 03241-1516A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
LAMP ASSY, LICENSE
35910-08F00
|
$155.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS
35912-08F00
|
$12.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER
35917-08F00
|
$64.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOUSING
35915-08F00
|
$9.15 | ||
|
Unavailable |
|||
|
#15
SOCKET & CORD
35918-08F00
|
$19.21 | ||
|
Unavailable |
|||
|
#16
SPACER
35766-08F00
|
$3.08 | ||
|
Unavailable |
|||
|
#17
.BULB (12V5W)
09471-12081
Superseded by 09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET,LICENSE PLATE
35927-26E30
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION
09321-06028
Superseded by 09321-06038
|
$2.05 | ||
|
Unavailable |
|||
|
#24
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, REAR SIDE RH
35975-08F00
|
$6.55 | ||
|
Unavailable |
|||
|
#26
BRACKET, REAR SIDE LH
35976-08F00
|
$6.55 | ||
|
Unavailable |
|||
|
#27
RIVET, REAR SIDE
09229-04020
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
